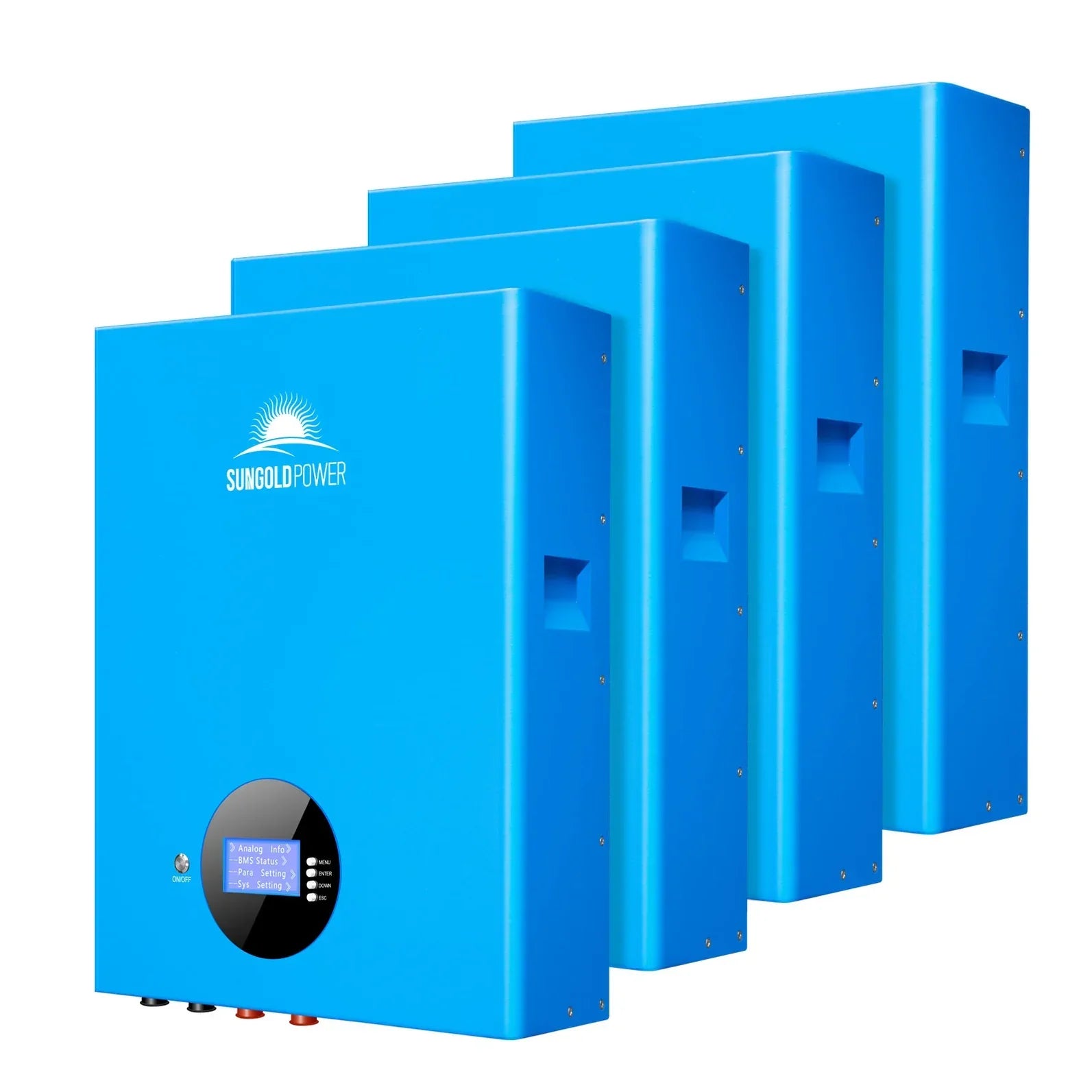

SunGold Power 5.12KWH Powerwall LiFePO4 Lithium Battery UL1973 - SG48100M

SunGold Power 5.12KWH Powerwall LiFePO4 Lithium Battery UL1973 - SG48100M

Highlight

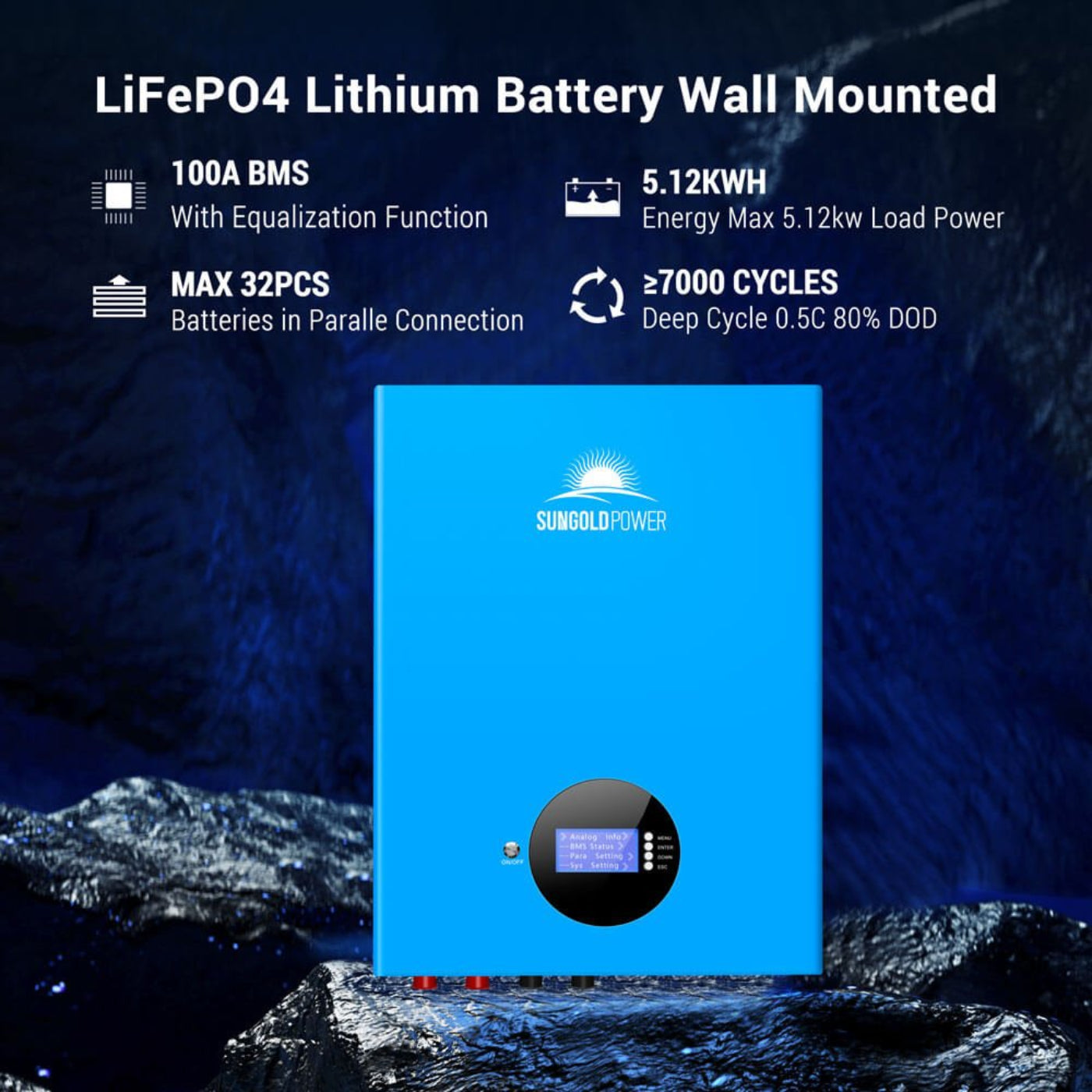

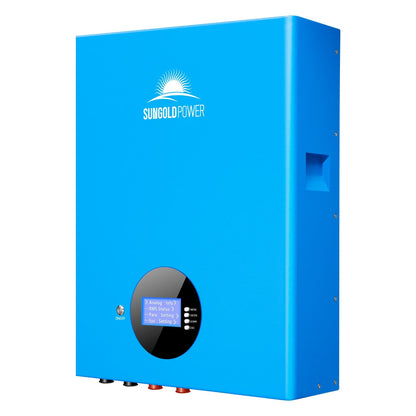

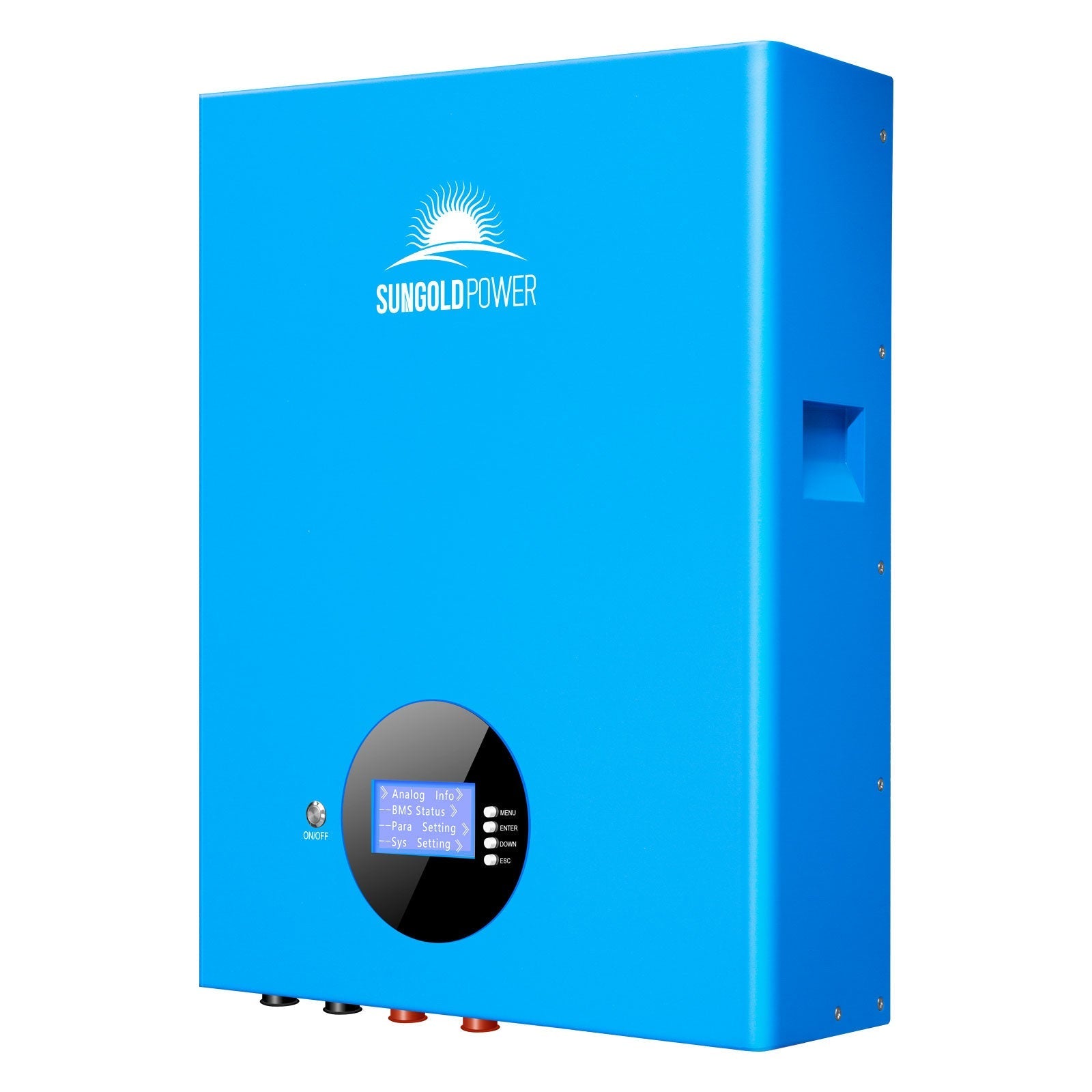

• Character: The 51.2V 100AH LFP Battery is compact, well-designed, LCD, and cable/accessories ready for installation. ≥7000 cycles deep cycle 10 years warranty, designed for up to 15-year life,UL1973.

• Intelligent BMS :Battery Management System can manage and monitor cells information including voltage, current and temperature, protects it from overcharge, deep discharge, overloading, overheating and short circuit, help to extend lifetime.

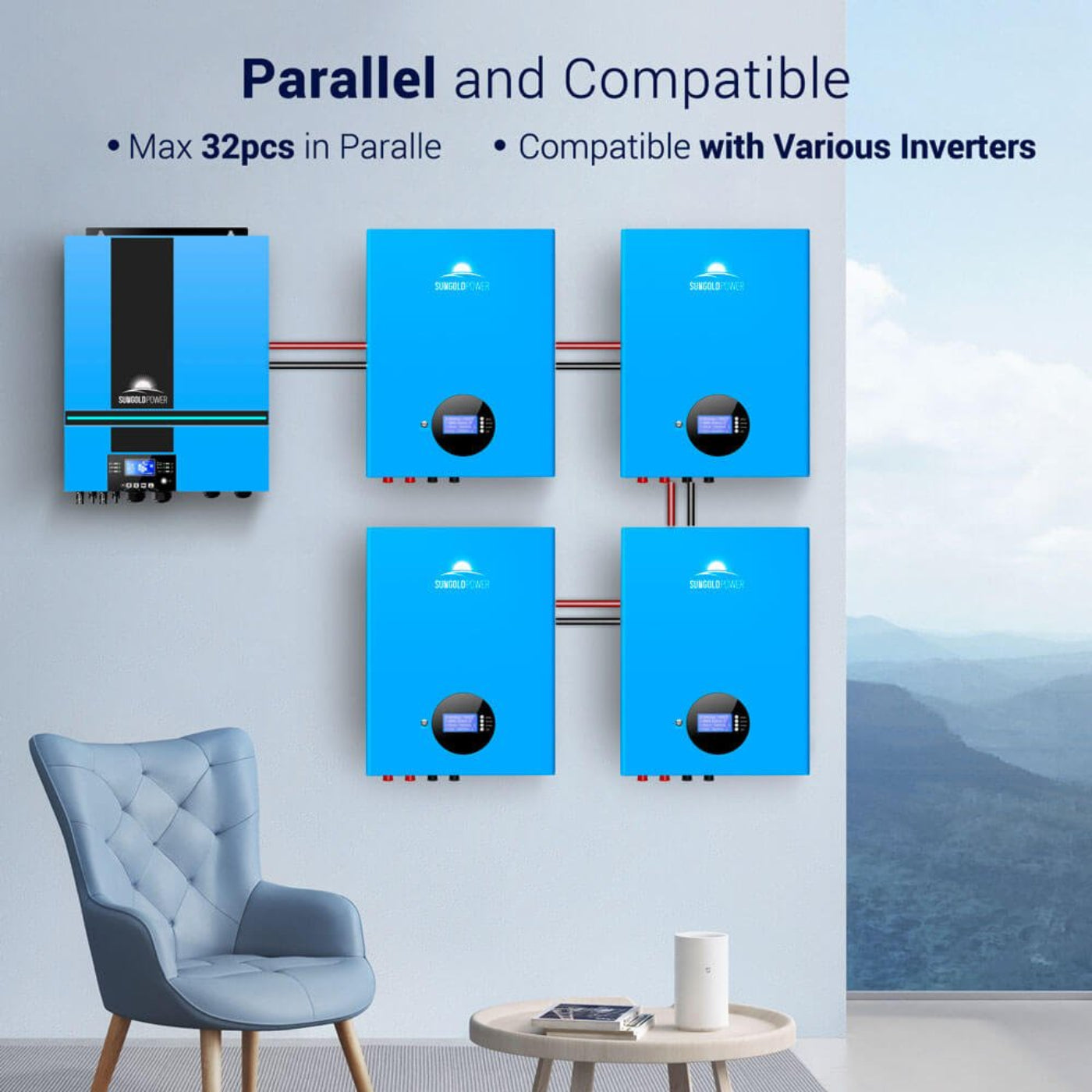

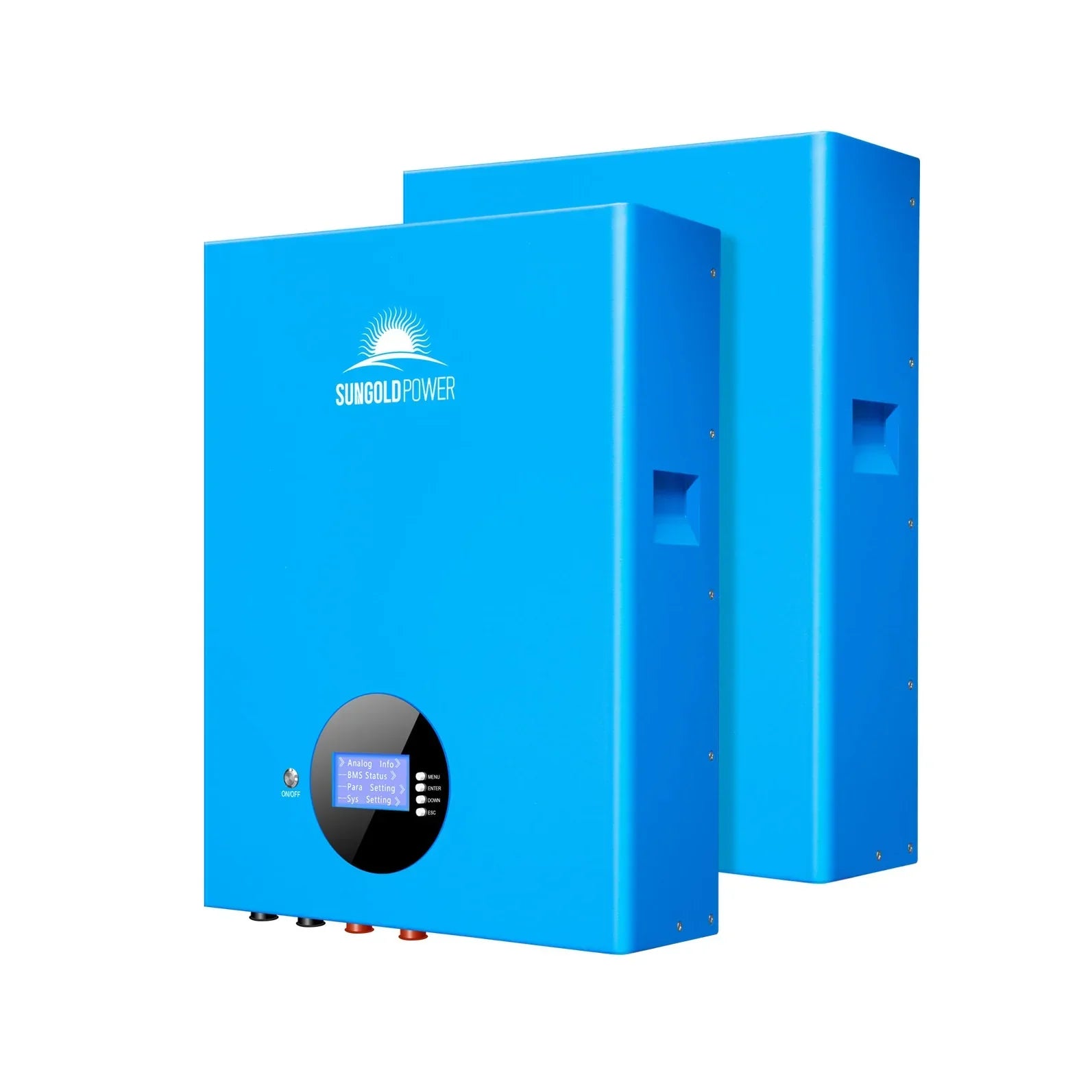

• Flexible : Modular design, easy to expand, max 32 units in parallel capacity of 163.84kwh, suitable to residential and commercial applications and other energy storage system for increasing the self-consumption ratio.

• Compatible: CAN/RS485/RS232 Communication Protocol Lithium Ion Battery can be compatible with most inverters in the market, such as Growatt, Deye, SunGoldPower, Luxpower, Victron energy, Schneider, Phocos, SMK and so on.

What our Experts Think

• 5.12 kWh LiFePO4 Capacity – Reliable, long-lasting energy storage for home or small commercial use.

• Advanced Lithium Technology – Safe, high-performance LiFePO4 chemistry for deep cycling and durability.

• UL1973 Certified – Meets rigorous safety and quality standards for stationary energy storage.

• Compact & Modular Design – Easy integration with solar systems or standalone setups.

• High Efficiency – Optimized charge/discharge rates for maximum energy utilization.

• User-Friendly Operation – Simple monitoring and management via compatible apps or controllers.

Q&A

Q: What is this battery?
A: A 5.12 kWh LiFePO4 Powerwall battery from SunGold Power with UL1973 safety certification, designed for solar energy storage, backup power, and scalable energy systems.

Q: What battery technology does it use?
A: Uses Lithium Iron Phosphate (LiFePO₄) chemistry for enhanced safety, thermal stability, long life, and deep cycle performance.

Q: What are the capacity and electrical specs?
A: 5.12 kWh total energy (51.2 V, 100 Ah) with continuous charge/discharge rate ~50 A and supports up to 32 units in parallel for expanded capacity up to ~163.8 kWh.

Q: How long does it last?
A: Built for over 7,000 charge cycles and a 15+ year design life under proper conditions.

Q: What safety and certifications does it have?
A: Certified UL1973, along with CE and UN38.3, ensuring compliance with safety standards for energy storage systems.

Q: Can it integrate with solar or backup systems?
A: Yes — modular & scalable, compatible with most hybrid inverters (supports RS232/RS485/CAN protocols) and ideal for home, commercial, off‑grid, or backup power setups.

Q: What’s included and how is installation?

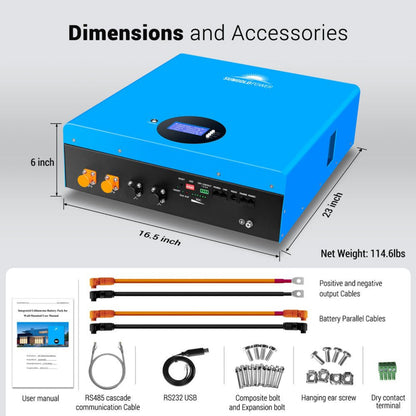

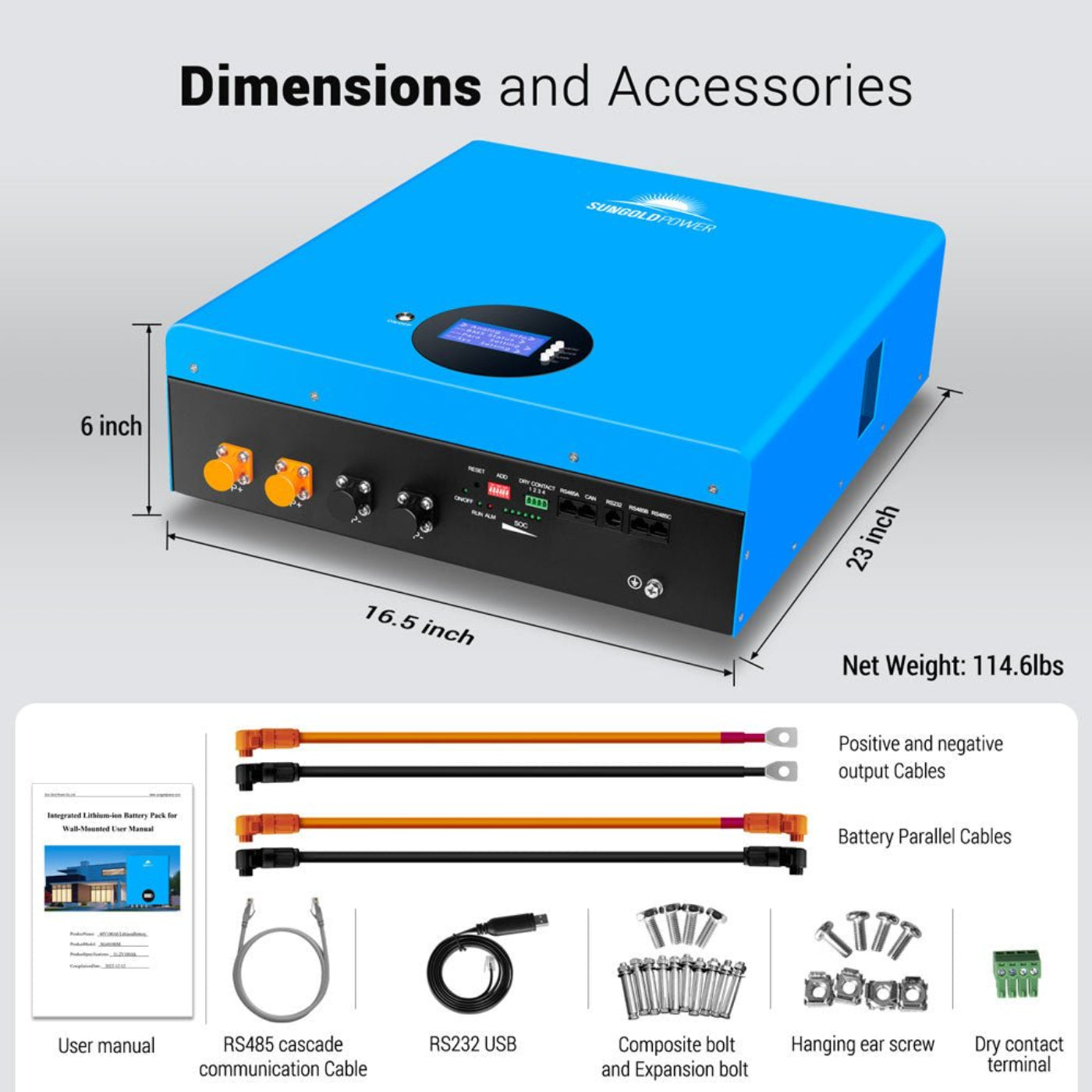

A: Compact wall‑mountable design with LCD display, ready‑to‑install cables, and parallel wiring options (cables included).

Q: Typical applications?
A: Home solar storage, emergency backup power during outages, off‑grid energy systems, and scalable commercial energy storage arrays.

Maintenance Tips

• Regular Monitoring: Check battery status and charge levels via the management system.

• Temperature Control: Keep the battery in a well-ventilated area, avoiding extreme heat or cold.

• Clean Terminals: Inspect and clean terminals periodically to prevent corrosion.

• Avoid Deep Discharge: Maintain charge above the manufacturer’s minimum to prolong lifespan.

• Periodic Inspection: Check casing and connections for damage or loose wiring.
