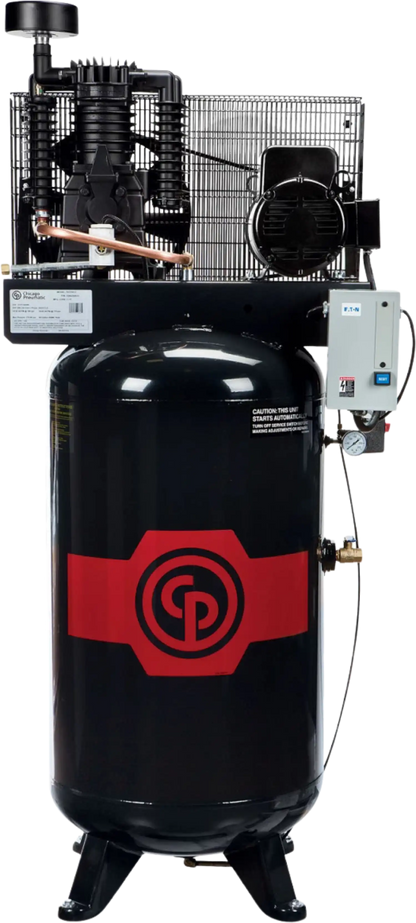

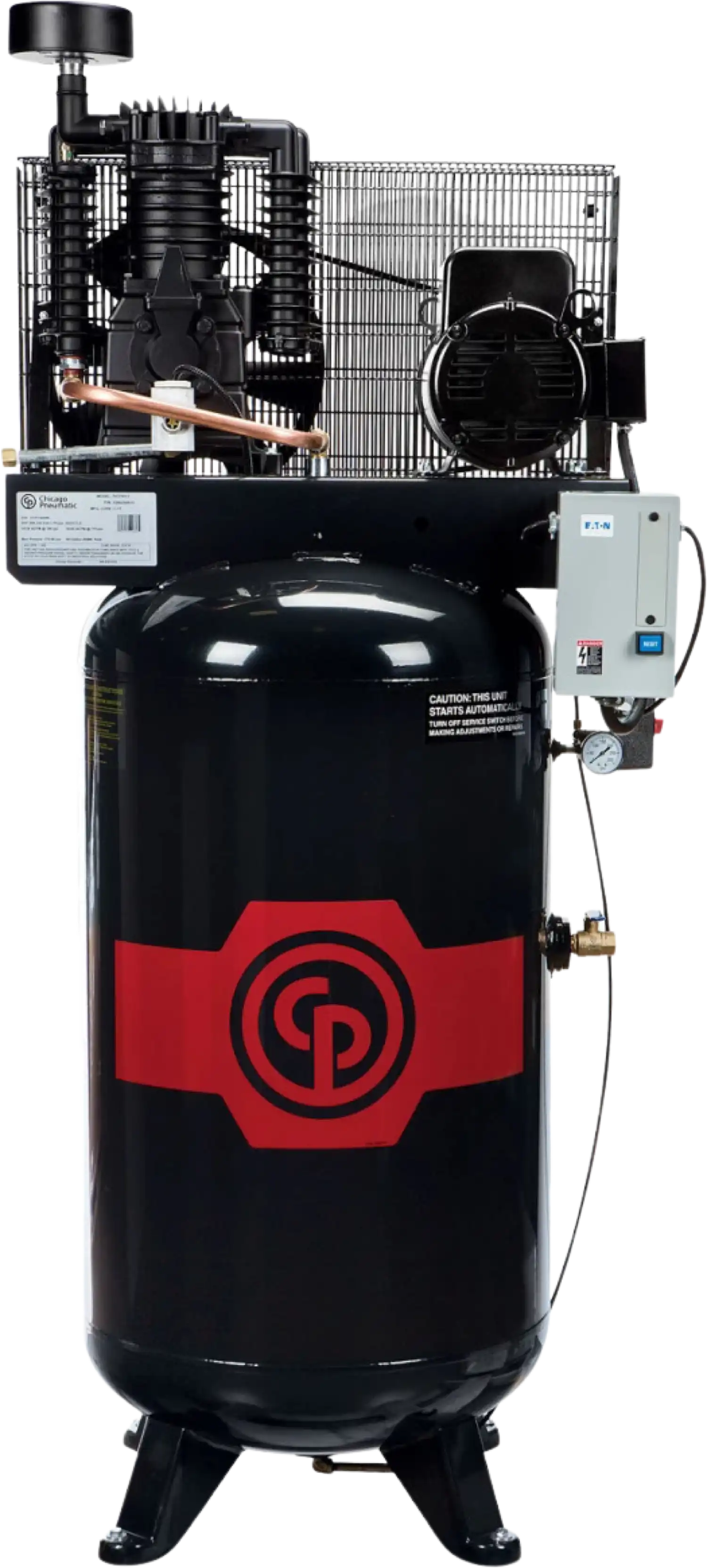

Chicago Pneumatic RCP-7583VS4 Air Compressor 7.5HP 80 Gal. Two Stage 3-Phase 460V New - 2021119394

Chicago Pneumatic RCP-7583VS4 Air Compressor 7.5HP 80 Gal. Two Stage 3-Phase 460V New - 2021119394

Chicago Pneumatic's RCP compressors are designed for durability and performance, with solid cast iron cylinder, crankshaft and valve plates, providing the strength that is required for everyday use. Aluminum head and coolers with deep fins allow for unmatched heat dissipation. Balanced pistons and crankshaft provide smoother and quieter operation. Featuring oversized main bearings and automotive style replaceable insert bearings for a durable compressor pump. All units are 100% tested at full pressure.

What our Experts Think

• Commercial‑grade two‑stage power
  The Chicago Pneumatic RCP‑7583VS4 Air Compressor 7.5 HP 80 Gal. Two Stage 3‑Phase 460 V (2021119394) is engineered for industrial and heavy workshop use, combining a 7.5 HP motor with a two‑stage pump for strong, reliable air delivery across demanding applications. Two‑stage designs boost efficiency and provide higher pressure capacity than single‑stage models.
• Ample airflow & pressure for tools
  With around 25.3 CFM @ 100 PSI and up to 175 PSI, this compressor supports multiple pneumatic tools and continuous use without frequent cycling—suitable for automotive, fabrication, or maintenance environments.
• Robust, industrial‑ready construction
  Built with solid cast iron cylinders, balanced pistons, and a belt‑driven pump, it’s designed for durable performance and long service life in tough conditions.
• Large 80 gal ASME vertical tank
  The sizable receiver offers a steady air reserve, reducing on/off cycling, smoothing output, and helping tools perform more consistently with less downtime.
• Professional 460 V three‑phase power
  Operating on 3‑phase 460 V, this unit delivers stable energy efficiency and stronger torque, ideal for industrial electrical systems.
• Safety & maintenance features
  Includes start/stop pressure switch, magnetic starter, ASME safety valves, discharge valve, and manual tank drain, supporting safe operation and straightforward upkeep.

Q&A

Q1: What type of air compressor is this?
A: It’s a 7.5 HP industrial two‑stage piston air compressor with a cast iron pump and 80‑gallon vertical ASME‑certified tank, built for continuous shop and industrial duty.

Q2: What are its motor and power specs?
A: Powered by a 7.5 HP three‑phase 460 V motor, it’s ideal for workshops, garages, manufacturing facilities, and heavy‑duty compressed air applications.

Q3: How much air does it produce?
A: Delivers around 25.3 CFM @ 100 PSI with a maximum working pressure of ~175 PSI, giving strong airflow for pneumatic tools and continuous tasks.

Q4: What key construction features does it have?
A: Features a solid cast iron pump with deep‑fin aluminum coolers for efficient heat dissipation, disc & spring valves, oversized bearings, and a forged crankshaft for durability and long life.

Q5: What standard equipment is included?
A: Includes start/stop pressure switch control, magnetic motor starter, manual tank drain, discharge valve, ASME tank & safety valves, and fully enclosed belt guard for safe, reliable operation.

Q6: What are the physical specs?
A: The vertical design measures ~39″ L × 24″ W × 77″ H, weighs around 467 lbs, and saves floor space while providing ample compressed air capacity.

Q7: Is this compressor ready to run?
A: Yes — the pump comes pre‑filled with oil and “plug‑and‑play” ready to connect to 460 V power, simplifying installation.

Maintenance Tips

• Daily Checks: Inspect oil level, pressure gauges, hoses, and fittings before use.
• Oil Service: Change compressor oil every 500 hrs or per manual; use OEM‑recommended oil.
• Air Filter: Clean/replace intake filter every 250–500 hrs to maintain airflow and efficiency.
• Drain Tank: Drain moisture from the 80 gal tank daily to prevent corrosion.
• Belts & Couplings: Inspect belts for wear and proper tension monthly; replace as needed.
• Cooler Cleaning: Keep intercooler and aftercooler fins free of debris for optimal cooling.
• Electrical: Check motor connections and capacitors quarterly; ensure proper voltage.
• Safety Valves: Test safety relief valves periodically to ensure proper operation.
• Record Keeping: Log maintenance dates and hours to extend life and improve resale value.
• Professional Service: Schedule annual professional inspection for comprehensive performance checks
