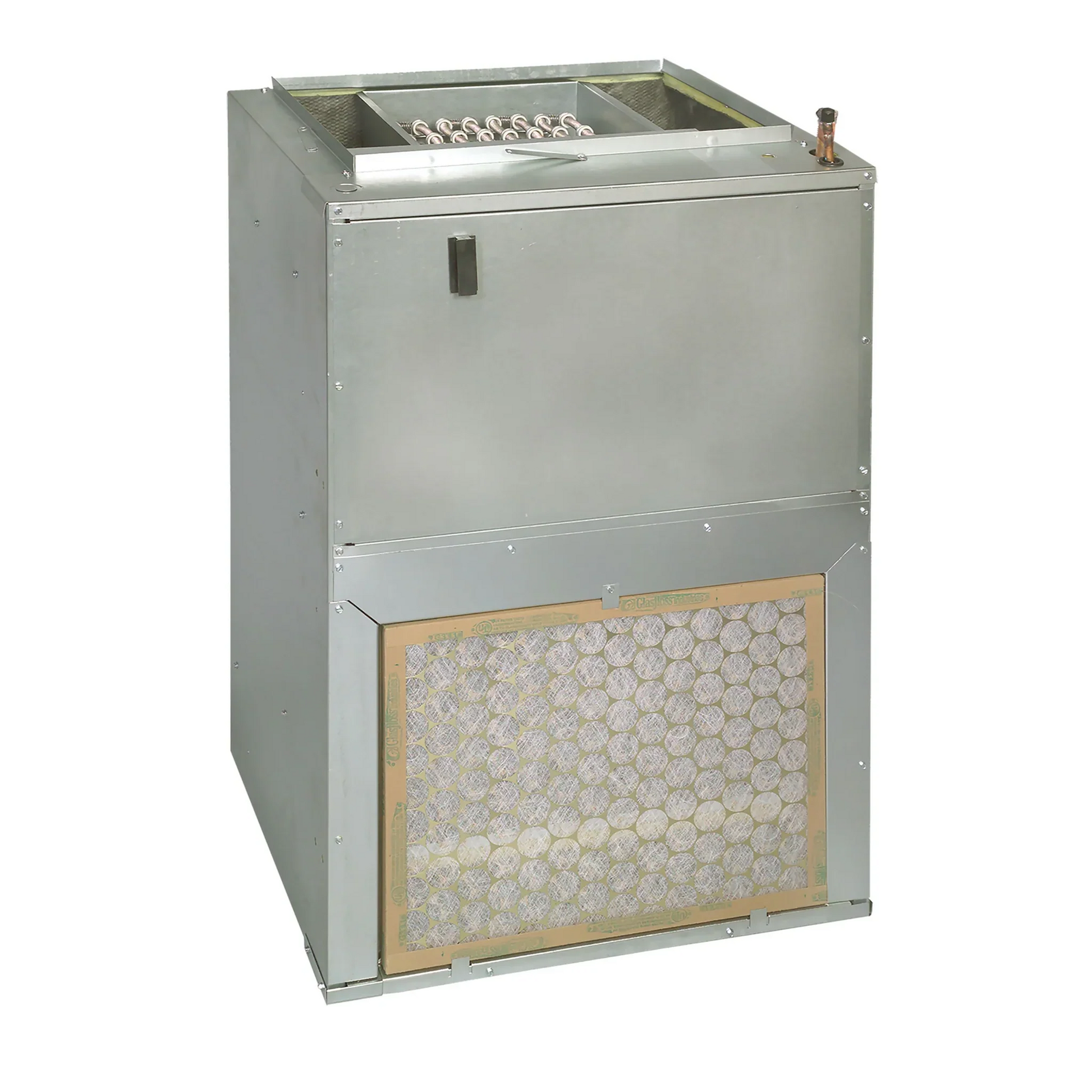

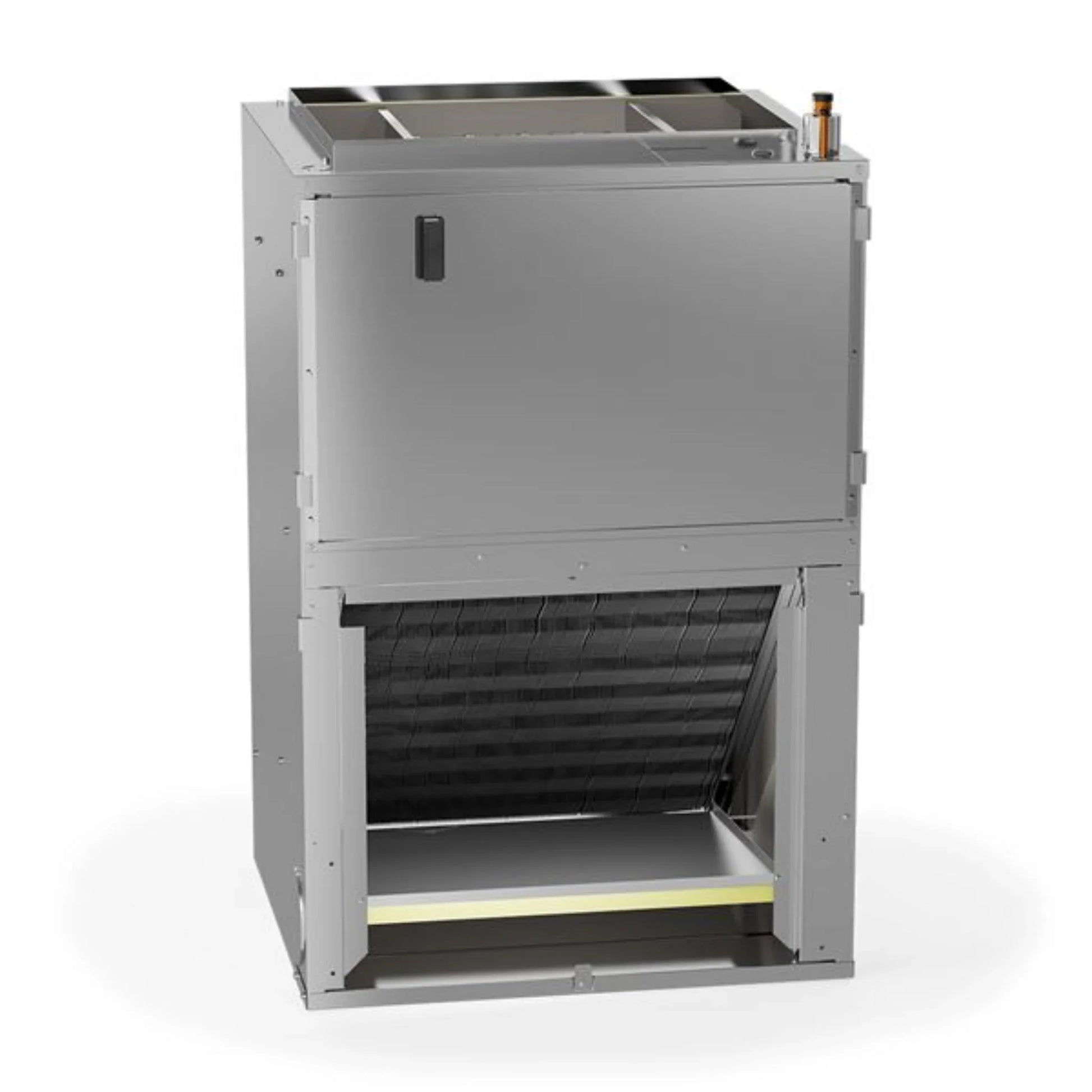

Goodman - 2.5 Ton/30,000 BTU Wall Mount Air Handler With Built-In 10kW Heater - 230V - R32 - AWST30LU1310

Goodman - 2.5 Ton/30,000 BTU Wall Mount Air Handler With Built-In 10kW Heater - 230V - R32 - AWST30LU1310

$621.99 USD
$828.57 USD $621.99 USD
Oferta Agotado

Descripción

Goodman - 2.5 Ton/30,000 BTU Wall Mount Air Handler With Built-In 10kW Heater - 230V - R32 - AWST30LU1310

Goodman air handlers are an integral part of finishing a total home environment control system. The AWST plays a key role in reducing indoor humidity to create a much more comfortable environment. In addition, the AWST works with a multi-speed ECM motor to efficiently move cooled or warmed air throughout your home at exactly the speed you need.

Features
  • AWST Models: Equipped with a fully adjustable TXV
  • Designed for use with R-32 Refrigerant

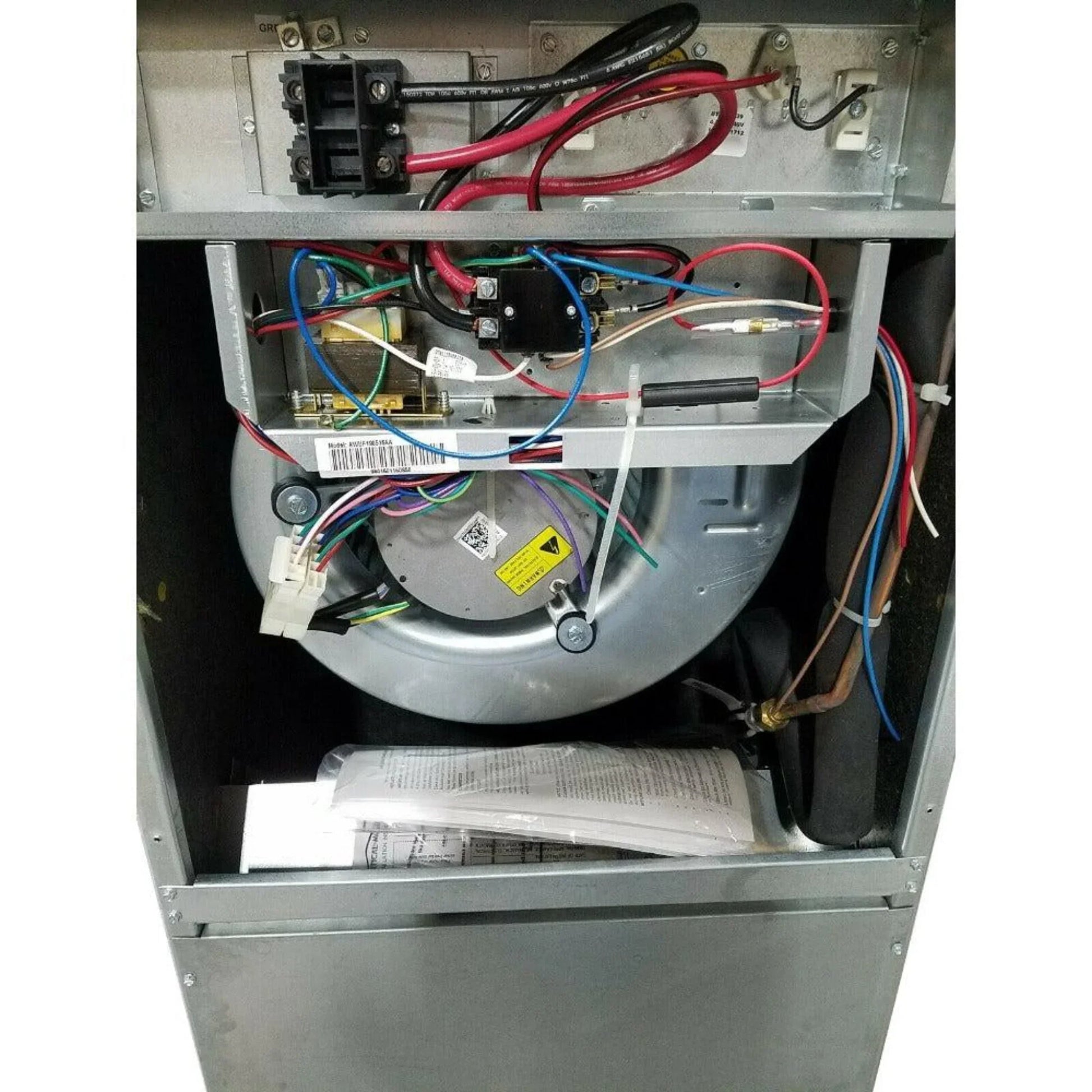

  • Direct-drive, multi-speed motors allows air volume variation for heating/cooling

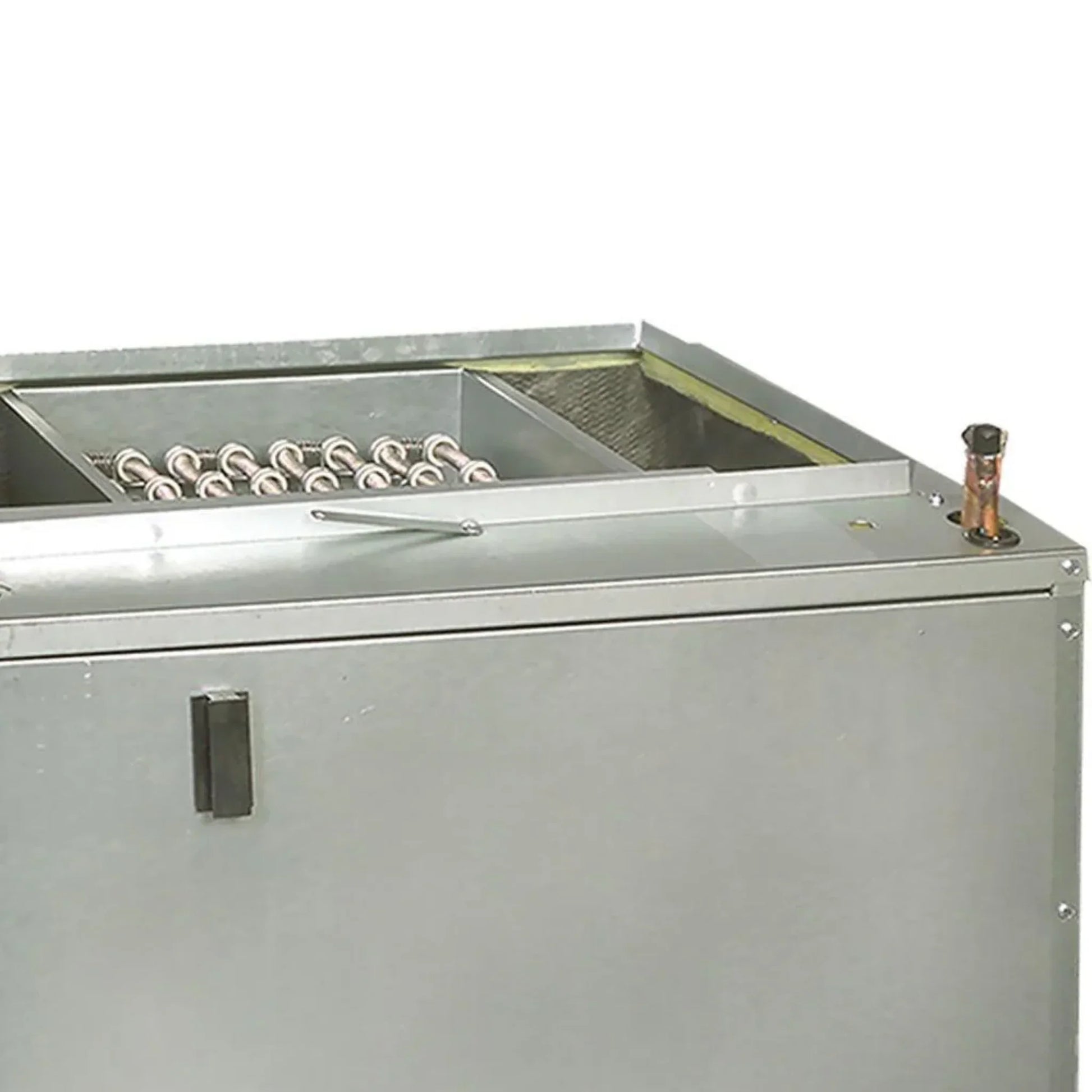

  • Sequence-controlled, rust-resistant nickel chromium heating elements of 3, 5, 8, and 10 kW
  • Aluminum tubing coils on all models
  • Factory-installed pull-type disconnect
  • Factory installed R-32 sensor designed for the lifespan of the coil.
  • Thermoplastic drain pan with bottom primary and secondary drain connections
  • Built-in filter rack (filter included)
  • Large chassis (2.5- and 3-ton units) front return only
  • Small chassis (1.5- and 2-ton units) front or bottom return
  • Wall-hanging bracket provided
  • AHRI Certified; ETL Listed
Specifications
Model Number(s) AWST30LU1310
Brand Goodman
Category Air Handlers
Ton 2.5 Ton
Voltage 208/230V
Electrical Phase(s) 1-Phase
Amp(s) 60
Blower Multi-Speed
Suction Valve Size (Inches) 3/4
Liquid Valve Size (Inches) 3/8
Height (Inches) 36
Width (Inches) 24
Depth (Inches) 21
Manual
What our Experts Think

  • All-in-One Comfort: Combines 2.5 Ton / 30,000 BTU cooling with a built-in 10 kW heater for year-round climate control.

  • Wall-Mount Flexibility: Compact design ideal for space-saving installations.

  • Reliable Performance: Engineered for consistent airflow and efficient heating/cooling.

  • Eco-Friendly Refrigerant: Uses R32 to reduce environmental impact.

  • Durable Build: Built for long-term reliability in varied climates.

  • Power Supply: 230V compatible for standard residential systems.

  • Quiet Operation: Optimized for minimal operational noise.

Q&A

Q: What type of HVAC system is this?
A: This is a self‑contained gas & electric packaged unit, combining both air conditioning and natural gas heating in one rooftop or ground‑level outdoor cabinet — no separate indoor furnace or air handler needed.

Q: What are the cooling and heating capacities?
A: The unit delivers 2.5 tons (≈28,600 BTU) of cooling at 13.4 SEER2 and 60,000 BTU of natural gas heating — providing year‑round comfort.

Q: How efficient is it?
A: It features 13.4 SEER2 (cooling) and ≈81% AFUE (heating) for efficient performance aligned with modern standards.

Q: What does “Ultra‑Low NOx” mean?
A: The unit is compliant with ultra‑low NOx emissions standards, producing reduced nitrogen oxide for cleaner operation and improved environmental compliance.

Q: What refrigerant does this use?
A: It’s precharged for R‑32 refrigerant, a newer low‑GWP cooling agent.

Q: What installation configurations are supported?
A: Supports downflow or horizontal discharge, making it suitable for rooftop and next‑to‑building setups.

Q: What are the electrical requirements?
A: Operates on 208/230 V single‑phase power (60 Hz).

Q: What type of compressor and airflow system does it include?
A: Includes a single‑stage scroll compressor and a multi‑speed blower motor for reliable cooling airflow.

Maintenance Tips

  • Replace or clean air filters every 1–3 months to maintain airflow and system efficiency.

  • Keep supply and return vents clear of furniture, dust, and debris.

  • Maintain 2–3 feet of clearance around the air handler for proper airflow and safe operation.

  • Inspect the condensate drain line and pan regularly to prevent clogs and water damage.

  • Check heater elements for dust accumulation or signs of wear.

  • Ensure thermostat is functioning properly and set for efficient heating and cooling cycles.

  • Inspect ductwork and connections for leaks or blockages.

  • Clean blower compartment and internal surfaces periodically to prevent dust buildup.

  • Listen for unusual noises such as rattling, buzzing, or humming indicating potential mechanical issues.

  • Schedule annual professional HVAC maintenance to inspect electrical connections, blower motor, heater elements, and overall system performance.
