Goodman - 2.5 Ton/60,000 BTU 92% AFUE Gas Furnace and Air Conditioner System - Horizontal - 14.5 SEER2 - R32 - CHPTA3026B3

Goodman - 2.5 Ton/60,000 BTU 92% AFUE Gas Furnace and Air Conditioner System - Horizontal - 14.5 SEER2 - R32 - CHPTA3026B3

$3,399.99 USD
$4,533.00 USD $3,399.99 USD
Oferta Agotado

Descripción

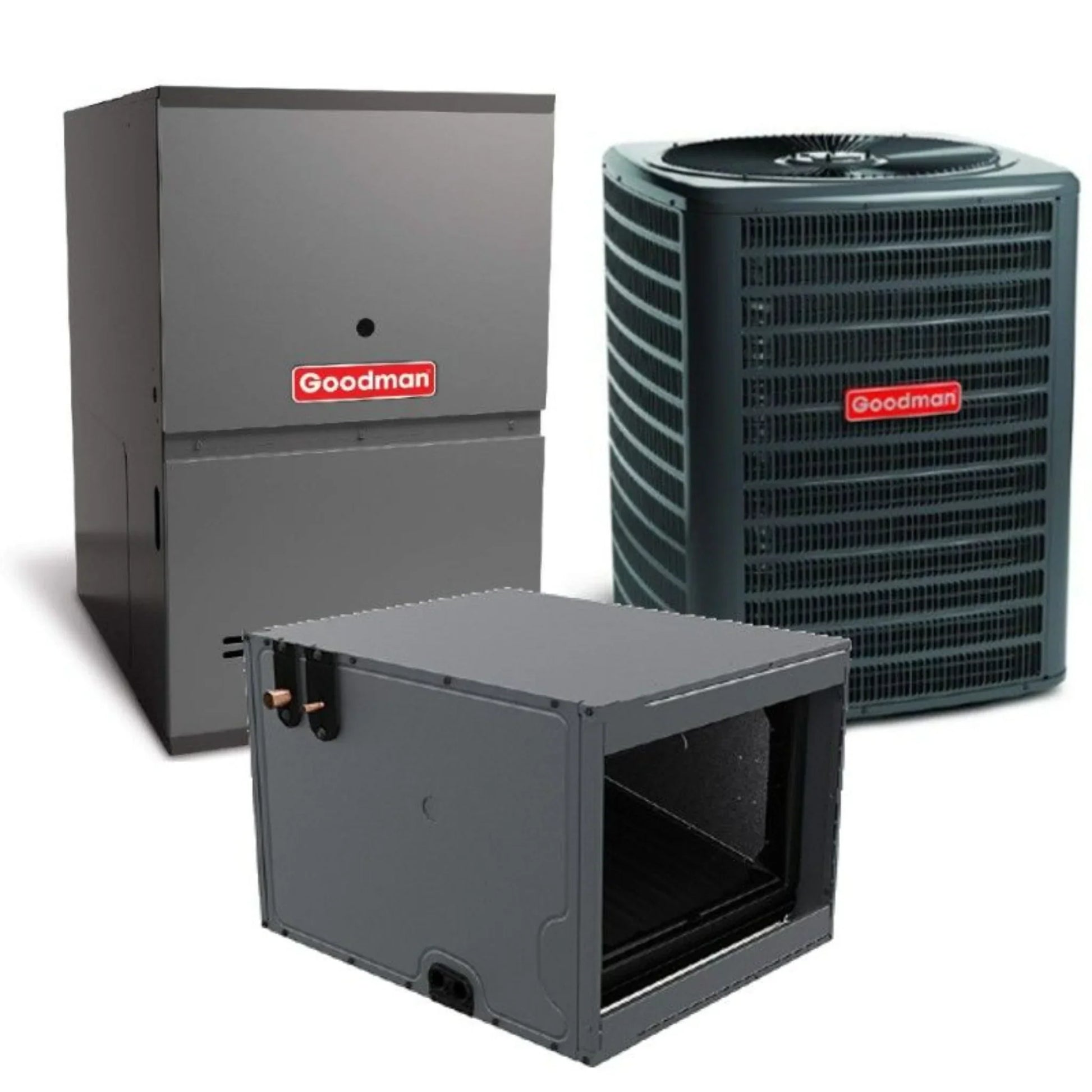

Goodman - 2.5 Ton/60,000 BTU 92% AFUE Gas Furnace and Air Conditioner System - Horizontal - 14.5 SEER2 - R32 - CHPTA3026B3

A Goodman combination system is a great choice to keep your home comfortable all season long. With tons of extra features and a great price, a Goodman furnace and air conditioning system is the perfect choice for all of your heating and cooling needs.

Features
  • This furnace is ideal to heat a smaller house (depending on climate)

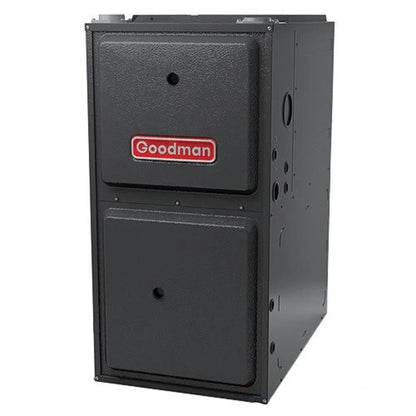

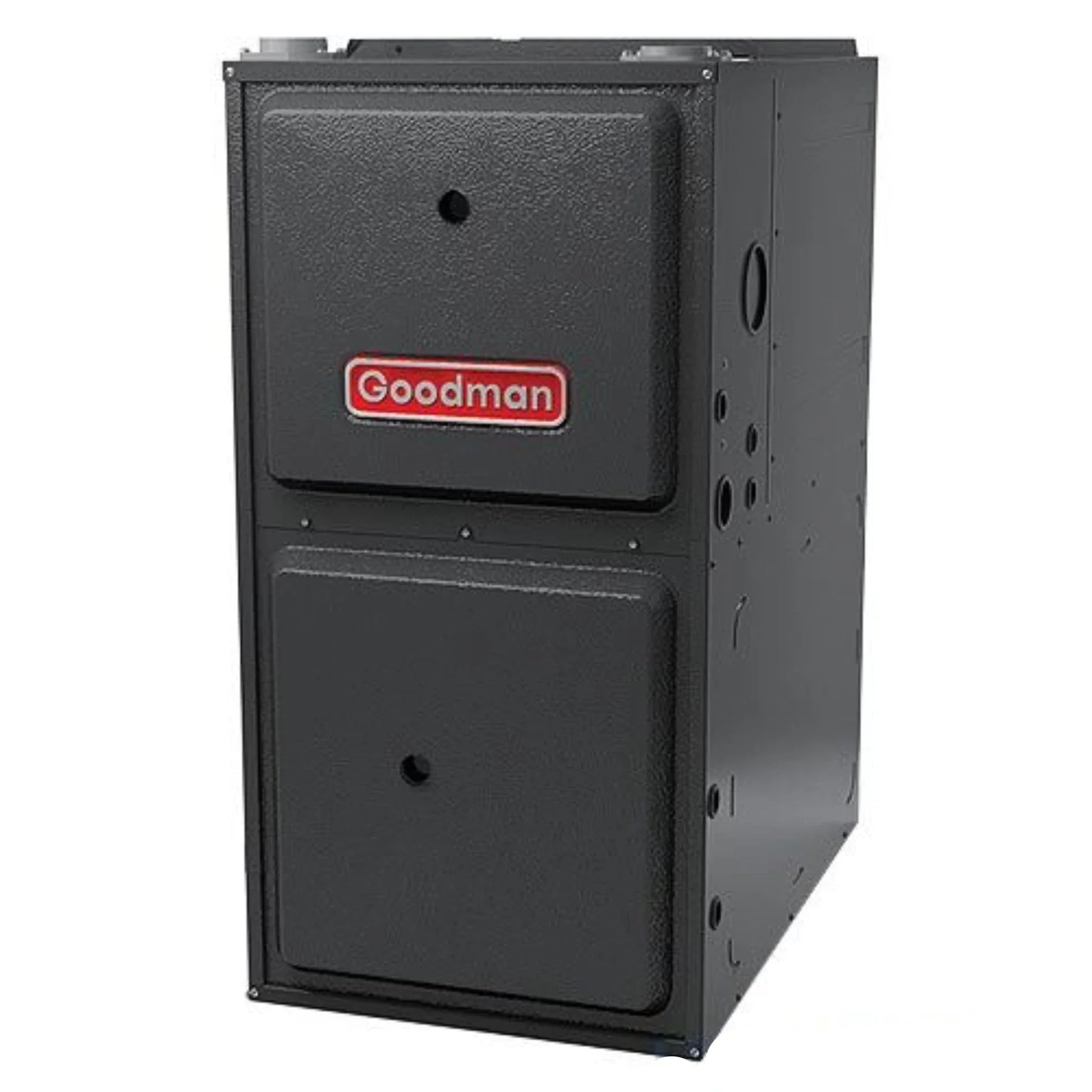

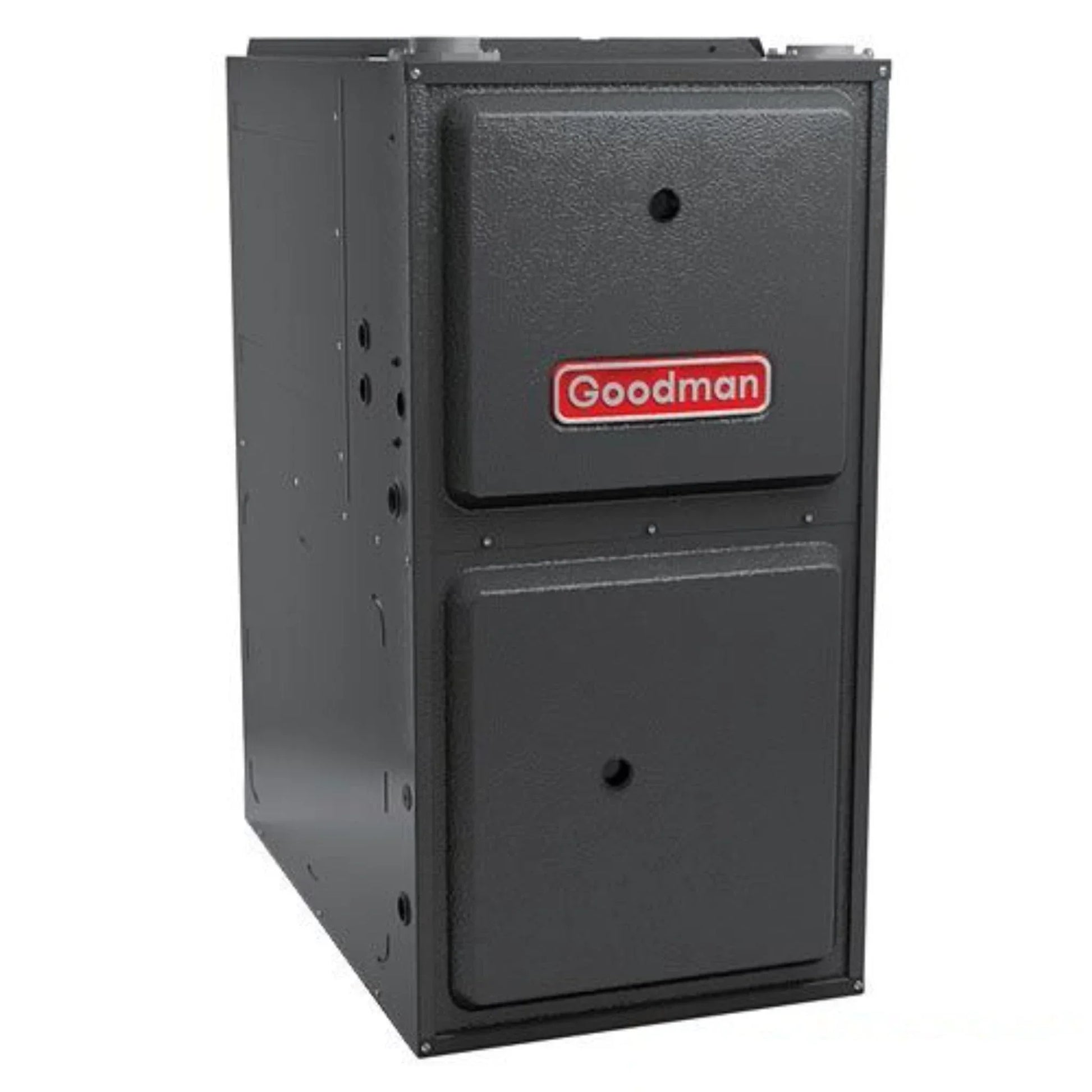

  • 60,000 BTU 92% efficient natural gas furnace
  • Requires plastic/PVC flue venting
  • Complies with Clean Air Act New Refrigerant Requirements
  • Can be used in the upflow or horizontal orientation
  • Can be converted to an LP furnace with a conversion kit (sold separately)
  • Innovative design for electrical efficiency, safety, and lower sound output
  • Ideal size to cover a small house in ideal climates
  • 2.5 ton, 14.3 SEER2 AC-only condenser
  • R32: Complies with Clean Air Act New Refrigerant Requirements
  • Fully charged for up to 15' of line set
  • Low sound output
  • Factory-installed filter drier

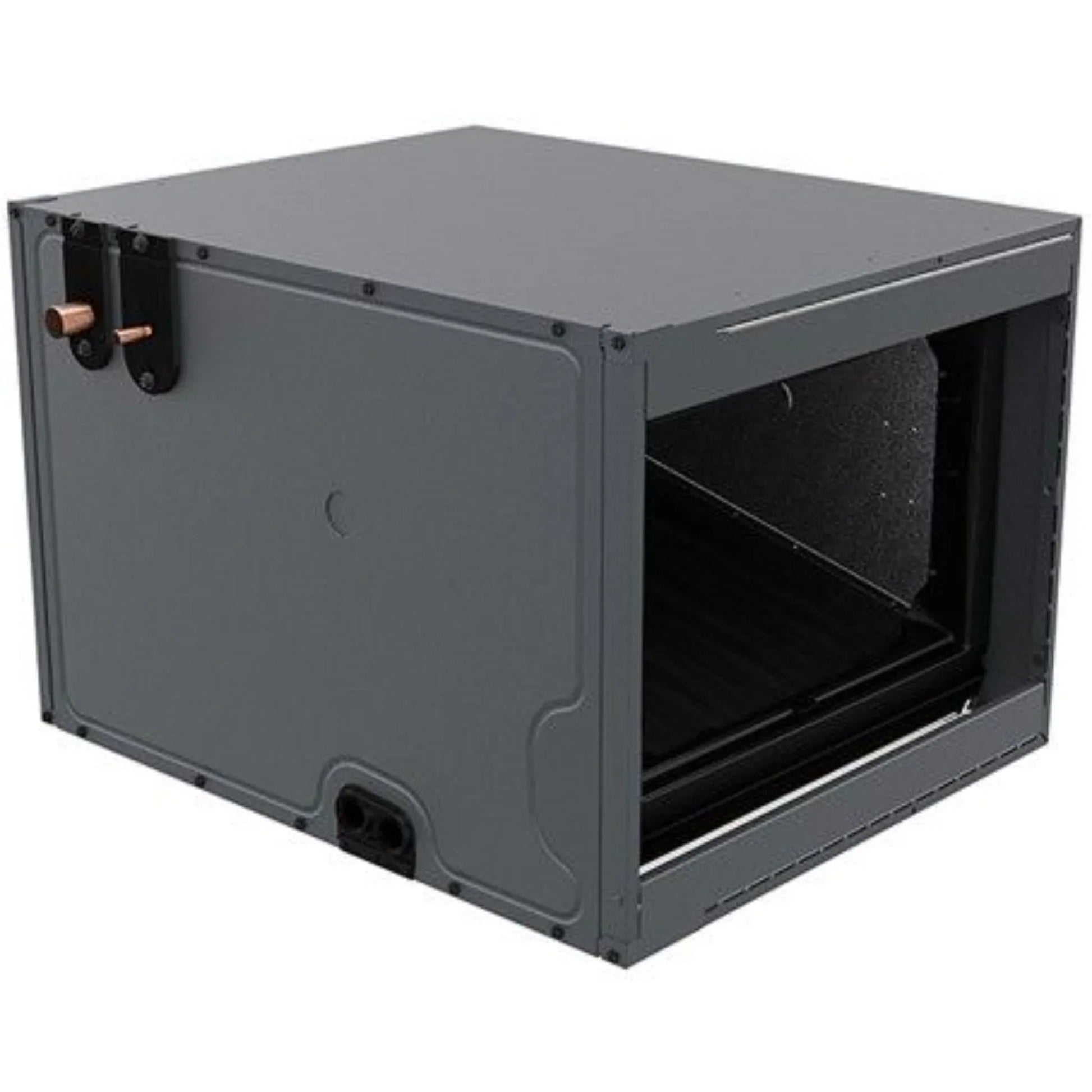

  • 2.5 ton horizontal evaporator coil
  • Can be used with heat pump and AC-only condensers
  • R32: Complies with Clean Air Act New Refrigerant Requirements
  • Galvanized, embossed, and insulated coil cabinet to protect the coil and prevent air leakage
  • Factory-installed TXV kit
Specifications

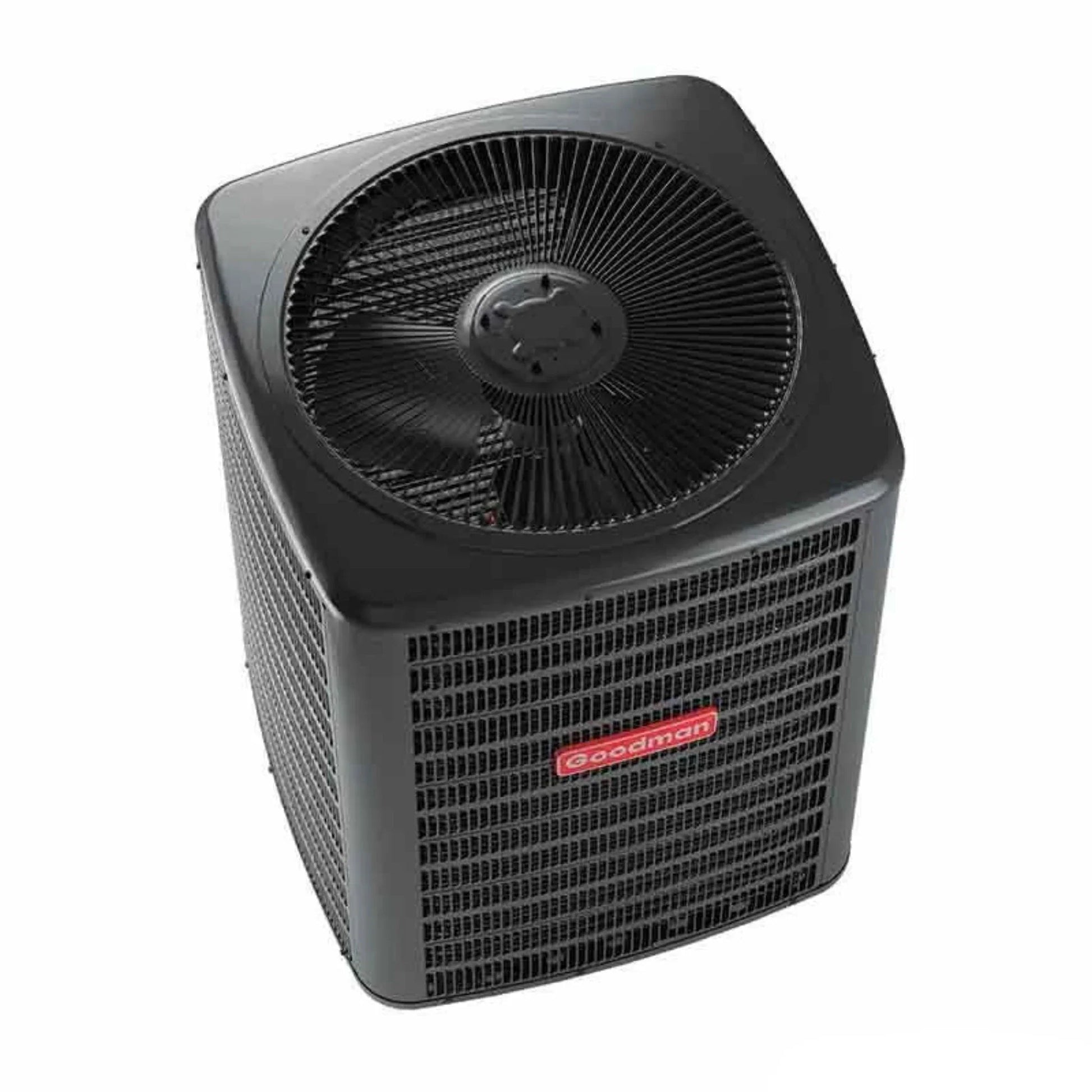

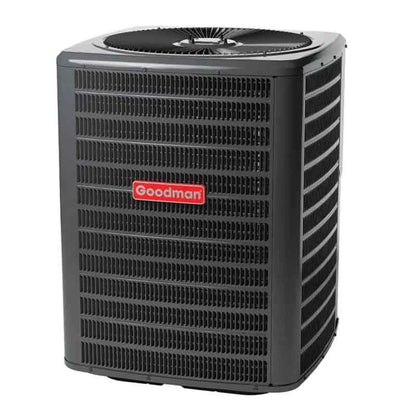

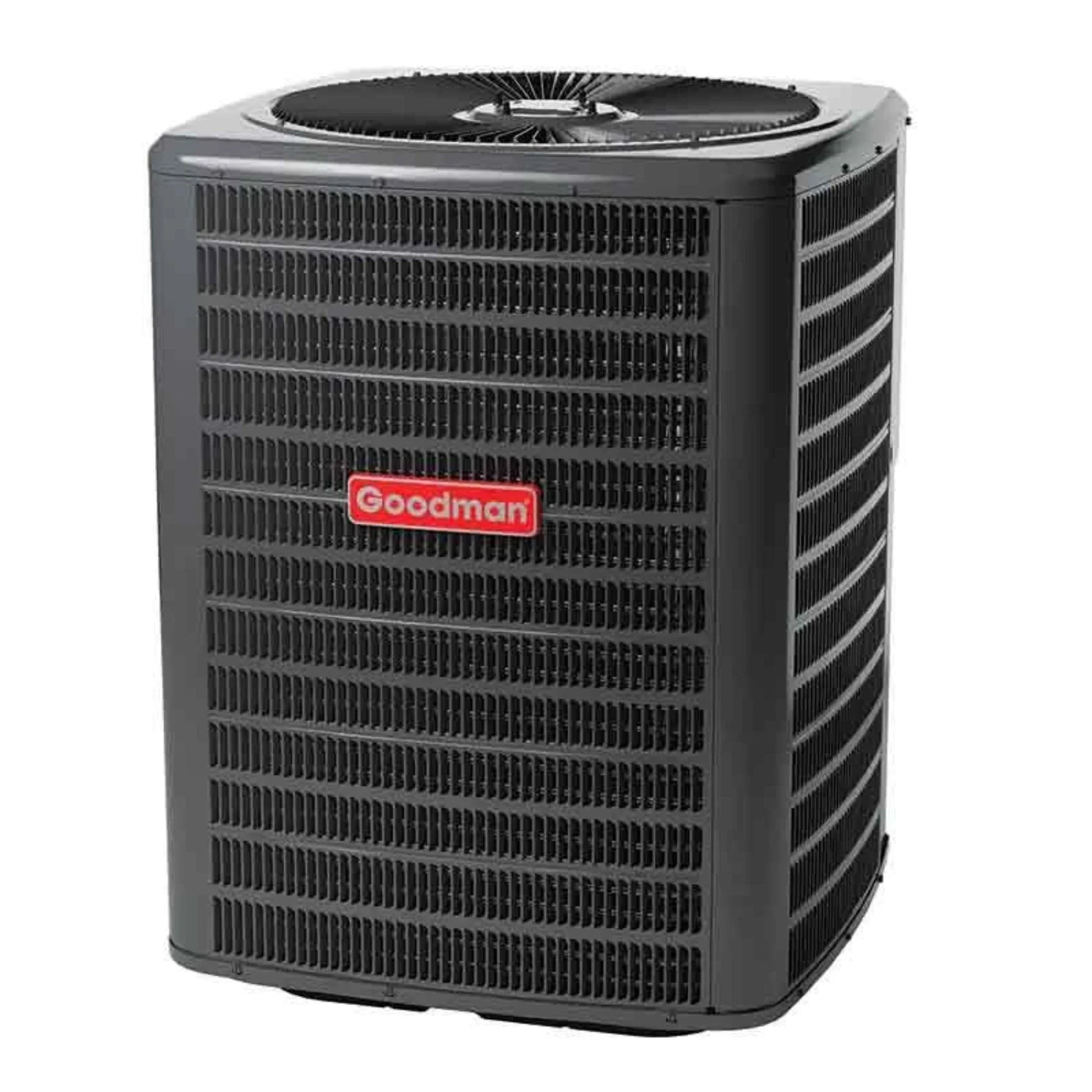

2.5 Ton 14.3 SEER2 Goodman Air Conditioner Condenser
SKU GLXS4BA3010
Weight 180.000000
Manufacturer Goodman
Replaces GSX140301
Cooling BTU 30,000
Blower Motor Single Speed PSC Motor
Decibel Level (dBA) 72
Horsepower 0.167 HP
Refrigerant R32
SEER2 14.3
Condenser Stages Single Stage
Compressor Type Rotary
Liquid Line 3/8"
Suction Line 7/8"
Electrical 208/230v 1 Phase 60Hz
Max Breaker Size 25 Amps
Min. Breaker Size 15.5 Amps
Tonnage 2.5 Ton
Connection Sweat
Height 39 1/2"
Width 29"
Depth 29"
Manual
What our Experts Think

  • Balanced, Year‑Round Comfort: The Goodman CHPTA3026B3 HVAC System pairs a 92% AFUE gas furnace with a 2.5 ton (60,000 BTU) air conditioner, delivering efficient heating and cooling in one optimized system.

  • High‑Efficiency Heating: 92% AFUE means most fuel becomes usable heat, helping lower winter energy costs and deliver strong, consistent warmth.

  • Efficient Cooling Performance: 14.5 SEER2 cooling helps reduce electricity use in hot weather while maintaining comfortable indoor temperatures.

  • Horizontal Installation Fit: Built for horizontal duct applications, making it ideal for crawlspaces, attics, or other low‑clearance mechanical areas.

  • R32 Refrigerant Advantage: Uses R32 refrigerant, which provides better heat transfer and a smaller environmental footprint versus older refrigerants.

  • Matched System Optimization: Designed as a coordinated furnace + AC package to ensure harmonized airflow, consistent capacity, and reliable seasonal performance.

  • Great Value & Reliability: Combines high heating efficiency, strong cooling performance, and installation flexibility, making it a smart choice for dependable whole‑home HVAC comfort.


Q&A

Q: What’s included in this HVAC system?

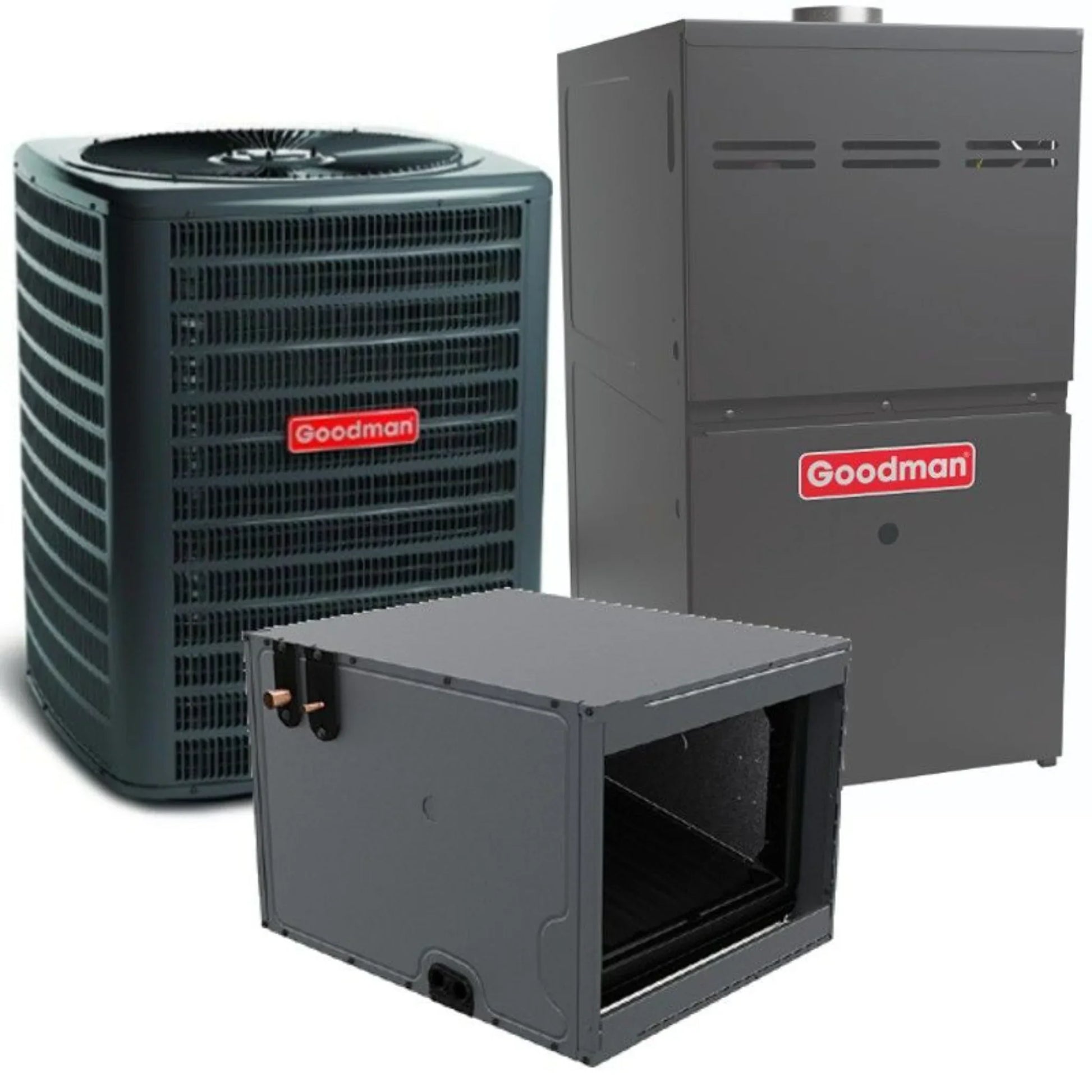

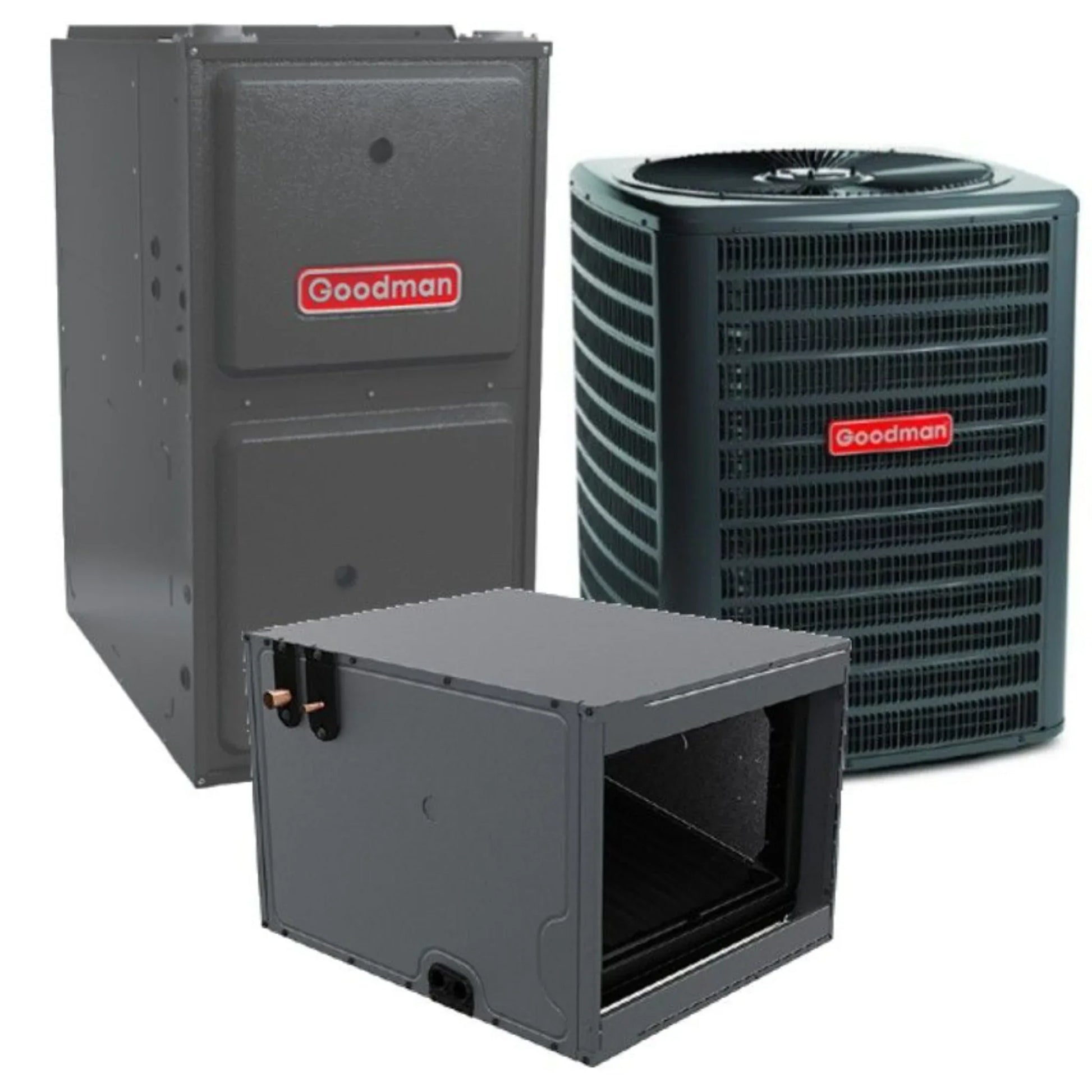

A: This matched system includes a 2.5 ton R32 14.5 SEER2 air conditioner condenser, the Goodman 60,000 BTU 92% AFUE gas furnace, and a horizontal evaporator coil (CHPTA3026B3) designed to work together for efficient year‑round comfort.

Q: How much cooling capacity and efficiency does it offer?
A: The outdoor unit delivers 2.5 tons (~30,000 BTU) of cooling with 14.5 SEER2 efficiency, helping reduce seasonal electricity costs while providing consistent indoor comfort.

Q: What does 92% AFUE mean for the gas furnace?
A: 92% AFUE means roughly 92 ¢ of each dollar spent on fuel becomes usable heat, boosting heating efficiency over lower AFUE models and helping lower winter energy bills.

Q: What refrigerant does this system use?
A: This system uses R32 refrigerant, a modern refrigerant standard with improved energy performance and lower environmental impact than many older refrigerants.

Q: Is this suitable for horizontal installation?
A: Yes — the CHPTA3026B3 horizontal evaporator coil and furnace are configured for horizontal installation, ideal where vertical space is limited (e.g., crawlspaces, attics, closets).

Q: What are the key benefits of a matched HVAC system?
A: Matched systems ensure optimized airflow, balanced efficiency, reliable year‑round comfort, and full manufacturer warranty support, which can perform better than mismatched components.

Q: Who is this system best for?
A: Ideal for small to medium homes needing efficient cooling with 14.5 SEER2 and dependable 92% AFUE heating in a single horizontally installed package


Maintenance Tips

  • Replace Air Filters Regularly: Inspect monthly and replace every 1–3 months to maintain proper airflow and protect both furnace and AC components.

  • Keep Vents & Registers Clear: Ensure supply and return vents are unobstructed for even heating and cooling.

  • Inspect Furnace Venting: Check intake and exhaust pipes for blockages or damage to maintain safe operation.

  • Clean Around the Units: Maintain 2–3 ft clearance around furnace and condenser to prevent dust buildup and allow proper airflow.

  • Check Thermostat & Electricals: Verify thermostat settings, gas supply, and 115V/208–230V circuits for correct operation.

  • Monitor System Performance: Listen for unusual noises from the blower or condenser; reduced heating or cooling efficiency may indicate maintenance needs.

  • Schedule Annual Professional Service: Licensed HVAC technicians should inspect burners, heat exchanger, gas pressure, AC refrigerant charge, and safety controls yearly.
