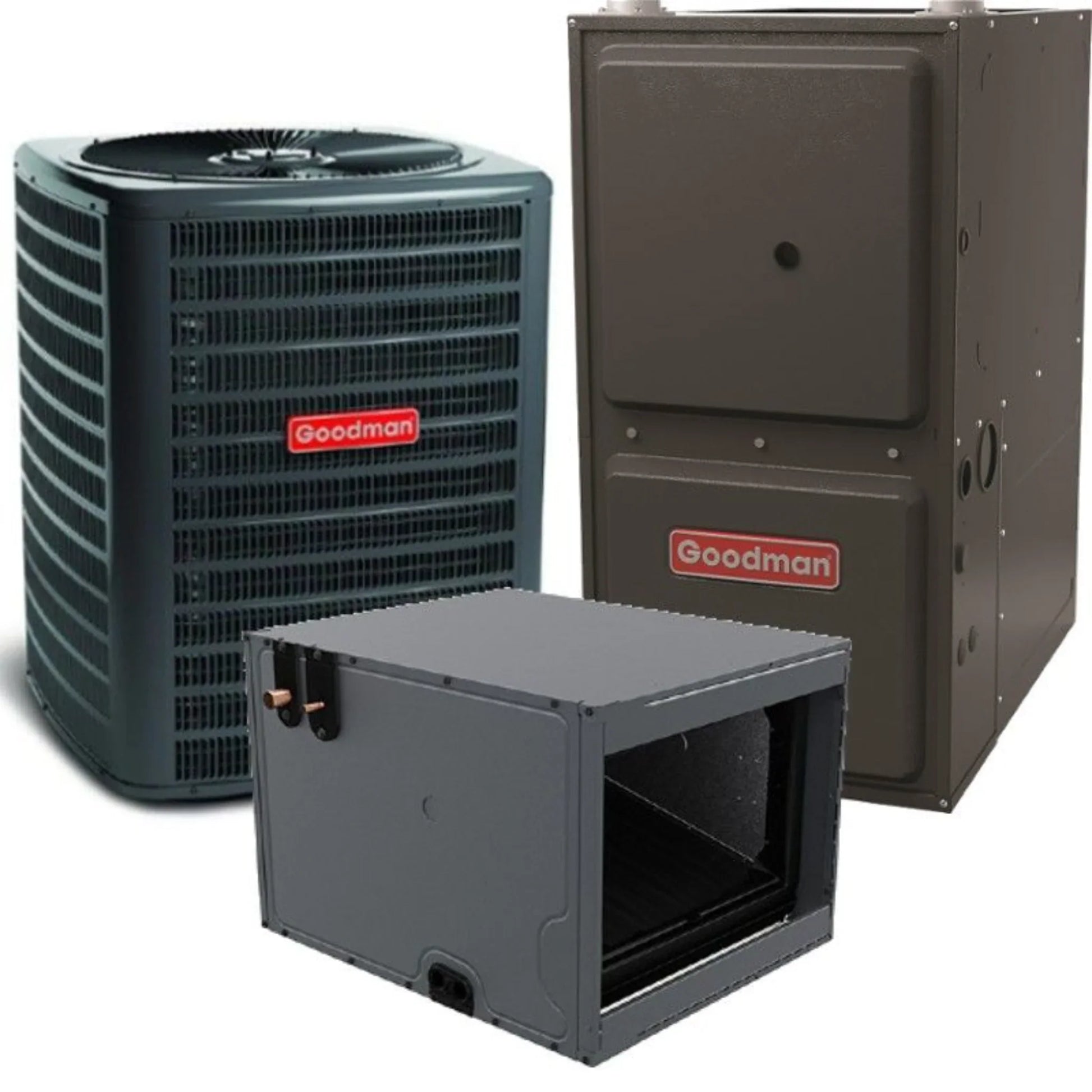

Goodman - 2 Ton/40,000 BTU 96% AFUE Gas Furnace and Air Conditioner System - Horizontal - 14.5 SEER2 - R32 - GLXS4BA2410 / CHPTA3026B3 / GD9T960403BN

Goodman - 2 Ton/40,000 BTU 96% AFUE Gas Furnace and Air Conditioner System - Horizontal - 14.5 SEER2 - R32 - GLXS4BA2410 / CHPTA3026B3 / GD9T960403BN

$3,612.99 USD
$4,817.00 USD $3,612.99 USD
Oferta Agotado

Descripción

Features
  • Ideal size to cover a small house in ideal climates

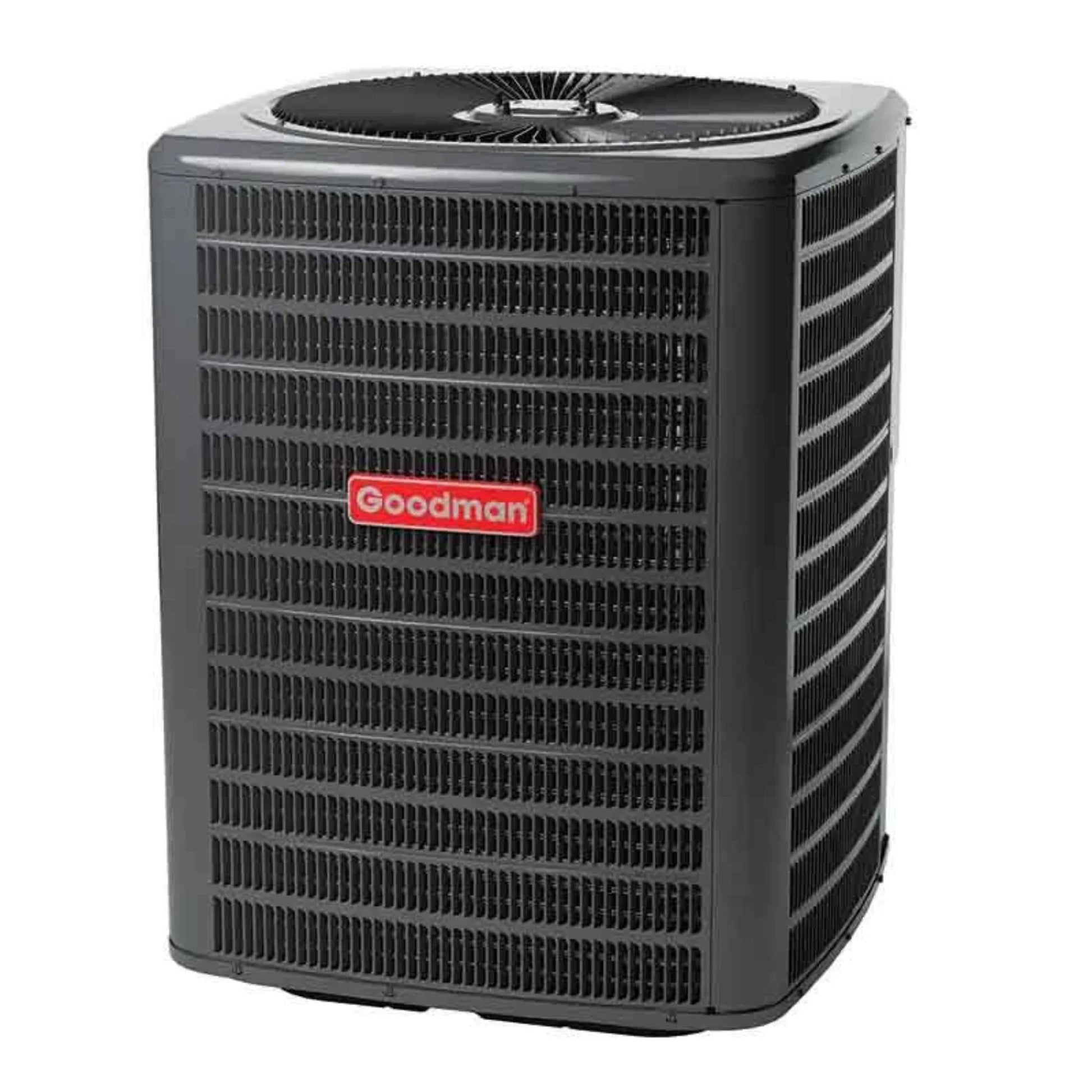

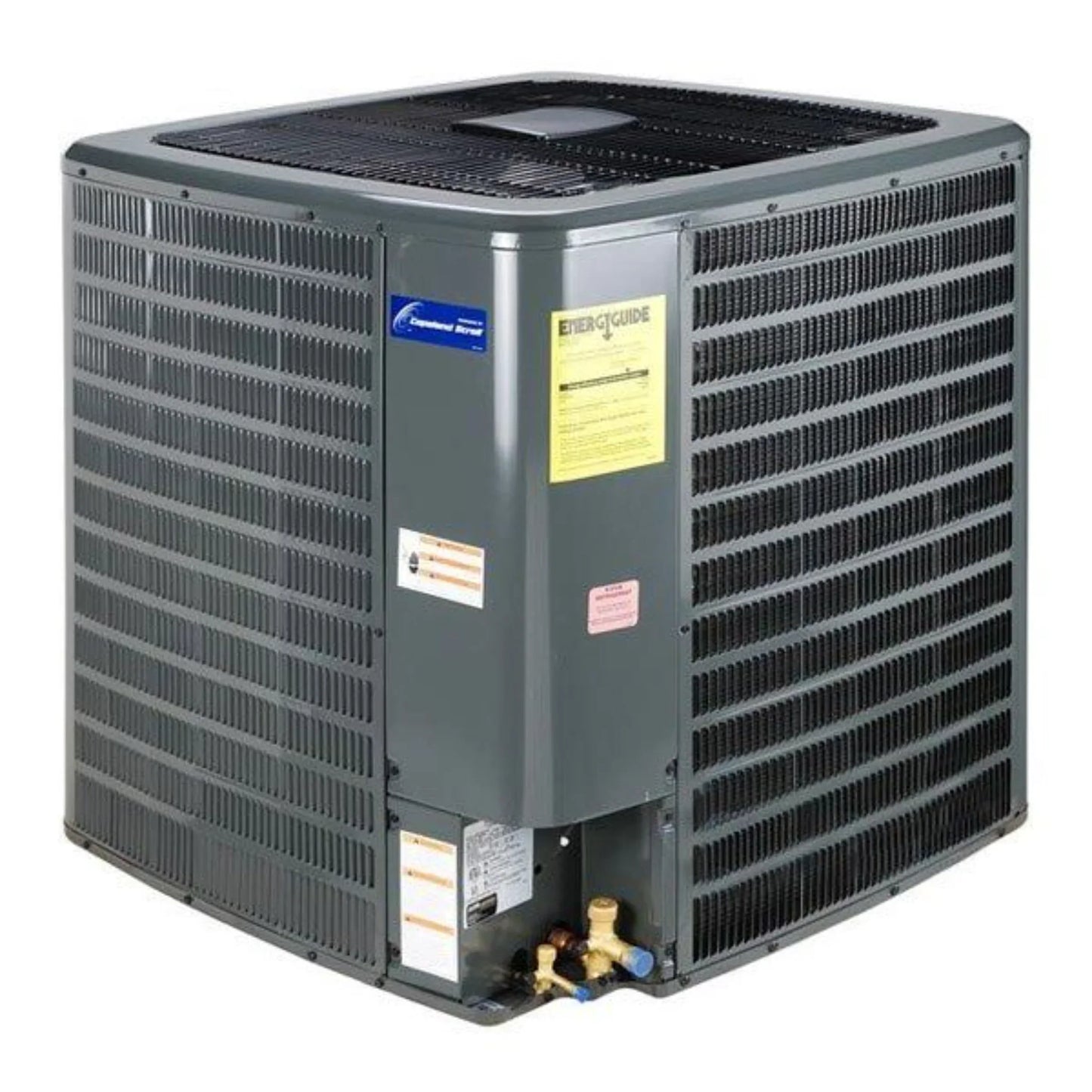

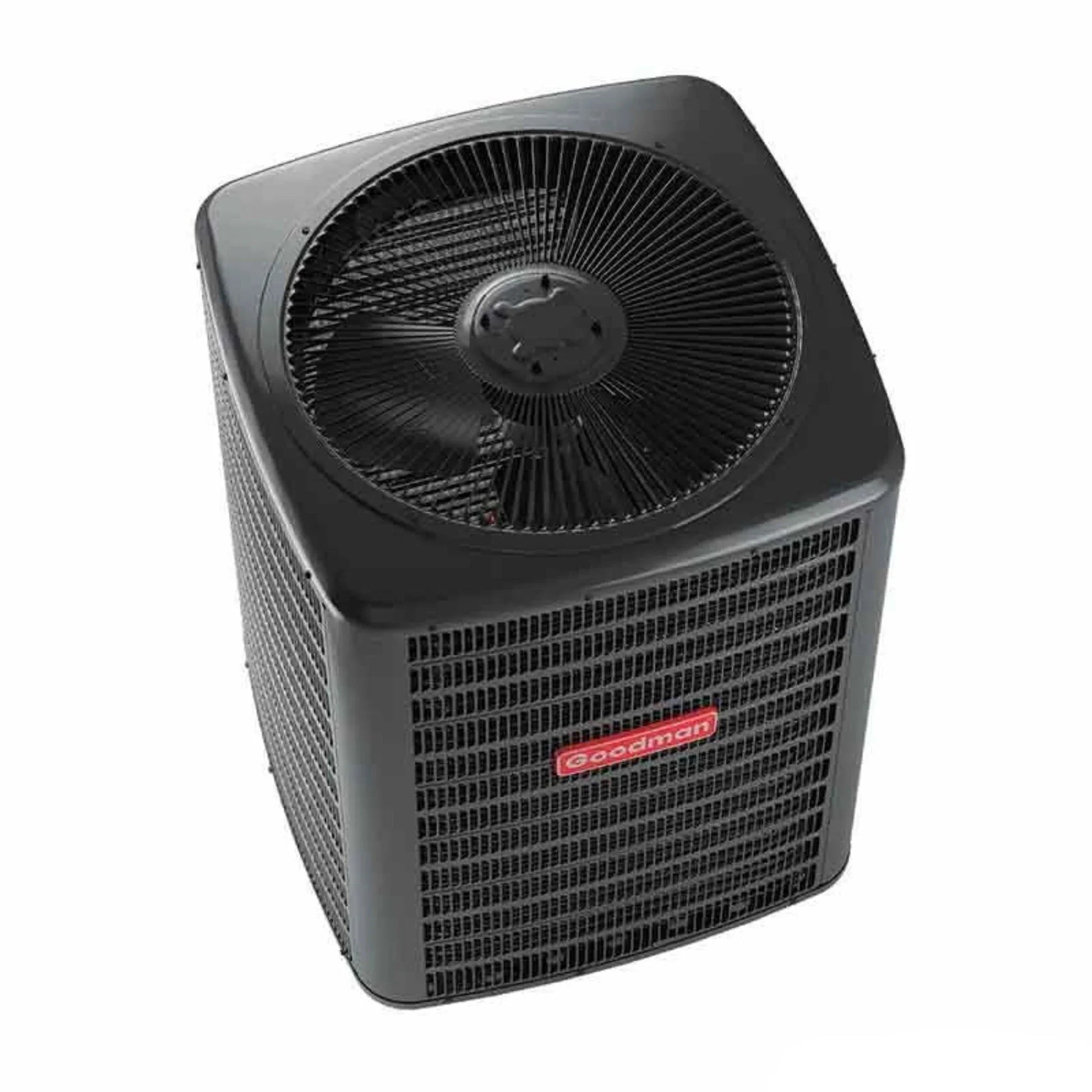

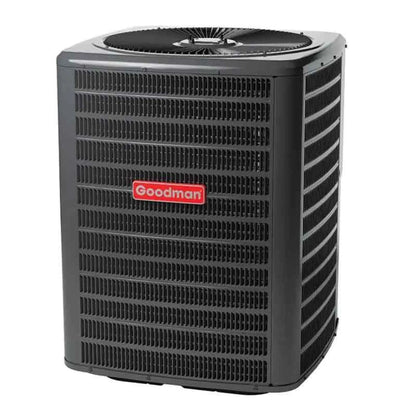

  • 2 ton, 14.3 SEER2 AC-only condenser
  • R32: Complies with Clean Air Act New Refrigerant Requirements
  • Fully charged for up to 15' of line set
  • Low sound output
  • Factory-installed filter drier
  • 2.5 ton horizontal evaporator coil
  • Can be used with heat pump and AC-only condensers
  • R32: Complies with Clean Air Act New Refrigerant Requirements
  • Galvanized, embossed, and insulated coil cabinet to protect the coil and prevent air leakage
  • Factory-installed TXV kit
  • This furnace is ideal to heat a smaller house (depending on climate)

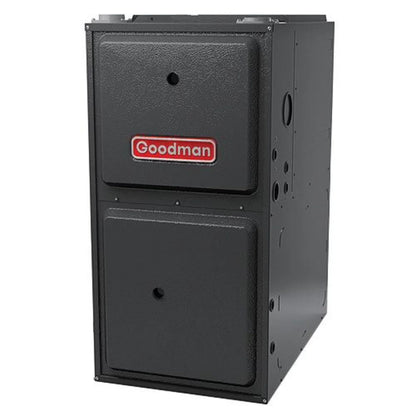

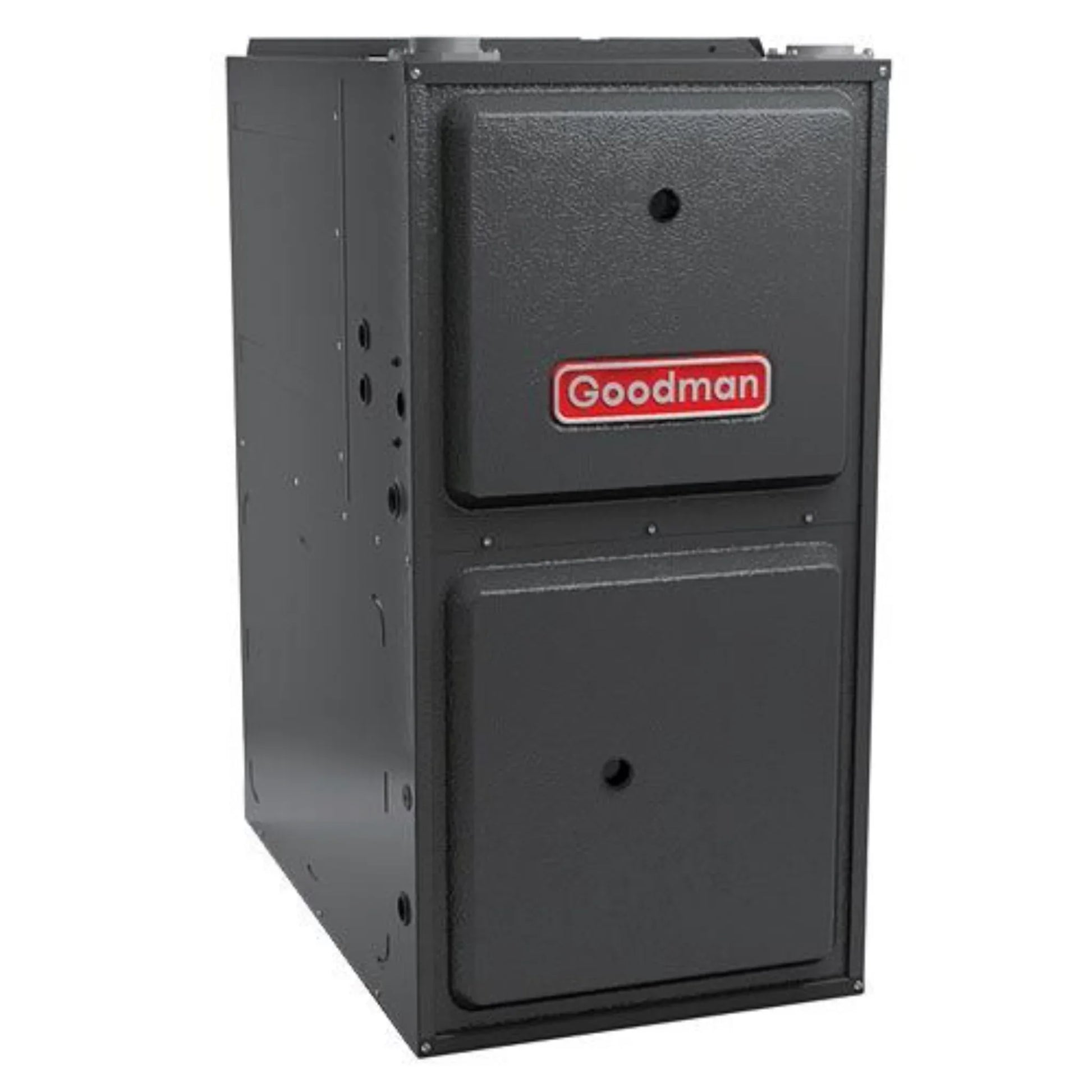

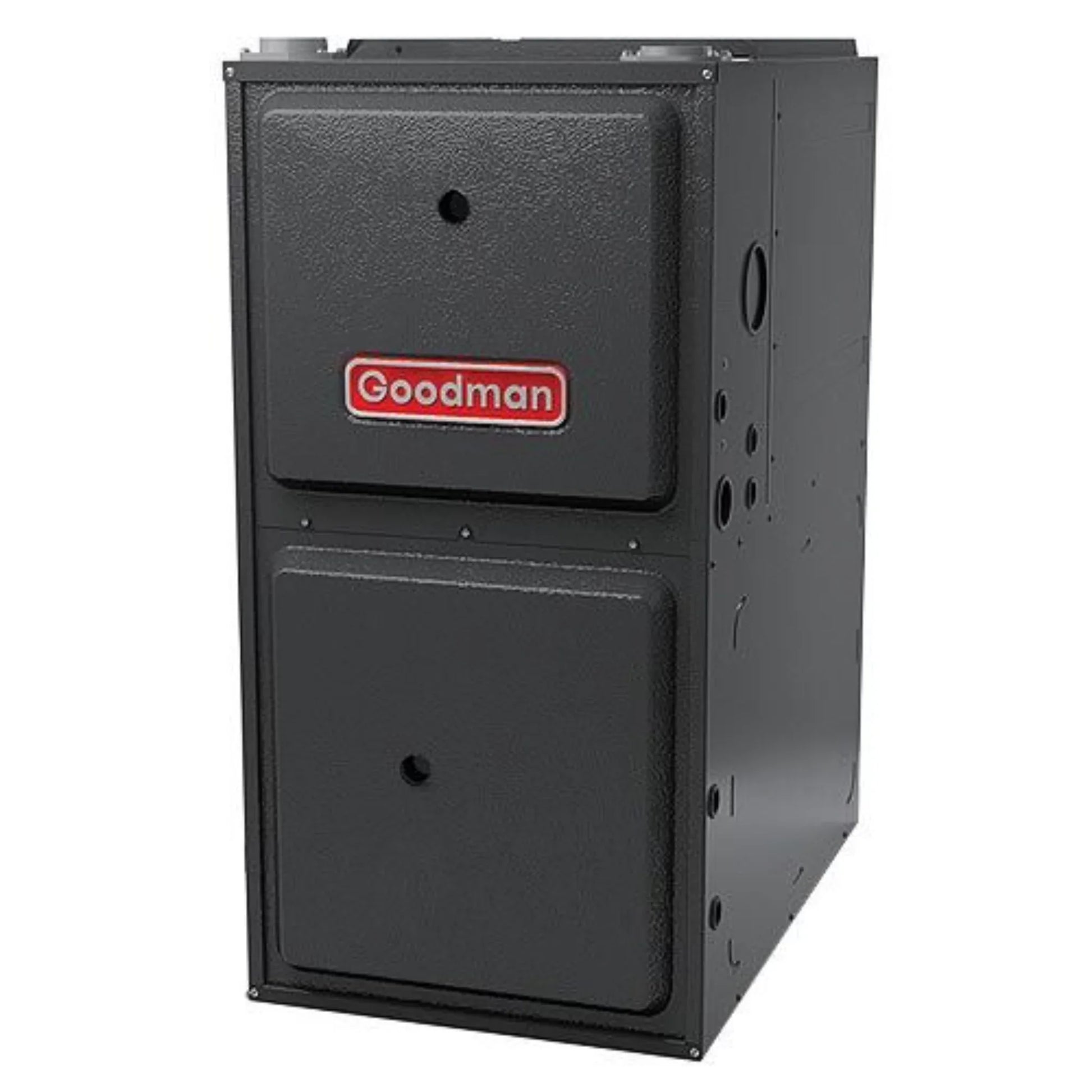

  • 40,000 BTU 96% AFUE natural gas furnace
  • Requires plastic/PVC flue venting
  • Complies with Clean Air Act New Refrigerant Requirements
  • Can be used in the downflow or horizontal orientation
  • Can be converted to an LP furnace with an optional conversion kit (sold separately)
  • Innovative design for electrical efficiency, safety, and lower sound output
Specifications
SKU GLXS4BA2410
Weight 132.000000
Manufacturer Goodman
Replaces GSXN402410
Product Features New Refrigerant Compliant
Cooling BTU 24,000
Decibel Level (dBA) 74
Horsepower 1/8 HP
Refrigerant R32
SEER2 14.3
Condenser Stages Single Stage
Compressor Type Rotary
Liquid Line 3/8"
Suction Line 3/4"
Liquid Valve Size 3/8"
Suction Valve Size 3/4"
Electrical 208/230v 1 Phase 60Hz
Max Breaker Size 15 Amps
Min. Breaker Size 10.9 Amps
Tonnage 2 Ton
Connection Sweat
Height 27"
Width 26"
Depth 26"
Owner's Manual
What our Experts Think

  • Efficient all‑in‑one comfort package: This system pairs a 2 ton (24 000 BTU) R‑32 air conditioner at ~14.5 SEER2 with a 96 % AFUE 40 000 BTU gas furnace, delivering reliable year‑round comfort with balanced heating and cooling output.

  • High‑efficiency heating: The GD9T960403BN furnace achieves 96 % AFUE, meaning most fuel goes into heating your home rather than wasted in exhaust—great for lowering winter heating costs in colder seasons.

  • Staged and multi‑speed operation: A two‑stage burner with a 9‑speed ECM blower motor improves comfort stability, reduces frequent cycling, and enhances airflow control compared with single‑stage systems.

  • Advanced cooling tech: The GLXS4BA2410 condenser uses modern R‑32 refrigerant to support improved thermodynamic efficiency and a lower environmental impact.

  • TXV‑equipped evaporator coil: The CHPTA3026B3 coil with factory TXV delivers precise refrigerant control, resulting in better humidity management and more consistent cooling performance.

  • Versatile installation: Designed for horizontal or multi‑position setup, this system fits tight mechanical spaces like attics or crawl areas without sacrificing performance.

  • Quiet and durable design: Goodman’s components are engineered for lower sound output and rugged build quality, helping the system run quietly and reliably over many years.

  • Strong value proposition: Experts see this as a cost‑effective mid‑efficiency HVAC solution that blends solid efficiency, modern refrigerant and blower tech, and dependable comfort for everyday residential use.



Q&A

Q: What type of HVAC system is this?
A: This is a complete Goodman high-efficiency HVAC system, including a 2‑ton air conditioner (GLXS4BA2410), cased evaporator coil (CHPTA3026B3), and 40,000 BTU 96% AFUE gas furnace (GD9T960403BN) for reliable year‑round comfort.

Q: What size home is a 2‑ton system suitable for?
A: A 2‑ton AC system (24,000 BTU cooling) is ideal for small to medium homes or apartments around 900–1,400 sq. ft., depending on insulation, climate, and layout.

Q: How energy efficient is this system?
A: The system offers 14.5 SEER2 cooling efficiency and a 96% AFUE gas furnace, delivering high-efficiency heating with almost all fuel converted into usable heat.

Q: What refrigerant does the air conditioner use?
A: The condenser uses R‑32 refrigerant, a modern eco-friendly refrigerant designed for better energy efficiency and lower environmental impact.

Q: Does the furnace include advanced technology?
A: Yes. The GD9T960403BN furnace features a variable-speed ECM blower motor and high-efficiency design, providing quieter operation, improved airflow, and consistent indoor temperatures.

Q: Can this system be installed horizontally?
A: Yes. The furnace and coil support horizontal installation, making it suitable for attics, crawl spaces, or closets where horizontal airflow is needed.

Q: What components are included in this HVAC package?
A: The system includes:

  • GLXS4BA2410 – 2 Ton 14.5 SEER2 outdoor AC condenser

  • CHPTA3026B3 – 2 Ton cased evaporator coil

  • GD9T960403BN – 40,000 BTU 96% AFUE gas furnace


Maintenance Tips

  • Replace air filters every 1–3 months: Clean filters maintain airflow, protect the blower, and improve indoor air quality.

  • Keep the outdoor condenser clean: Remove leaves, dirt, and maintain 2–3 ft clearance around the unit for optimal cooling efficiency.

  • Inspect the evaporator coil and drain pan: The CHPTA aluminum coil should be checked for dirt or clogs to prevent water leaks and reduced cooling performance.

  • Check refrigerant line insulation: Ensure suction line insulation is intact to maintain energy efficiency.

  • Maintain unobstructed vents: Keep supply and return vents clear for balanced airflow throughout the home.

  • Schedule annual professional service: A certified HVAC technician should inspect the furnace heat exchanger, blower motor, refrigerant levels, and safety controls yearly.

  • Keep the furnace area clean: Clear surrounding space for safe operation and efficient heating of the 96% AFUE gas furnace.
