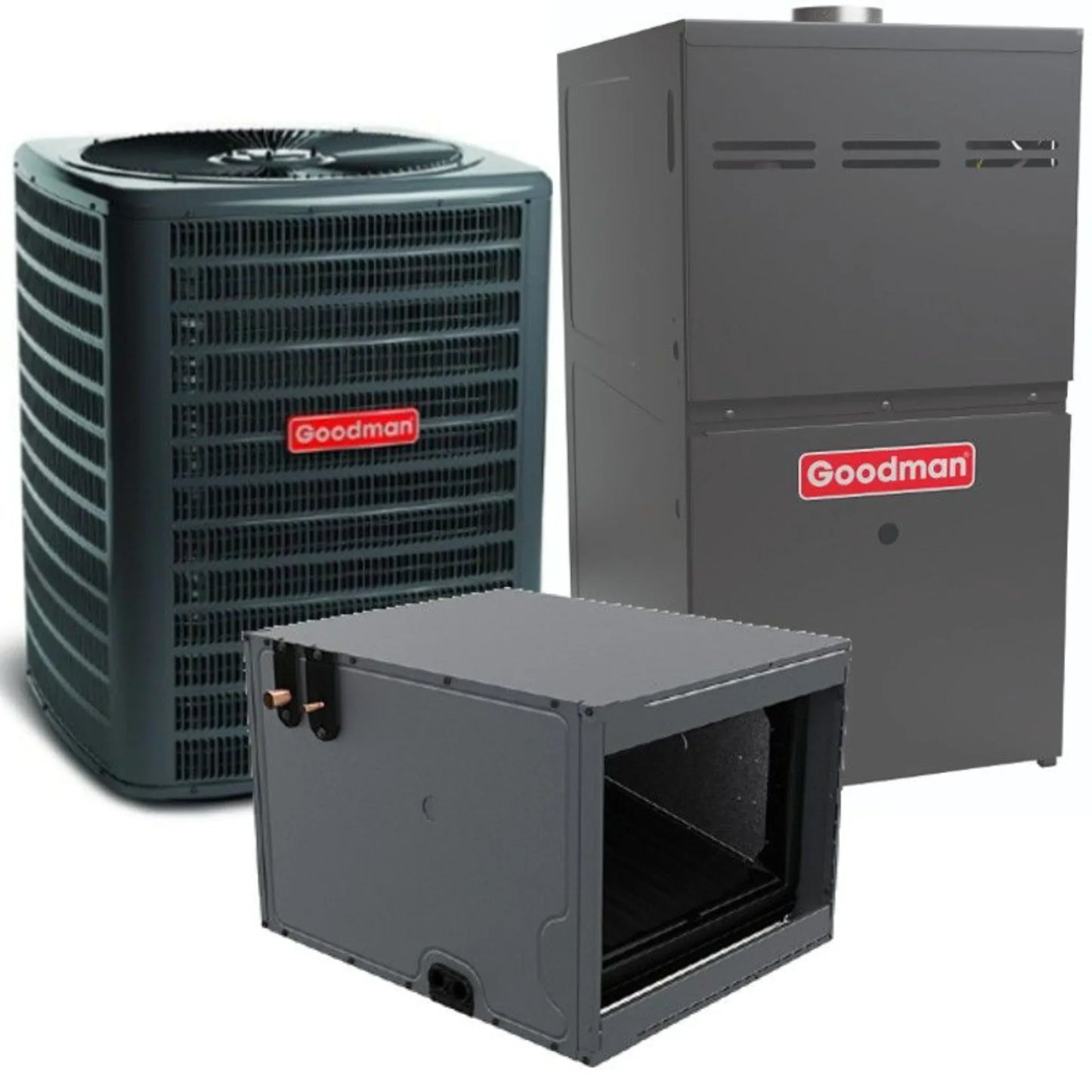

Goodman - 2 Ton/60,000 BTU 80% AFUE Gas Furnace and Air Conditioner System - Horizontal - 14.5 SEER2 - R32 - GLXS3BN2410

Goodman - 2 Ton/60,000 BTU 80% AFUE Gas Furnace and Air Conditioner System - Horizontal - 14.5 SEER2 - R32 - GLXS3BN2410

$3,255.99 USD
$4,340.00 USD $3,255.99 USD
Oferta Agotado

Descripción

Features
  • Ideal size to cover a medium-sized house
  • 2 ton, 13.4 SEER2 AC-only condenser
  • R32: Complies with Clean Air Act New Refrigerant Requirements
  • Low sound output
  • Fully charged for up to 15' of line set
  • Factory-installed filter drier
  • 2.5 ton horizontal evaporator coil
  • Can be used with heat pump and AC-only condensers
  • R32: Complies with Clean Air Act New Refrigerant Requirements
  • Galvanized, embossed, and insulated coil cabinet to protect the coil and prevent air leakage
  • Factory-installed TXV kit
  • This furnace is ideal to heat a medium-size house (in average climate conditions)
  • 60,000 BTU 80% AFUE two stage variable speed natural gas furnace
  • Requires metal flue venting
  • Can be used in the upflow or horizontal orientation
  • Can be converted to propane with an LP conversion kit (sold separately)
  • Innovative design for electrical efficiency, safety, and lower sound output
Specifications
2 Ton 13.4 SEER2 Goodman Air Conditioner Condenser - R32
SKU GLXS3BN2410
Weight 130.000000
Manufacturer Goodman
Replaces GSX130241 and GSXN3N2410
Product Features New Refrigerant Compliant
Cooling BTU 24,000
Decibel Level (dBA) 74
Horsepower 1/8 HP
Refrigerant R32
SEER2 13.4
Condenser Stages Single Stage
Compressor Type Rotary
Liquid Line 3/8"
Suction Line 3/4"
Liquid Valve Size 3/8"
Suction Valve Size 3/4"
Electrical 208 / 230 V. 1 Phase 60 Hz
Max Breaker Size 15 Amps
Min. Breaker Size 10.9 Amps
Tonnage 2 Ton
Connection Sweat
Height 27.5"
Width 26"
Depth 26"
Manual
What our Experts Think

  • All‑Season Comfort Package: The Goodman GLXS3BN2410 HVAC System combines a **2 ton (≈60,000 BTU) cooling system with an 80% AFUE gas furnace, delivering reliable heating and cooling in one horizontal‑ready package.

  • Dependable Heating: The 80% AFUE furnace produces steady warmth with a multi‑speed blower for quieter operation and balanced airflow — ideal for moderate climates where energy efficiency and comfort matter.

  • Efficient Cooling: 14.5 SEER2 efficiency on the air conditioner helps reduce summer energy use while maintaining comfortable indoor temperatures throughout the cooling season.

  • R32 Refrigerant Advantage: Uses R32 refrigerant, offering improved heat transfer efficiency and a smaller environmental footprint compared with older refrigerants.

  • Horizontal Installation Ready: Designed for horizontal duct configurations, making it a great fit for attics, crawlspaces, and low‑clearance mechanical areas.

  • Matched System Performance: Engineered as a coordinated furnace + AC system to ensure balanced airflow, consistent capacity, and reliable seasonal performance.

  • Goodman Value & Reliability: Combines solid heating and cooling efficiency with flexible installation, making it a practical, cost‑effective solution for year‑round home comfort.


Q&A

Q: What’s included in this HVAC system?
A: This matched system includes a 2 ton R32 air conditioner condenser (GLXS3BN2410) with 14.5 SEER2 cooling, a 60,000 BTU 80% AFUE gas furnace, and a horizontal evaporator coil (CHPTA2426B3) designed for horizontal installation.

Q: What cooling performance does the system provide?
A: The outdoor unit delivers 2 ton (≈24,000 BTU) cooling with up to 14.5 SEER2 efficiency, which helps balance energy savings and comfort in moderate climates.

Q: What does 80% AFUE mean for heating?
A: 80% AFUE means about 80 ¢ of every fuel dollar becomes usable heat, offering standard‑efficiency heating that’s reliable and cost‑effective.

Q: What refrigerant does this system use?
A: This system uses R32 refrigerant, a modern, energy‑efficient refrigerant with lower environmental impact than many older types.

Q: Is it suitable for horizontal installation?
A: Yes — the system is configured for horizontal installation, ideal for spaces with limited vertical clearance like attics, closets, or crawlspaces.

Q: What type of compressor and stages does it have?
A: The AC uses a single‑stage compressor for simple, dependable operation and consistent cooling performance.

Q: What are the benefits of matched components?
A: Matched components ensure optimized airflow, enhanced reliability, balanced heating & cooling performance, and full warranty compatibility compared with mismatched parts.


Maintenance Tips

  • Replace Air Filters Regularly: Inspect monthly and replace every 1–3 months to maintain airflow and protect both furnace and AC components.

  • Keep Vents & Registers Clear: Ensure supply and return vents are unobstructed for consistent heating and cooling.

  • Inspect Furnace Venting: Check intake and exhaust pipes for blockages or damage to maintain safe operation.

  • Clean Around the Units: Maintain 2–3 ft clearance around furnace and condenser to prevent dust buildup and allow proper airflow.

  • Check Thermostat & Electricals: Verify thermostat settings, gas supply, and 115V/208–230V circuits are functioning properly.

  • Monitor System Performance: Listen for unusual noises from the blower or condenser; reduced heating or cooling efficiency may indicate maintenance needs.

  • Schedule Annual Professional Service: A licensed HVAC technician should inspect burners, heat exchanger, gas pressure, AC refrigerant charge, and safety controls yearly.
