Goodman - 3.5 Ton - 21" Height Horizontal Cased Evaporator Coil TXV - R32 - CHPTA4230C3

Goodman - 3.5 Ton - 21" Height Horizontal Cased Evaporator Coil TXV - R32 - CHPTA4230C3

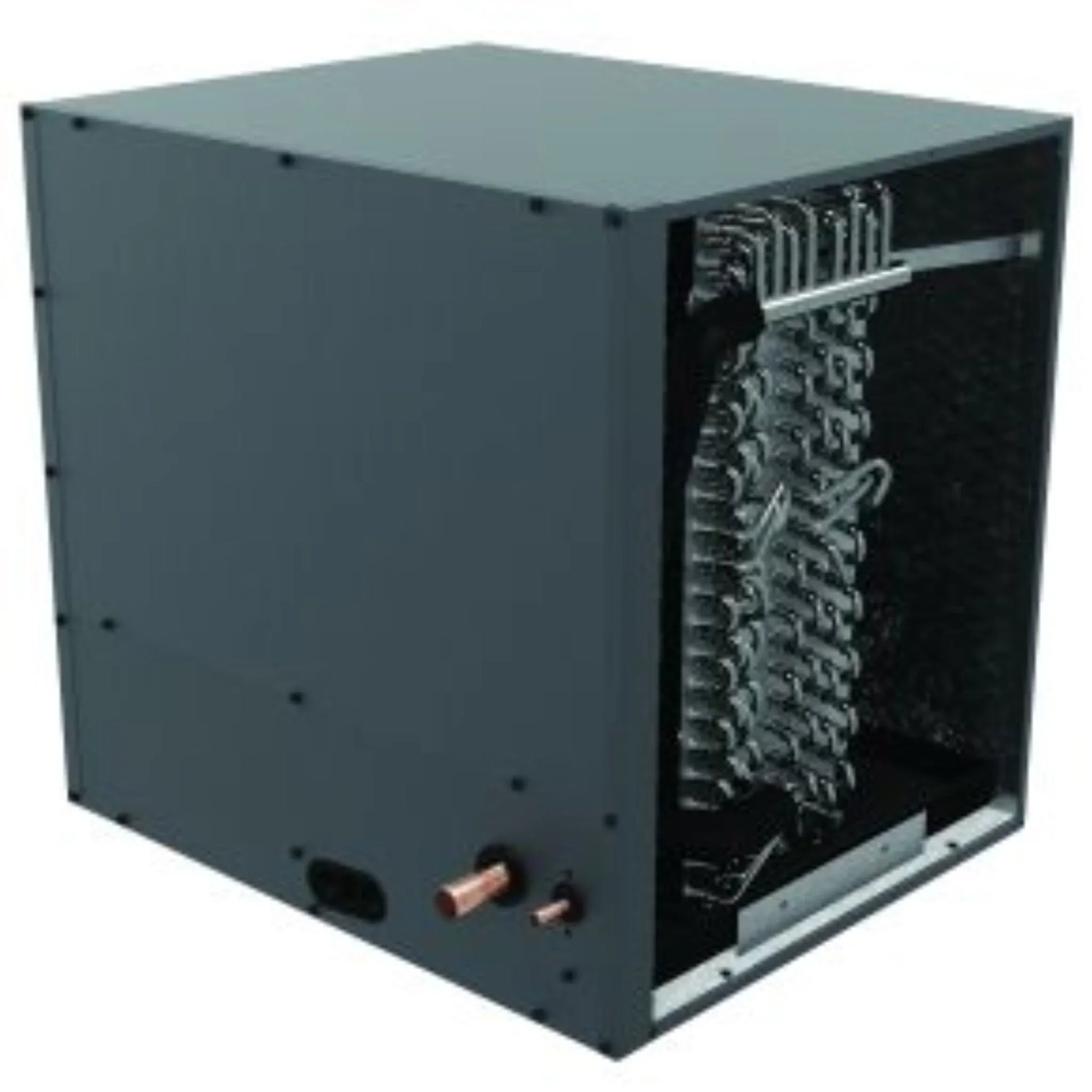

The Goodman CHPTA4230C3 evaporator coil is ready for any horizontal installation that you need it for. With a built-in TXV kit for efficiency, the CHPTA4230C3 lives up to Goodman's expectations to provide an enhanced comfort with a superior efficiency, all while staying within your budget. If you want the best possible coil for your home, this is it.

Features

• 3.5 ton horizontal evaporator coil
• Can be used with heat pump and AC-only condensers
• R32: Complies with Clean Air Act New Refrigerant Requirements
• Galvanized, embossed, and insulated coil cabinet to protect the coil and prevent air leakage
• Factory-installed TXV kit


Specifications

Manual

• Installation Manual
• Spec Sheet

What our Experts Think

• Perfect Match for 3.5‑Ton Systems: Designed to support 42,000 BTU cooling capacity, making it an excellent evaporator coil for mid‑to‑large residential air conditioners or heat pump systems.

• Factory‑Installed TXV for Better Performance: The thermal expansion valve (TXV) ensures precise refrigerant control, improving cooling efficiency and steady airflow across varying conditions.

• Built for R‑32 Refrigerant: Optimized for R‑32 refrigerant, offering improved heat transfer and better environmental performance than older refrigerants.

• 21″ Height Horizontal Design: Horizontal, low‑profile configuration fits easily into tight mechanical spaces such as attics, closets, or crawlspaces.

• Durable Aluminum Coil Construction: Aluminum tube‑and‑fin design delivers strong corrosion resistance and dependable heat exchange for long service life.

• Moisture & Condensate Protection: Includes foil‑faced insulation and corrosion‑resistant drain pan to help reduce moisture buildup and extend component life.

• Service‑Ready Accessibility: Front access panels and standardized connections make installation and maintenance straightforward for HVAC professionals.

Q&A

Q: What size capacity is the Goodman CHPTA4230C3 evaporator coil?
A: The Goodman CHPTA4230C3 is a 3.5 Ton horizontal cased evaporator coil, ideal for residential HVAC systems up to ~42,000 BTU cooling capacity.

Q: What refrigerant does this coil use?
A: This evaporator coil is designed for R‑32 refrigerant, supporting modern high‑efficiency air conditioners and heat pumps.

Q: Does the CHPTA4230C3 include a metering device?
A: Yes — it comes with a factory‑installed thermal expansion valve (TXV) for optimized refrigerant flow and improved system performance.

Q: What installation orientation is supported?
A: It’s built for horizontal installation, suitable for attic or under‑floor setups where airflow is oriented sideways.

Q: What are the key dimensions?
A: The coil has a 21″ height and standard horizontal casing dimensions designed to fit common residential HVAC cabinets and attic spaces.

Q: What materials/features improve durability?
A: Features all‑aluminum tubing and fins for efficient heat transfer and corrosion resistance, plus a galvanized steel cased cabinet for structural strength.

Q: What serviceability and maintenance benefits does it include?
A: The design includes accessible service panels, rust‑resistant drain pan, and insulated casing for easier maintenance and reduced condensation issues.

Q: What line sizes are typically compatible?
A: Standard residential installations use 3/8″ liquid and 7/8″ suction line connections, compatible with most matched outdoor units.

Q: What applications is this coil best suited for?
A: It’s ideal for residential air conditioning and heat pump systems when paired with a matching outdoor condenser for balanced performance.

Maintenance Tips

• Replace or clean air filters every 1–3 months to maintain proper airflow and prevent dust buildup on the coil.

• Inspect and clean the evaporator coil annually to ensure efficient heat transfer and optimal cooling performance.

• Keep the condensate drain pan and drain line clear to avoid water overflow, clogs, and mold growth.

• Check refrigerant line connections (3/8" liquid, 7/8" suction) for leaks or damaged insulation.

• Verify TXV (thermal expansion valve) operation for correct refrigerant flow and system efficiency.

• Inspect coil cabinet and insulation to prevent air leaks and condensation issues.

• Maintain a clean surrounding area to reduce dust and moisture accumulation near the unit.

• Schedule annual professional HVAC maintenance to check coil condition, refrigerant charge, and overall system performance.
