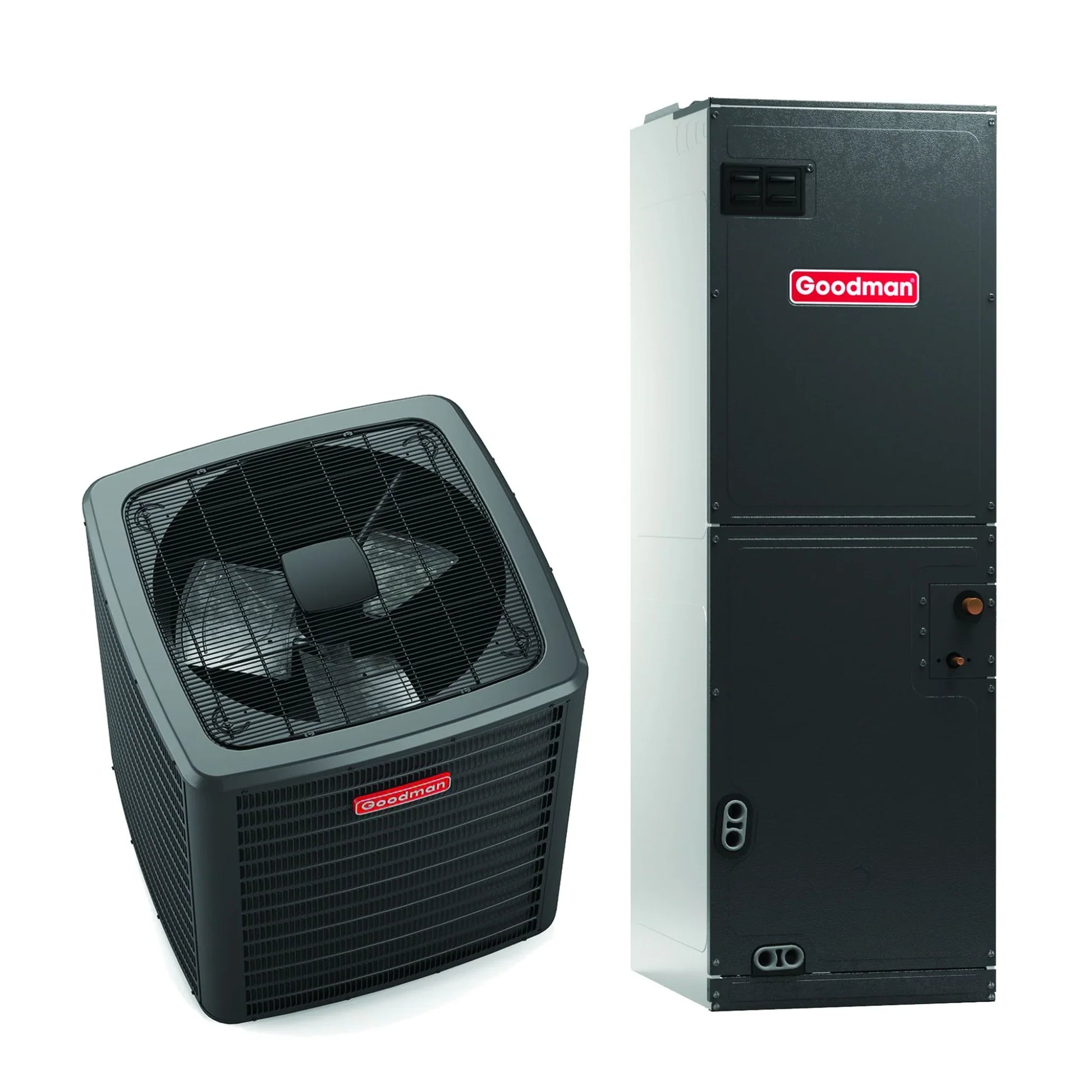

Goodman - 5 Ton/60,000 BTU - Multi-Positional - Heat Pump Split System - 14.5 SEER2 - R32 - GLZS4BA6010

Goodman - 5 Ton/60,000 BTU - Multi-Positional - Heat Pump Split System - 14.5 SEER2 - R32 - GLZS4BA6010

$4,570.99 USD
$6,094.00 USD $4,570.99 USD
Oferta Agotado

Descripción

Goodman - 5 Ton/60,000 BTU - Multi-Positional - Heat Pump Split System - 14.5 SEER2 - R32 - GLZS4BA6010

The Goodman Heat Pump Split System is a great choice to keep your home comfortable all season long. With tons of extra features and a great price, the Goodman Heat Pump Split System is a perfect choice for all of your heating and cooling needs.

Features
  • Ideal size to cover a smaller house in ideal climates

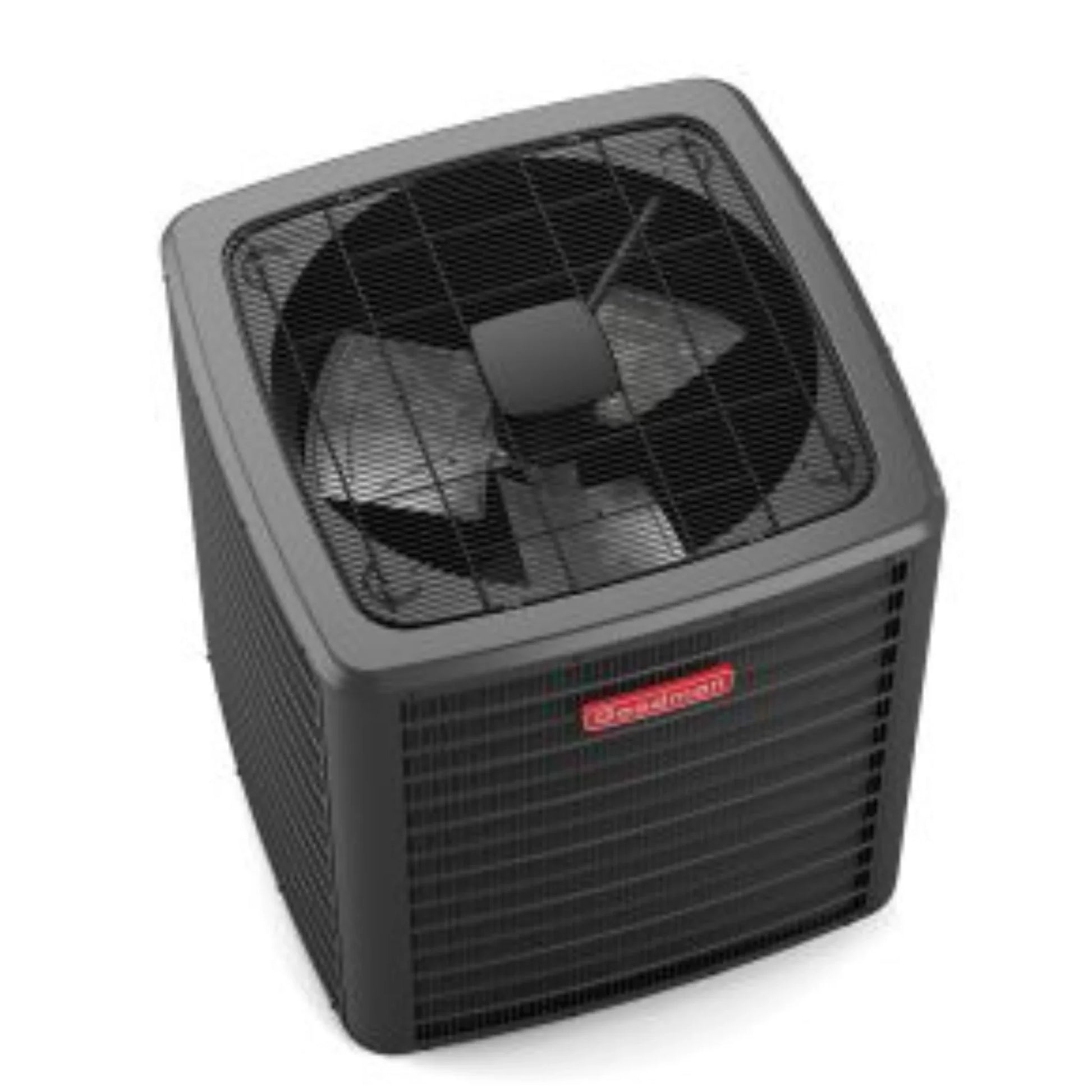

  • 5 ton, 14.3 SEER2 heat pump condenser
  • R32: Complies with Clean Air Act New Refrigerant Requirements
  • Low sound output
  • Fully charged for up to 15' of line set
  • Factory-installed bi-flow filter drier

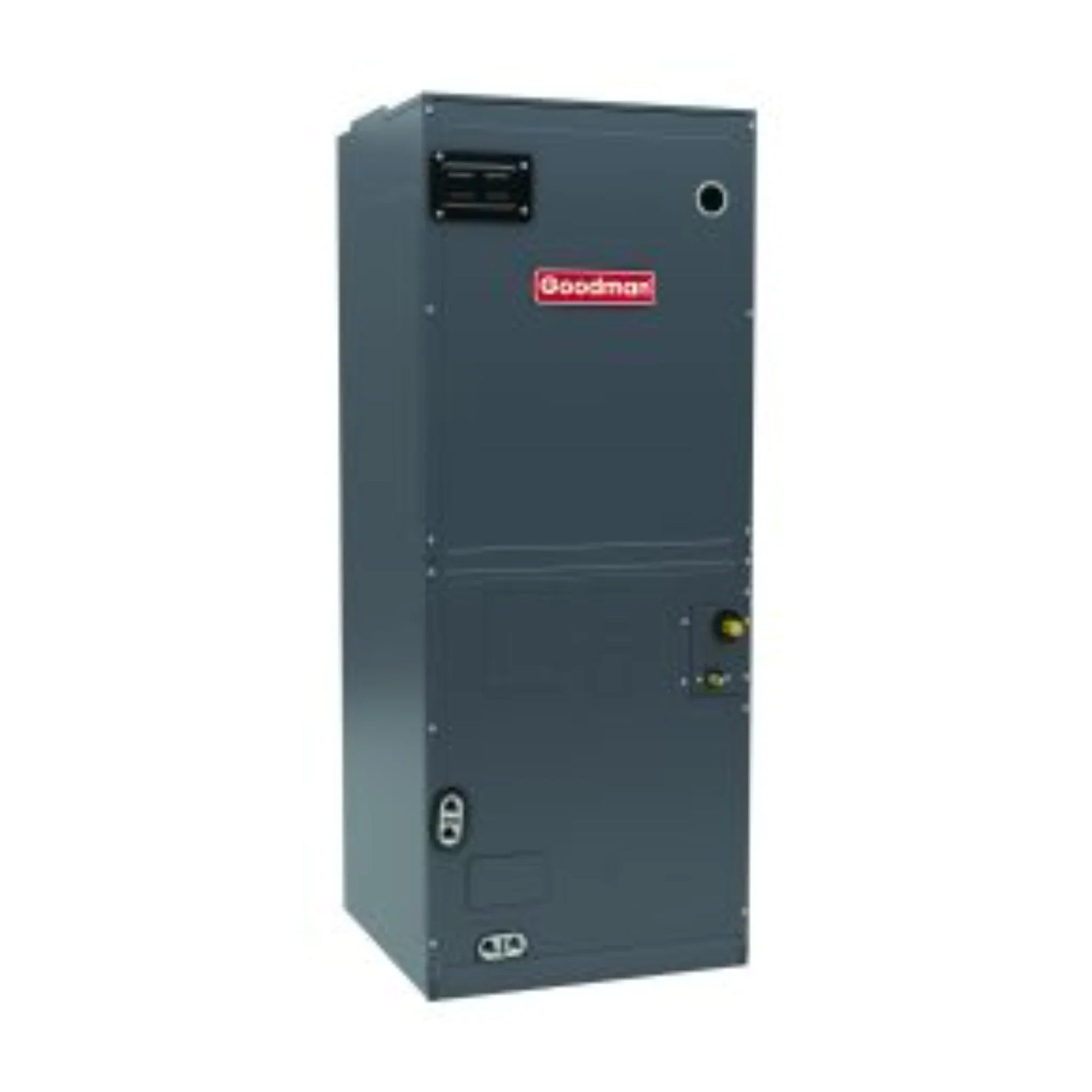

  • Air Handler
  • 5 ton air handler
  • Electric heat compatible
  • Optimized for use with R-32 refrigerant
  • Multi-speed, direct drive ECM blower motor
  • Multi-positional (upflow, downflow, or horizontal)
Specifications
5 Ton 14.3 SEER2 Goodman Heat Pump - R32
SKU GLZS4BA6010
Weight 320.000000
Manufacturer Goodman
Replaces GSZ140601, GSZB406010
HSPF2 7.8
Cooling BTU 60,000
Heating BTU 60,000
Blower Motor Single Speed PSC Motor
Decibel Level (dBA) 75
Horsepower 1/4 HP
Refrigerant R32
SEER2 14.3
Condenser Stages Single Stage
Compressor Type Scroll
Liquid Line 3/8"
Suction Line 1 1/8"
Liquid Valve Size 3/8"
Suction Valve Size 7/8"
Electrical 208/230v 1 Phase 60 Hz
Max Breaker Size 50 Amps
Min. Breaker Size 31.1 Amps
Tonnage 5 Ton
Connection Sweat
Height 41 3/4"
Width 35 1/2"
Depth 35 1/2"
Manual
What our Experts Think

  • Robust 5‑Ton Heating & Cooling: Provides 60,000 BTU capacity for year‑round comfort in medium to larger homes, delivering dependable cooling and heat pump operation in a single system.

  • High Efficiency (16 SEER2 / 8.2 HSPF2): 16 SEER2 rating helps lower energy bills and improve efficiency compared to lower‑SEER systems, without the premium cost of variable‑speed models.

  • Single‑Stage Scroll Compressor: A single‑stage compressor focuses on reliability and simplicity—ideal for homeowners and property managers who want dependable performance with fewer moving parts.

  • R‑32 Refrigerant Ready: Uses R‑32 refrigerant, which improves heat‑transfer efficiency and reduces environmental impact compared to older refrigerants.

  • Durable Outdoor Construction: Heavy‑gauge galvanized‑steel cabinet with powder‑coat finish and protective coil guard stand up to weather and outdoor conditions for long‑lasting durability.

  • SmartShift® Defrost Control: Includes reliable defrost control for smoother heating cycles and reduced noise during winter operation.

  • Service‑Friendly Features: Factory‑installed service valves, high/low pressure switches, crankcase heater, muffler, and easy‑access gauge ports support faster maintenance and improved system protection.

  • Multi‑Positional Installation Ready: Pairs well with compatible multi‑positional air handlers for flexible upflow/downflow/side‑flow configurations to suit various duct layouts.


Q&A

Q: What size and application is the Goodman CHPTA3630C3 coil?
A: The Goodman CHPTA3630C3 is a 3 ton horizontal cased evaporator coil designed for residential HVAC split systems needing efficient indoor heat exchange.

Q: What refrigerant does this evaporator coil support?
A: It’s optimized specifically for R‑32 refrigerant, meeting modern efficiency and environmental standards.

Q: Does this coil include a metering device?
A: Yes — it comes with a factory‑installed thermal expansion valve (TXV) for accurate refrigerant flow control in cooling or heat pump applications.

Q: What are the key construction features?
A: Features all‑aluminum evaporator coil, galvanized steel cased cabinet with foil‑faced insulation, and rust‑resistant, UV‑protected thermoplastic drain pans designed for durability and easy maintenance.

Q: What are the physical specifications?
A: Cabinet measures about 30″ W × 21″ H × 21″ D, with 3/8″ liquid and 7/8″ suction line connections for standard residential HVAC installs.

Q: Is this coil certified and safe?
A: Yes — the CHPTA3630C3 is AHRI certified and ETL listed for tested performance and safety compliance.

Q: What installation orientation is supported?
A: Built for horizontal installation, making it suitable for attic, crawlspace, or sideways airflow applications.


Maintenance Tips

  • Replace or clean air filters every 1–3 months to maintain proper airflow and prevent dust buildup on the coil.

  • Inspect and clean the evaporator coil annually to ensure efficient heat transfer and consistent cooling performance.

  • Keep the condensate drain pan and drain line clear to prevent water overflow, clogs, and mold growth.

  • Check refrigerant line connections (3/8" liquid, 7/8" suction) for leaks or damaged insulation.

  • Verify TXV (thermal expansion valve) operation for correct refrigerant flow and system efficiency.

  • Inspect coil cabinet and insulation to prevent air leaks and condensation issues.

  • Maintain a clean surrounding area to reduce dust and moisture near the unit.

  • Schedule annual professional HVAC maintenance to check coil condition, refrigerant charge, and overall system performance.
