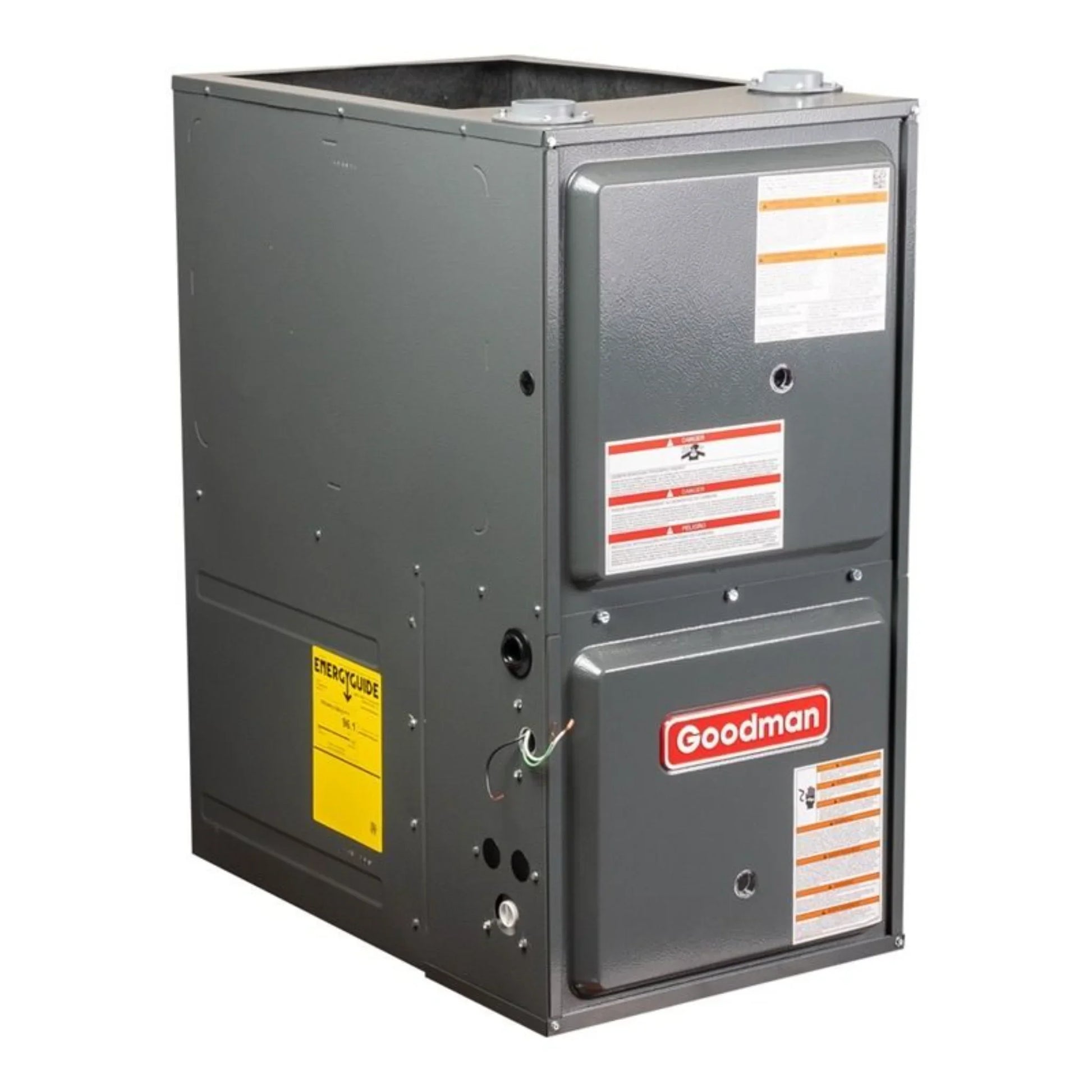

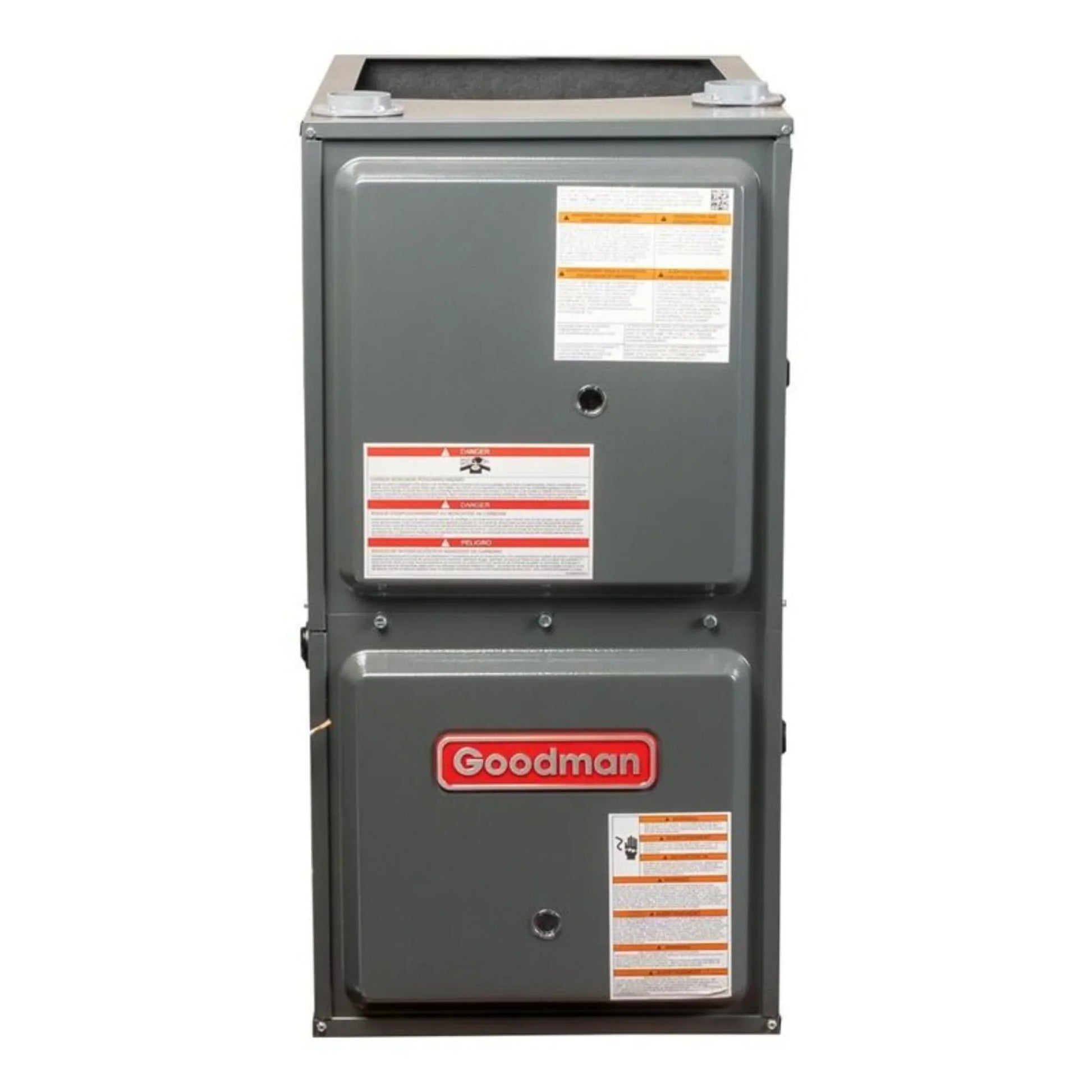

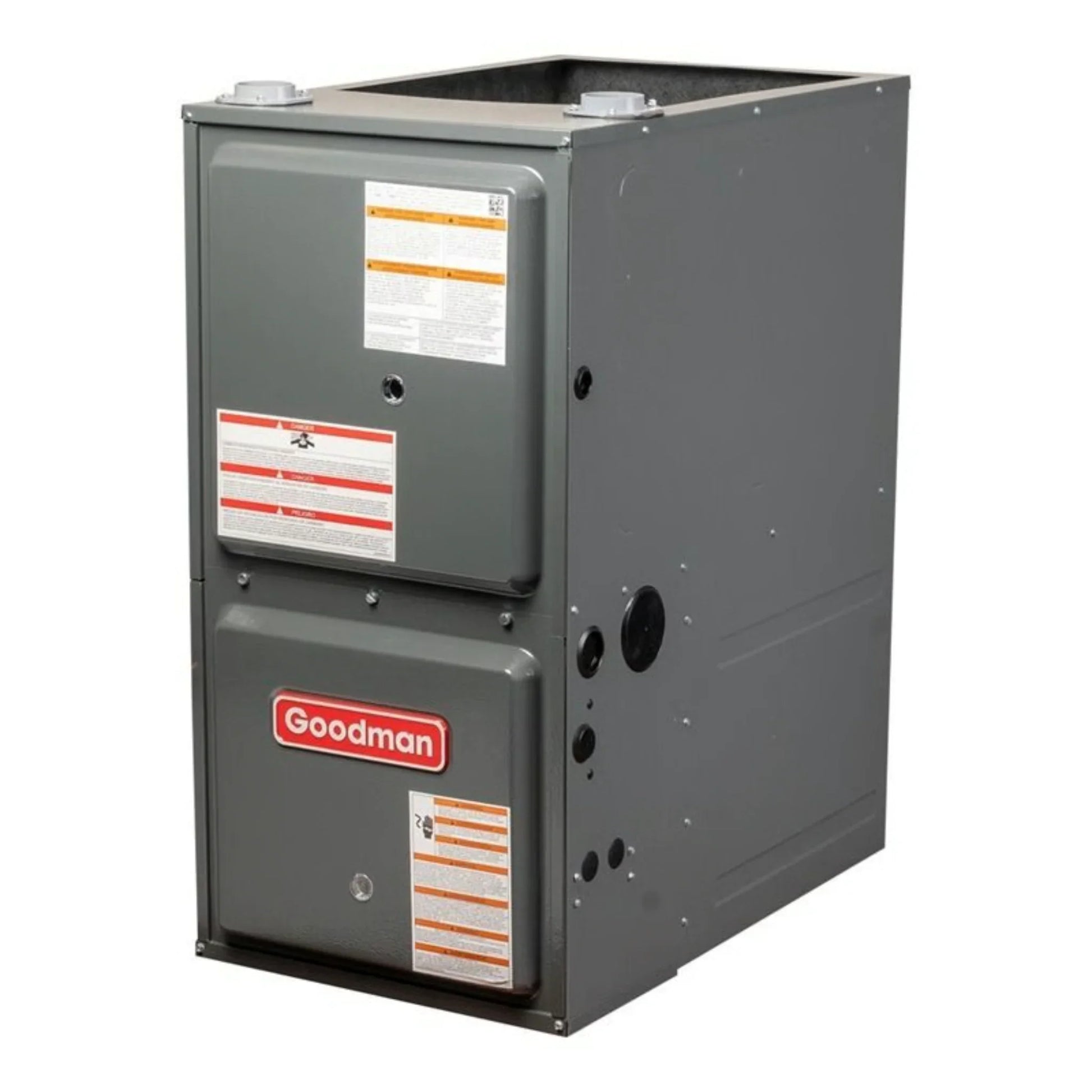

Goodman - 80,000 BTU 96% Gas Furnace - 17.5" Width - Downflow / Horizontal - Two Stage - 115V - R32 - GD9T960803BN

Goodman - 80,000 BTU 96% Gas Furnace - 17.5" Width - Downflow / Horizontal - Two Stage - 115V - R32 - GD9T960803BN

$1,920.99 USD
$2,560.00 USD $1,920.99 USD
Oferta Agotado

Descripción

Goodman - 80,000 BTU 96% Gas Furnace - 17.5" Width - Downflow / Horizontal - Two Stage - 115V - R32 - GD9T960803BN

The Goodman brand consistently brings efficiency and other cost-saving benefits and technology to their furnace. The GD9T960803BN gas furnace is no exception to Goodman's ingenuity in design, bringing you comfort at a high efficiency for any downflow or horizontal application.

Features
  • This furnace is ideal to heat a medium-sized house (depending on climate)
  • 80,000 BTU 96% AFUE natural gas furnace
  • Requires plastic/PVC flue venting
  • Complies with Clean Air Act New Refrigerant Requirements
  • Can be used in the downflow or horizontal orientation
  • Can be converted to an LP furnace with an optional conversion kit (sold separately)
  • Innovative design for electrical efficiency, safety, and lower sound output
Specifications
SKU GD9T960803BN
Weight (in lbs) 118.000000
AHRI Certificate Number 215225021
Airflow Direction Downflow/Horizontal
Exhaust Flue Requirement Plastic / PVC
R-32 Compliant Yes
Brand/Manufacturer Goodman
Product Features New Refrigerant Compliant
Furnace Efficiency / AFUE 96%
Heating BTU 80,000
Blower Motor 9-Speed - ECM
Maximum CFM 1200
Configuration Downflow/Horizontal
Energy Star Yes
Electrical 115 V. 1 Phase 60 Hz
Max Breaker Size 15 Amps
Min. Breaker Size 7.8 Amps
Burner Stages Two
Fuel Type Propane, Natural Gas
Height 34.5"
Width 17.5"
Depth 28.75"
Manual

What our Experts Think

  • High‑Efficiency Two‑Stage Heating (96% AFUE)
    The 96% AFUE rating means most fuel is turned into heat, improving comfort and lowering energy costs compared with lower‑efficiency models.

  • Two‑Stage Gas Valve for Better Comfort
    Dual‑stage operation adjusts output between low and high heat, reducing temperature swings and improving overall comfort throughout the home.

  • Strong 80,000 BTU Output
    With 80,000 BTU capacity, this furnace is well‑suited for medium to larger homes, providing consistent warmth even in colder climates.

  • Flexible Downflow/Horizontal Installation
    The multi‑directional airflow design fits a variety of duct layouts and space constraints — ideal for attics, crawl spaces, or closets.

  • Reliable Multi‑Speed ECM Blower Motor
    The ECM blower enhances airflow control and efficiency, often resulting in quieter operation and better air distribution.

  • Modern R‑32 Compatibility
    Designed for use with R‑32 refrigerant systems, aligning with newer HVAC equipment standards for improved performance.

  • Smart Diagnostics and Easy Serviceability
    Built‑in self‑diagnostic controls help technicians quickly troubleshoot issues, reducing service time and cost.

Q&A

Q: What size home is this furnace best for?
A: With 80,000 BTU output, it’s ideal for medium to large homes depending on climate, insulation, and ductwork.

Q: How efficient is this furnace?
A: It has a 96% AFUE efficiency rating, meaning most fuel is converted to heat for lower energy costs.

Q: What installation orientations are supported?
A: Supports Downflow and Horizontal configurations, offering flexible placement in attics, crawl spaces, or closets.

Q: What makes this model two‑stage?
A: The two‑stage gas valve provides more consistent comfort and quieter operation by running at a lower stage most of the time and increasing only when needed.

Q: What electrical requirements does it have?
A: Operates on 115V power, standard for residential furnace installs.

Q: What refrigerant system compatibility does it have?
A: Designed to work with HVAC systems using R‑32 refrigerant.

Q: Is this furnace compatible with modern thermostats?
A: Yes — it works with standard and smart thermostats for efficient temperature control.

Q: What benefits does two‑stage operation offer?
A: Provides better temperature control, fewer on/off cycles, improved humidity control, and quieter comfort.

Q: How reliable is this model?
A: Goodman furnaces are known for durable construction and dependable performance, backed by solid manufacturer support.

Q: What warranty options are available?
A: Typically includes a 10‑year limited parts and heat exchanger warranty when registered after installation.

Maintenance Tips

  • Replace air filters every 1–3 months to maintain airflow and efficiency.

  • Keep supply and return vents clear of furniture, dust, and debris.

  • Maintain 2–3 feet of clearance around the furnace for proper ventilation.

  • Inspect condensate drain line regularly to prevent clogs from high-efficiency operation.

  • Check thermostat settings and operation to ensure smooth two-stage heating cycles.

  • Examine vent pipes and connections for blockages or leaks.

  • Listen for unusual noises such as rattling or squealing, which may indicate mechanical issues.

  • Clean blower compartment and interior surfaces to prevent dust buildup.

  • Test carbon monoxide detectors to ensure safety when using gas heating.

  • Schedule annual professional maintenance to inspect burners, heat exchanger, gas connections, and controls
