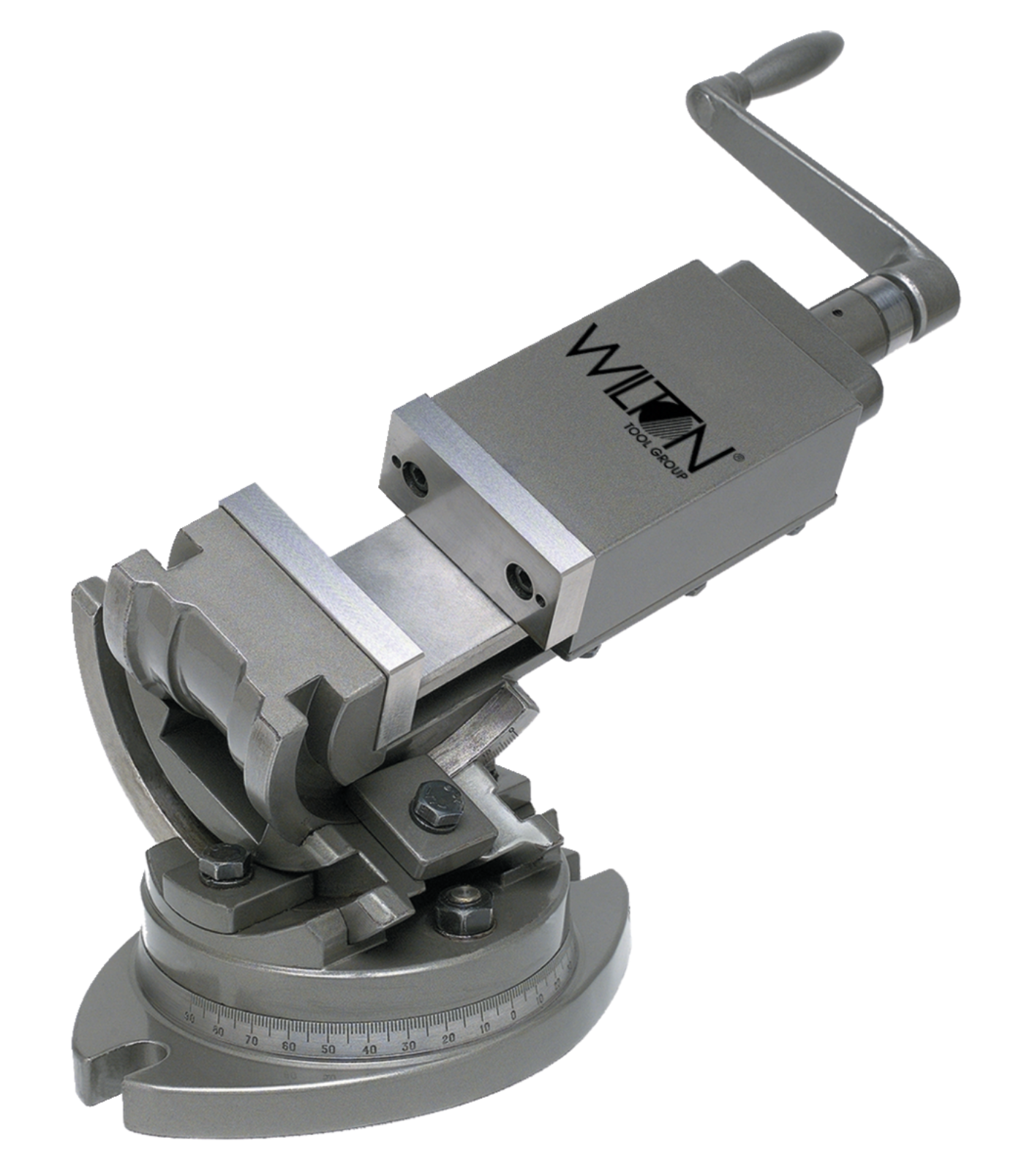

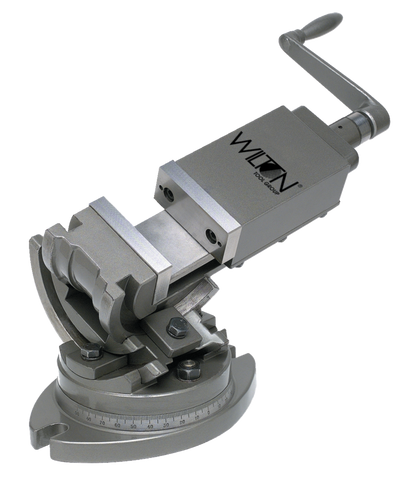

WILTON 3" 3-Axis Precision Tilting Vise - WL9-11701

WILTON 3" 3-Axis Precision Tilting Vise - WL9-11701

$602.99 USD
$802.99 USD $602.99 USD
Oferta Agotado

Descripción

WILTON 3" 3-Axis Precision Tilting Vise - WL9-11701

Wilton's line of 3 Axis Machine Vises are perfect for applications that require machining on an angle. These high precision vises are constructed of close grained, high tensile alloy castings. All boast 90 degree vertical and 180 degree horizontal indexing, 360 degree swivel base, and 90 degree tilting range, all backed by

Features
  • 360° swivel base.
  • Accurately indexed for 3-way angular work.
  • All ground surfaces are made to close accuracy.
  • Bases have keyways and bolt slots for machine mounting.
  • Durable Polychromatic finish.
  • Ergonomically designed all steel handles with spring loaded ball attachment.
  • Hardness of jaws is 55 ± 3 HRC.
  • Jaw plates hardened and ground.
  • Perfect vise for 3-axis jobs in milling, drilling, grinding, shaping, and jig boring.
Specifications
Jaw Depth 1-5/16"
Jaw Width 3"
What our Experts Think

  • True 3‑Axis Precision Control: The WILTON 3″ 3‑Axis Precision Tilting Vise – WL9‑11701 supports machining on three axes with 90° vertical indexing, 180° horizontal indexing and ±45° tilting range, giving you flexible angle positioning for complex parts and setups.

  • Built for Accurate Machining: Made from close‑grained, high‑tensile alloy castings with hardened and ground jaw plates (≈ 55 ± 3 HRC), this vise holds workpieces securely while maintaining precision under heavy cutting, drilling, and shaping.

  • Smooth Rotating Base: The 360° swivel base lets you orient and lock workpieces easily, reducing setup changes and improving workflow efficiency on milling or drilling machines.

  • Machine‑Mount Ready: Base keyways and bolt slots make it simple to attach to machine tables or workstations for stable, repeatable setups.

  • Easy, Ergonomic Adjustment: All‑steel handles with spring‑loaded ball attachment give comfortable, controlled operation during frequent repositioning.

  • Ideal for Precision Work: Experts rate this vise as a top choice for milling, drilling, grinding, shaping, and jig boring where repeatable accuracy and angular flexibility are essential.

Q&A

Q: What is this 3‑axis precision tilting vise used for?
A: It holds workpieces securely while allowing precise multi‑directional tilt adjustments for drilling, milling, and machining tasks.

Q: What does 3‑axis capability mean?
A: The vise tilts along three axes, enabling flexible positioning and accurate angular alignment.

Q: What is the jaw width of this vise?
A: It has a 3‑inch jaw width for firm and stable clamping of small to medium parts.

Q: Is this vise suitable for professional precision work?
A: Yes, it is designed for machinists, toolmakers, and precision engineering applications.

Q: What material is the vise made from?
A: It is constructed from durable, heavy‑duty metal for reliable, long‑lasting performance.

Q: Can it be mounted on a machine table?
A: Yes, it is designed for secure mounting on drill presses, milling machines, and workbenches.

Maintenance Tips

  • Clean jaws, slides, and tilting surfaces after each use to remove debris.

  • Lightly lubricate lead screws and tilt/rotate mechanisms for smooth operation.

  • Keep all surfaces dry to prevent rust and maintain precision.

  • Avoid overtightening to protect alignment and accuracy.

  • Store in a dry area; apply light rust protection if unused for extended periods.
