Goodman - 4 Tons/45,000 BTU Packaged Heat Pump Unit Dedicated Horizontal - SEER2 13.4 - Single Stage - 208V - R32 - GPHH34831

Goodman - 4 Tons/45,000 BTU Packaged Heat Pump Unit Dedicated Horizontal - SEER2 13.4 - Single Stage - 208V - R32 - GPHH34831

$4,012.99 USD
$5,350.00 USD $4,012.99 USD
Sale Sold out

Description

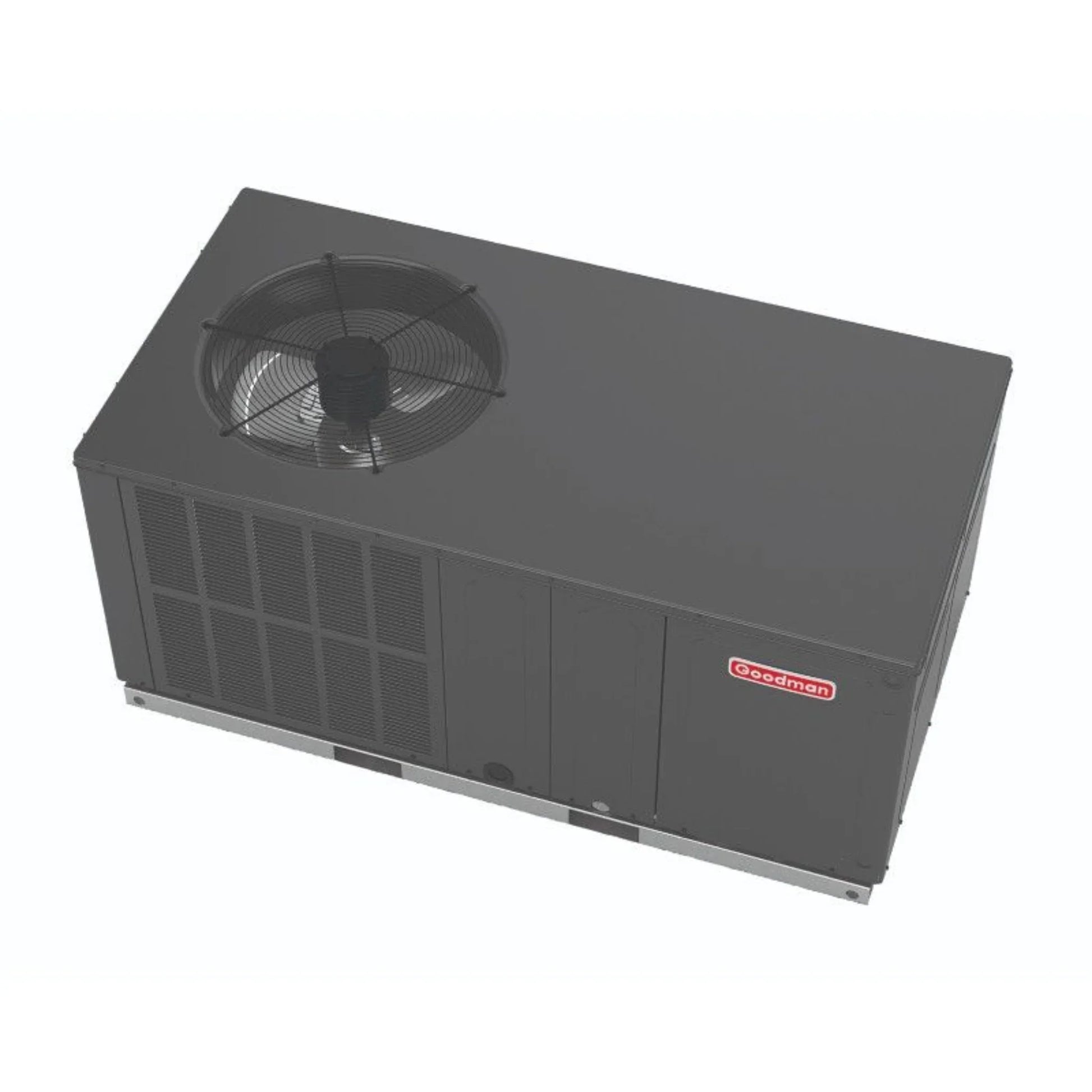

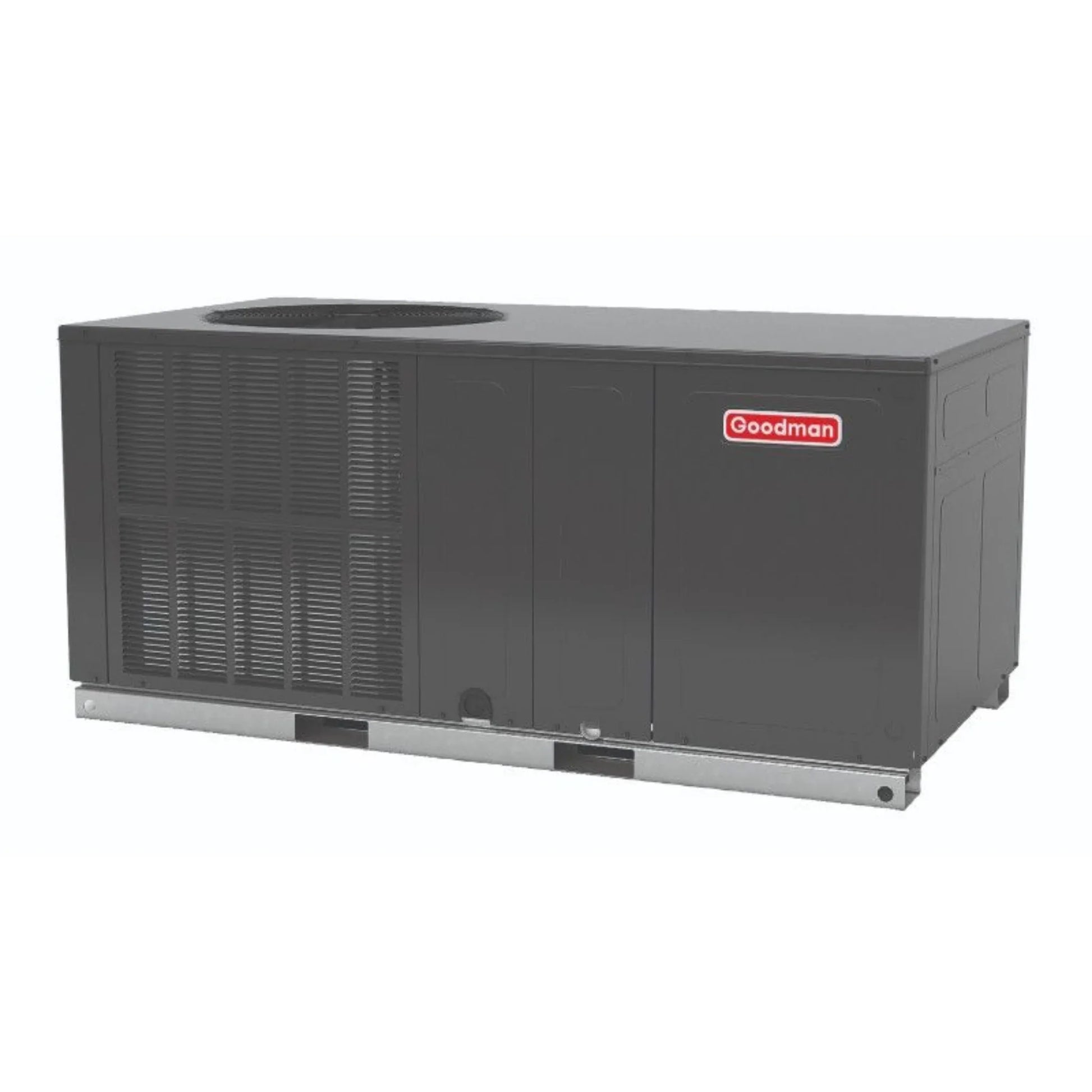

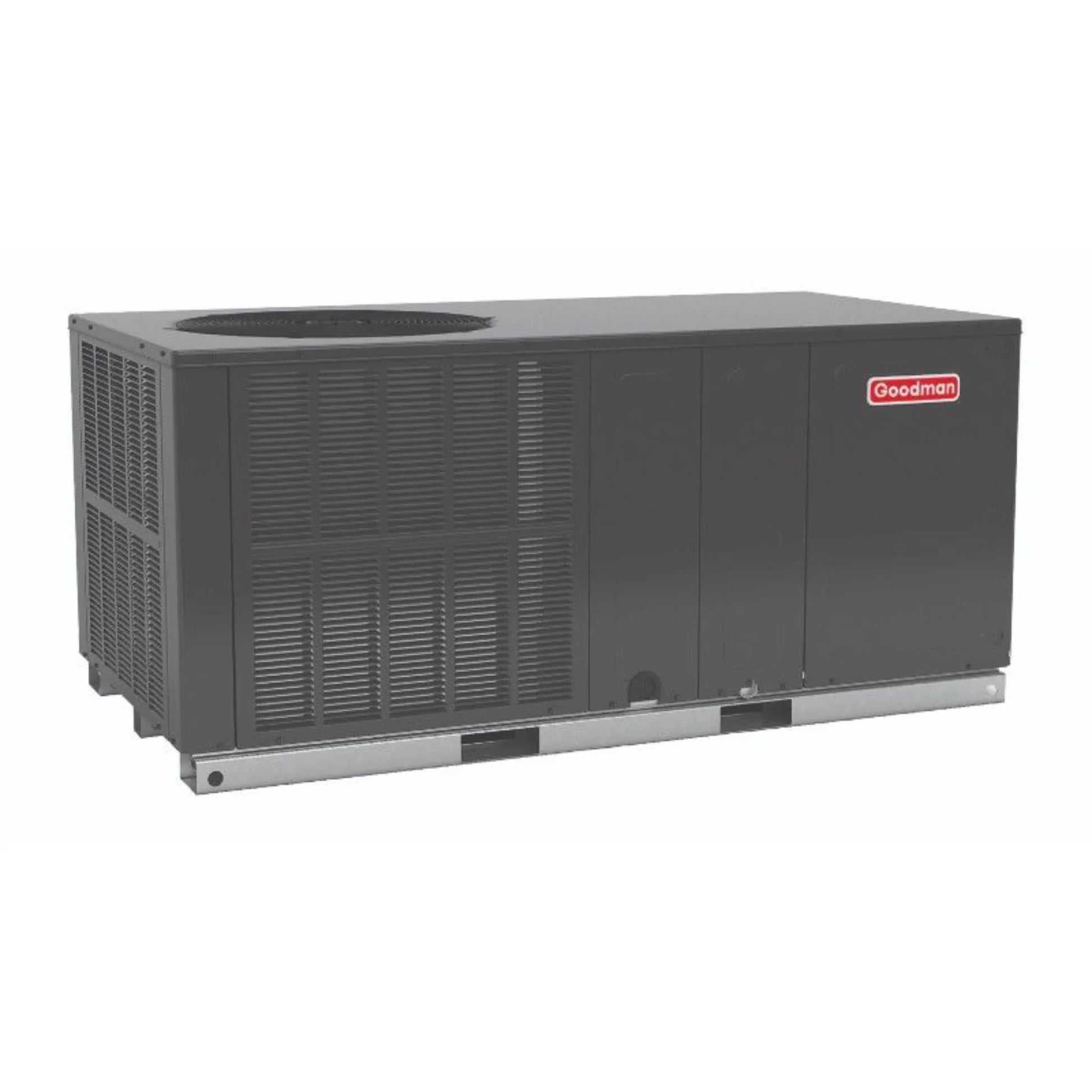

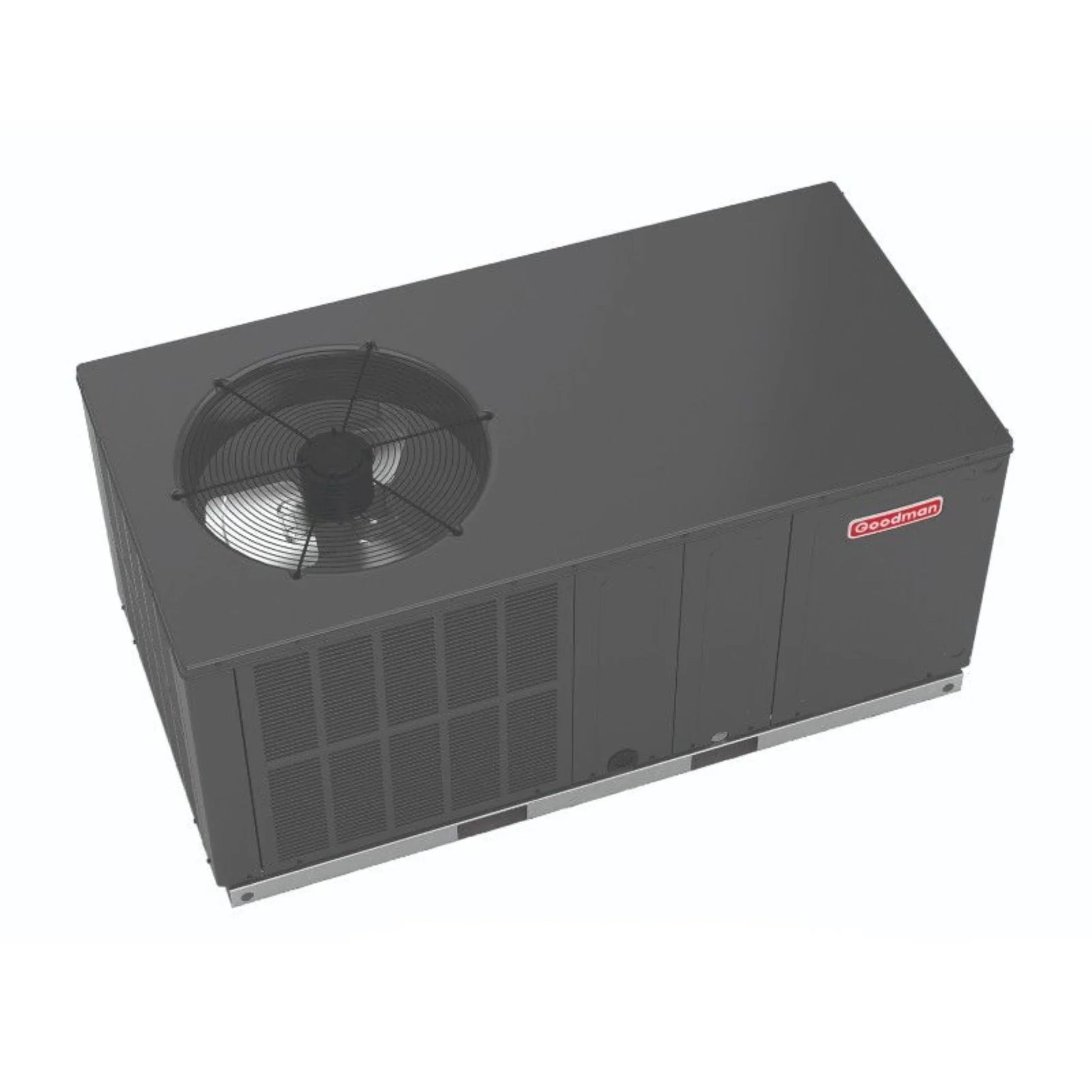

Goodman - 4 Tons/45,000 BTU Packaged Heat Pump Unit Dedicated Horizontal - SEER2 13.4 - Single Stage - 208V - R32 - GPHH34831

With its quiet horizontal discharge and ready-to-install pre-charged refrigerant system, the Goodman GPHH34831 heat pump packaged unit is ready as an inexpensive heating and cooling solution for any all-in-one application. At a basic efficiency rating and a reliability to last a long time, the GPHH34831 lives up to the Goodman name as it offers superior comfort and affordability. Utilizing advanced technology, the Goodman packaged heat pump efficiently transfers heat between the indoors and outdoors, providing both heating and cooling functionalities in a single unit for year-round comfort. With its straightforward installation process, it not only ensures convenience but it's also cost-efficient, making it an ideal choice for those seeking an energy-efficient and hassle-free heating and cooling solution.

Features
  • Can normally cover a larger house in average climates
  • 4 ton, 13.4 SEER2 heat pump packaged unit
  • Horizontal discharge
  • Fully charged
  • Low sound output
Specifications
SKU GPHH34831
Weight (in lbs) 410.000000
AHRI Certificate Number 208842408
Brand/Manufacturer Goodman
Replaces GPC1448H4C, GPC1448H4D, GPH1448H41
HSPF 8
Cooling BTU 40,000 BTU
Heating BTU 45,000 BTU
Decibel Level (dBA) 78 decibels
Electric Backup Heat Capabilities (Optional) 5 Kilowatts, 10 Kilowatts, 15 Kilowatts, 20 Kilowatts
Configuration Horizontal
Refrigerant R32
SEER2 (Efficiency) 13.4
Condenser Stages Single Stage
Compressor Type Scroll
Electrical 208 / 230 V. 1 Phase 60 Hz
Max Breaker Size 45 amps
Min. Breaker Size 29.2 amps
Tonnage 4 Ton
Height 34"
Width 66"
Depth 38.75"

Manual

What our Experts Think

  • Balanced efficiency: A 13.4 SEER2 rating delivers respectable energy performance for a packaged unit, improving operating costs over older systems while keeping purchase price sensible.

  • Two‑in‑one heating & cooling: As a heat pump, this unit provides both cooling and heating in one system—reducing installation complexity and saving space compared with separate furnace + AC setups.

  • Simple, reliable operation: The single‑stage compressor offers straightforward performance with fewer moving parts, which can translate to long‑term reliability and easier maintenance.

  • R‑32 refrigerant advantage: Uses R‑32 refrigerant, which enhances efficiency and has a lower global warming potential than many legacy refrigerants, aligning with modern HVAC environmental standards.

  • Horizontal configuration: Designed for dedicated horizontal installation, this unit is a good fit for crawl spaces, attics, or rooftop applications where upflow/downflow packaged units won’t fit.

  • HVAC‑friendly design: Factory‑installed features like filter drier and accessible service points make installation and servicing more convenient for technicians.

Q&A

Q: What is the heating and cooling capacity of the Goodman GPHH34831?
A: This unit provides 4 tons (45,000 BTU) capacity, delivering efficient heating and cooling for medium to large homes.

Q: What is the SEER2 efficiency rating?
A: The heat pump has a SEER2 rating of 13.4, offering reliable energy-efficient performance for year-round comfort.

Q: Is this a single-stage or multi-stage system?
A: The GPHH34831 is a single-stage unit, providing steady, dependable output for consistent indoor temperatures.

Q: What refrigerant does this heat pump use?
A: The system uses R32 refrigerant, which is eco-friendly and energy-efficient, reducing environmental impact.

Q: What type of installation is supported?
A: This is a dedicated horizontal packaged unit, ideal for tight spaces or rooftop installations where horizontal airflow is required.

Q: What are the electrical requirements?
A: The unit operates on 208V power, compatible with standard residential or commercial electrical setups.

Q: Is this heat pump suitable for year-round use?
A: Yes. The packaged heat pump provides both heating in winter and cooling in summer, making it a versatile all-in-one HVAC solution.

Maintenance Tips

  • Clean or replace air filters every 1–3 months to ensure proper airflow and efficiency.

  • Keep the outdoor unit clear of debris like leaves, grass, and dirt for optimal heat exchange.

  • Maintain 2–3 feet of clearance around the unit to support proper airflow.

  • Inspect refrigerant lines and insulation for wear or damage.

  • Check thermostat settings and heat/cool cycles to ensure the single-stage heat pump operates efficiently.

  • Rinse coils gently to remove dust buildup and maintain performance.

  • Schedule annual professional HVAC maintenance to check electrical components, refrigerant levels, and system functionality.
