Goodman - 5 Ton - 24.5" Height Horizontal Cased Evaporator Coil TXV - R32 - CHPTA6030D3

Goodman - 5 Ton - 24.5" Height Horizontal Cased Evaporator Coil TXV - R32 - CHPTA6030D3

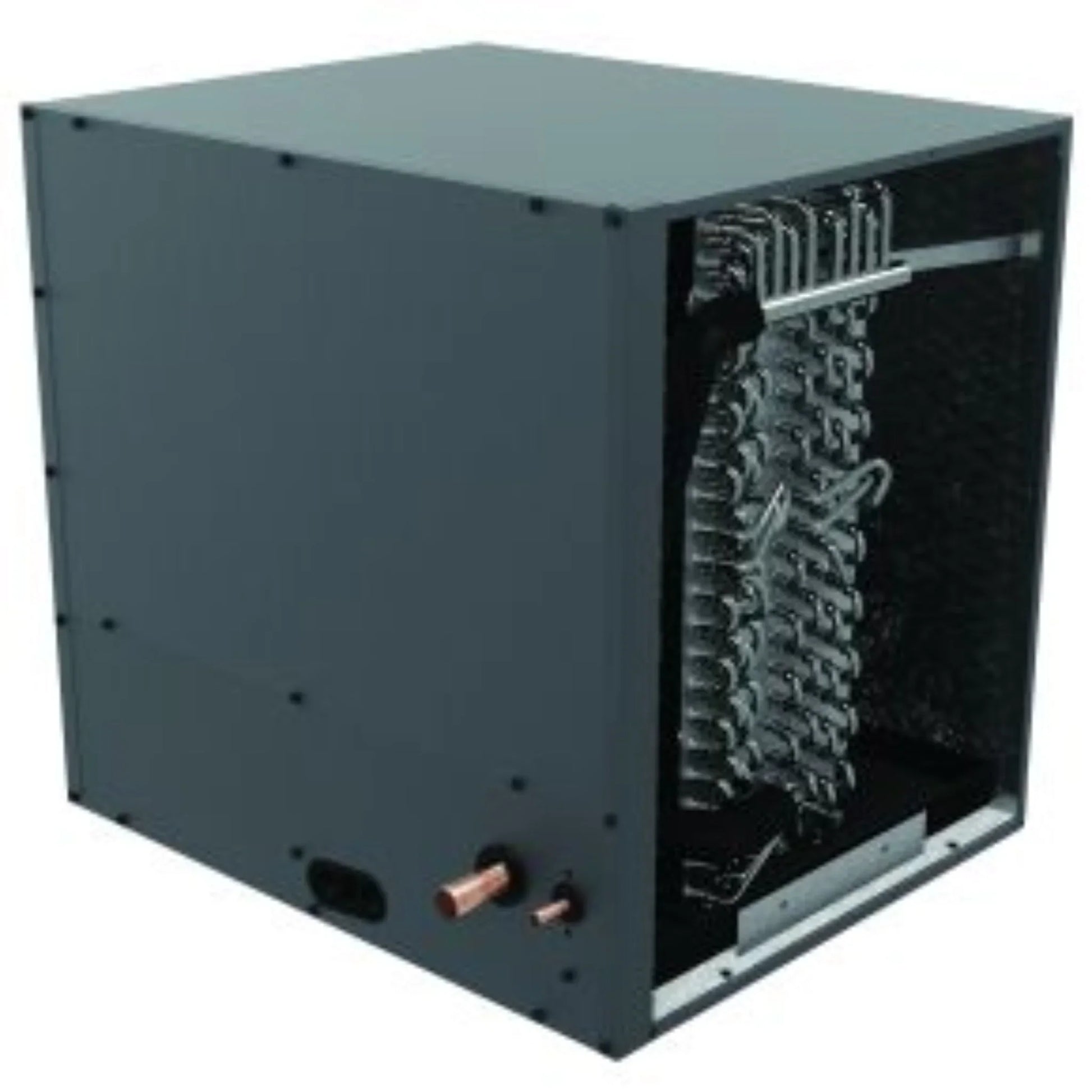

The Goodman CHPTA6030D3 evaporator coil is ready for any horizontal installation that you need it for. With a built-in TXV kit for efficiency, the CHPTA6030D3 lives up to Goodman's expectations to provide an enhanced comfort with a superior efficiency, all while staying within your budget. If you want the best possible coil for your home, this is it.

Features

• 5 ton horizontal evaporator coil
• Can be used with heat pump and AC-only condensers
• R32: Complies with Clean Air Act New Refrigerant Requirements
• Galvanized, embossed, and insulated coil cabinet to protect the coil and prevent air leakage
• Factory-installed TXV kit


Specifications

Manual

• Installation Manual
• Spec Sheet

What our Experts Think

• High-Capacity 5-Ton Cooling Support: Designed to handle up to 60,000 BTU, making it a strong match for large residential systems and high-capacity HVAC setups.

• Factory-Installed TXV for Efficiency: The built-in thermal expansion valve (TXV) precisely regulates refrigerant flow, improving cooling efficiency and system performance.

• Optimized for Modern R-32 Systems: Engineered for R-32 refrigerant, offering improved heat transfer and compatibility with newer, environmentally conscious HVAC systems.

• Durable All-Aluminum Coil Construction: Aluminum tube-and-fin design provides strong corrosion resistance and reliable heat exchange for long service life.

• Horizontal Installation Flexibility: Built for horizontal airflow applications, ideal for attic, crawlspace, or closet installations.

• Compact, Service-Friendly Cabinet: A 24.5" height and single front access panel allow easier installation and maintenance in tight mechanical spaces.

• Condensation-Reducing Insulation: Foil-faced cabinet insulation and a rust-resistant thermoplastic drain pan help prevent moisture buildup and protect system components.

Q&A

Q: What is the capacity of the Goodman CHPTA6030D3 evaporator coil?
A: The Goodman CHPTA6030D3 5 Ton Horizontal Cased Evaporator Coil supports up to 5 tons of cooling capacity, making it suitable for high-capacity residential HVAC systems and heat pumps.

Q: What refrigerant is compatible with the Goodman CHPTA6030D3 coil?
A: This evaporator coil is designed specifically for R-32 refrigerant, supporting newer high-efficiency HVAC systems and improved environmental performance.

Q: Does the Goodman CHPTA6030D3 include a TXV?
A: Yes. The unit comes with a factory-installed thermal expansion valve (TXV) for precise refrigerant flow control in both cooling and heat pump applications.

Q: What installation configuration does this evaporator coil support?
A: The Goodman CHPTA6030D3 is designed for horizontal installation (left or right), commonly used in attics, crawl spaces, and horizontal air handler setups.

Q: What are the dimensions of this evaporator coil?
A: The unit measures approximately 24.5 inches high, 30 inches wide, and 21 inches deep, providing a compact cabinet that fits many residential HVAC installations.

Q: What materials are used in the Goodman CHPTA6030D3 coil?
A: It features an all-aluminum coil design with aluminum tubing and fins, improving heat transfer while helping resist corrosion.

Q: Is this evaporator coil compatible with heat pump systems?
A: Yes. The CHPTA6030D3 is built for both air conditioning and heat pump systems, making it a versatile indoor coil for matched HVAC systems.

Q: What airflow capacity does the Goodman CHPTA6030D3 support?
A: This coil supports airflow up to approximately 1900 CFM, suitable for large residential systems requiring higher cooling capacity.

Q: Does the Goodman CHPTA6030D3 include durability or safety features?
A: Yes. It includes rust-resistant thermoplastic drain pans, galvanized steel cabinet construction, and an R-32 leak detection sensor for added safety and long-term reliability.

Maintenance Tips

• Replace or clean air filters regularly (every 1–3 months) to maintain proper airflow and prevent dust buildup on the evaporator coil.

• Inspect the coil annually for dirt or debris; a clean aluminum coil improves heat transfer and overall system efficiency.

• Keep the condensate drain pan and drain line clear to prevent water overflow, mold growth, and system shutdowns.

• Check refrigerant line connections (3/8" liquid, 7/8" suction) for leaks or insulation damage to maintain optimal cooling performance.

• Inspect the TXV (thermal expansion valve) during service visits to ensure proper refrigerant flow and efficient system operation.

• Ensure the cabinet insulation and access panel remain sealed to prevent air leakage and condensation inside the unit.

• Clean the drain pan and check secondary drain connections to reduce water retention and prevent clogs.

• Schedule annual HVAC professional maintenance to inspect refrigerant levels, coil condition, and system compatibility with R-32 refrigerant systems.
