Goodman - 5 Ton/60,000 BTU - Multi-Positional - Air Conditioner Split System - 16.2 SEER2 - R32 - AMST60DU1300

Goodman - 5 Ton/60,000 BTU - Multi-Positional - Air Conditioner Split System - 16.2 SEER2 - R32 - AMST60DU1300

$4,423.99 USD
$5,898.00 USD $4,423.99 USD
Sale Sold out

Description

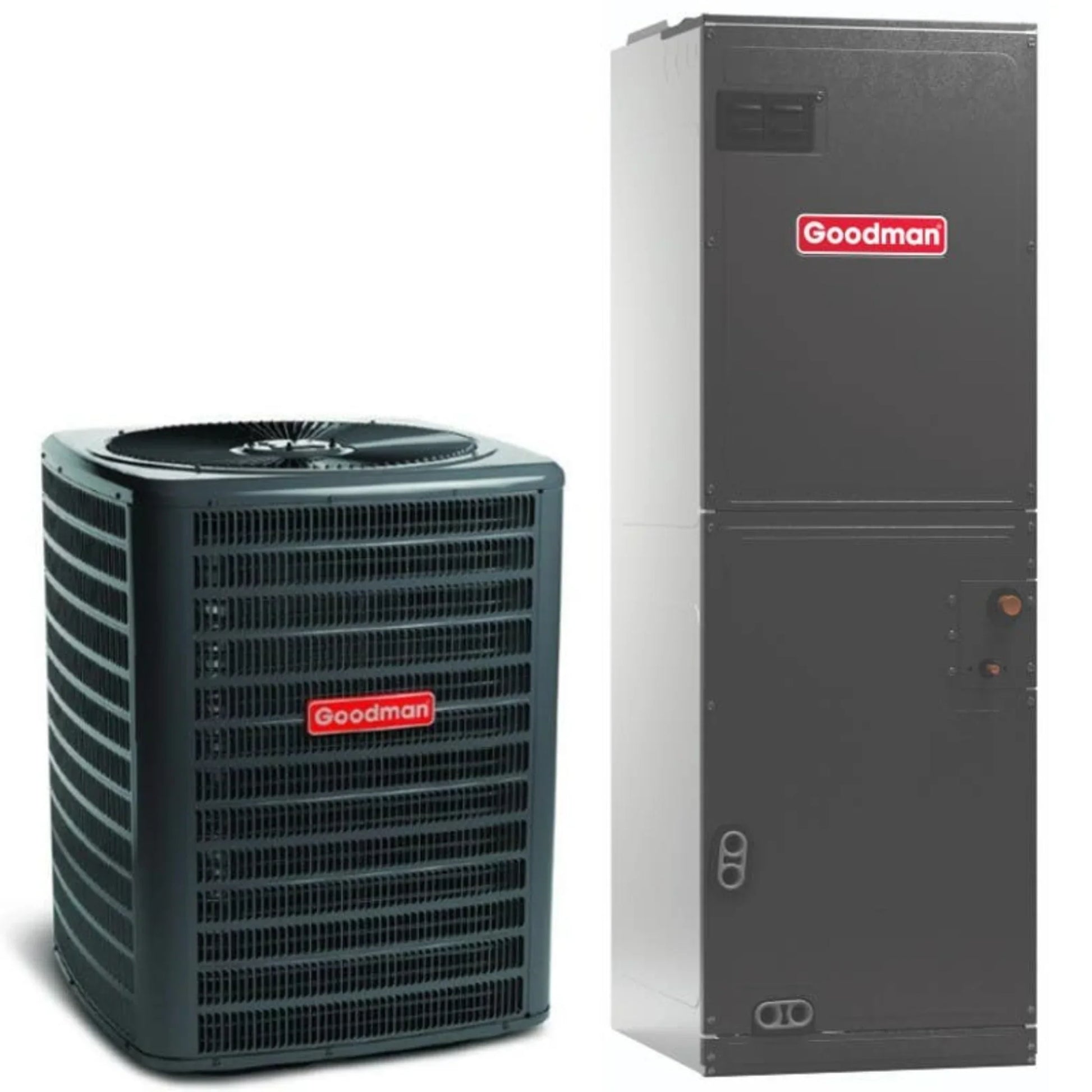

Goodman - 5 Ton/60,000 BTU - Multi-Positional - Air Conditioner Split System - 16.2 SEER2 - R32 - AMST60DU1300

A Goodman combination system is a great choice to keep your home comfortable all season long. With tons of extra features and a great price, a Goodman air conditioner split system is the perfect choice for all of your cooling needs.

Features
  • Ideal size to cover a smaller house in ideal climates
  • 5 ton, 15.2 SEER2 AC-only condenser
  • R32: Complies with Clean Air Act New Refrigerant Requirements
  • Fully charged for up to 15' of line set
  • Low sound output
  • Factory-installed filter drier

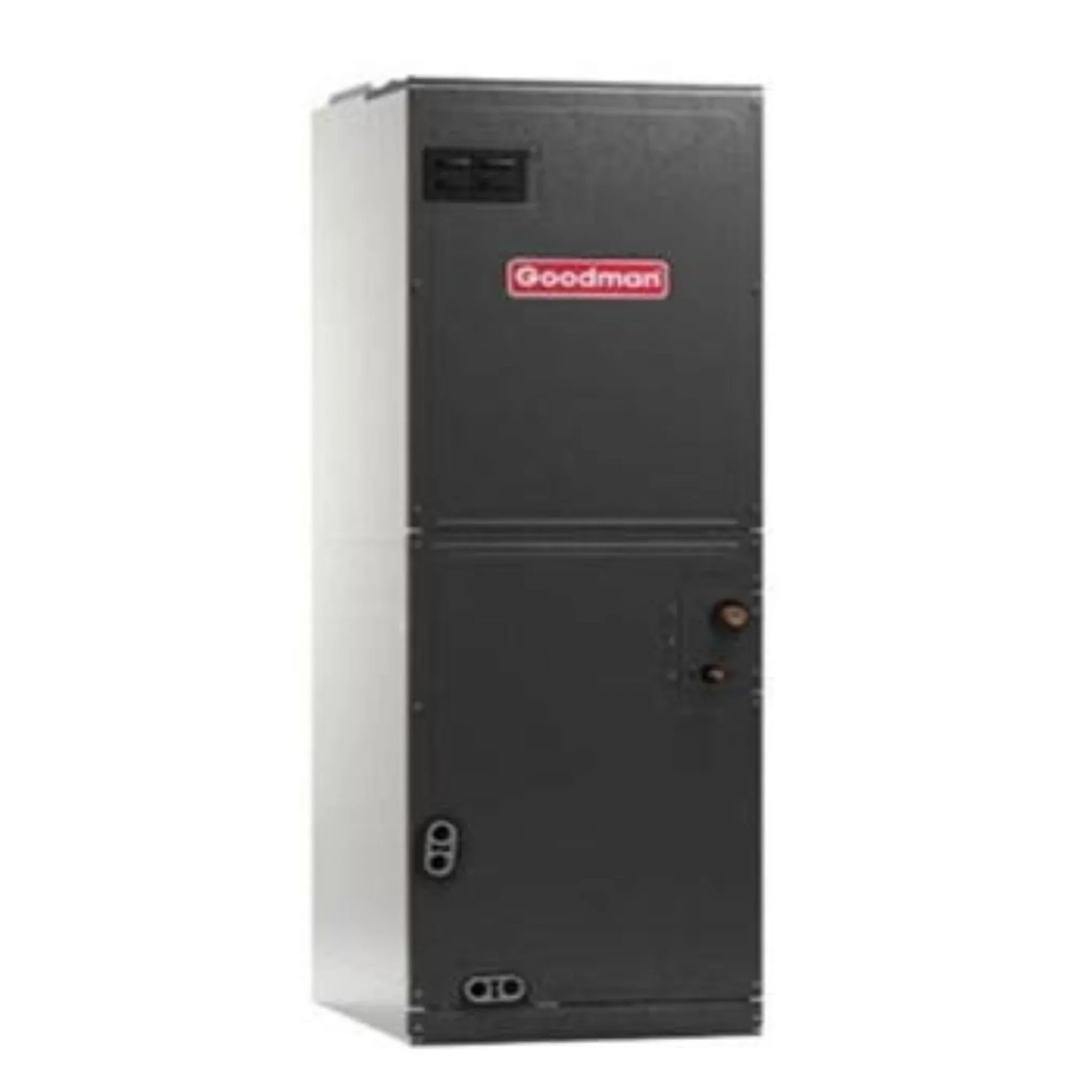

  • Air Handler
  • 5 ton air handler
  • Electric heat compatible
  • Optimized for use with R-32 refrigerant
  • Multi-speed, direct drive ECM blower motor
  • Multi-positional (upflow, downflow, or horizontal)
Specifications

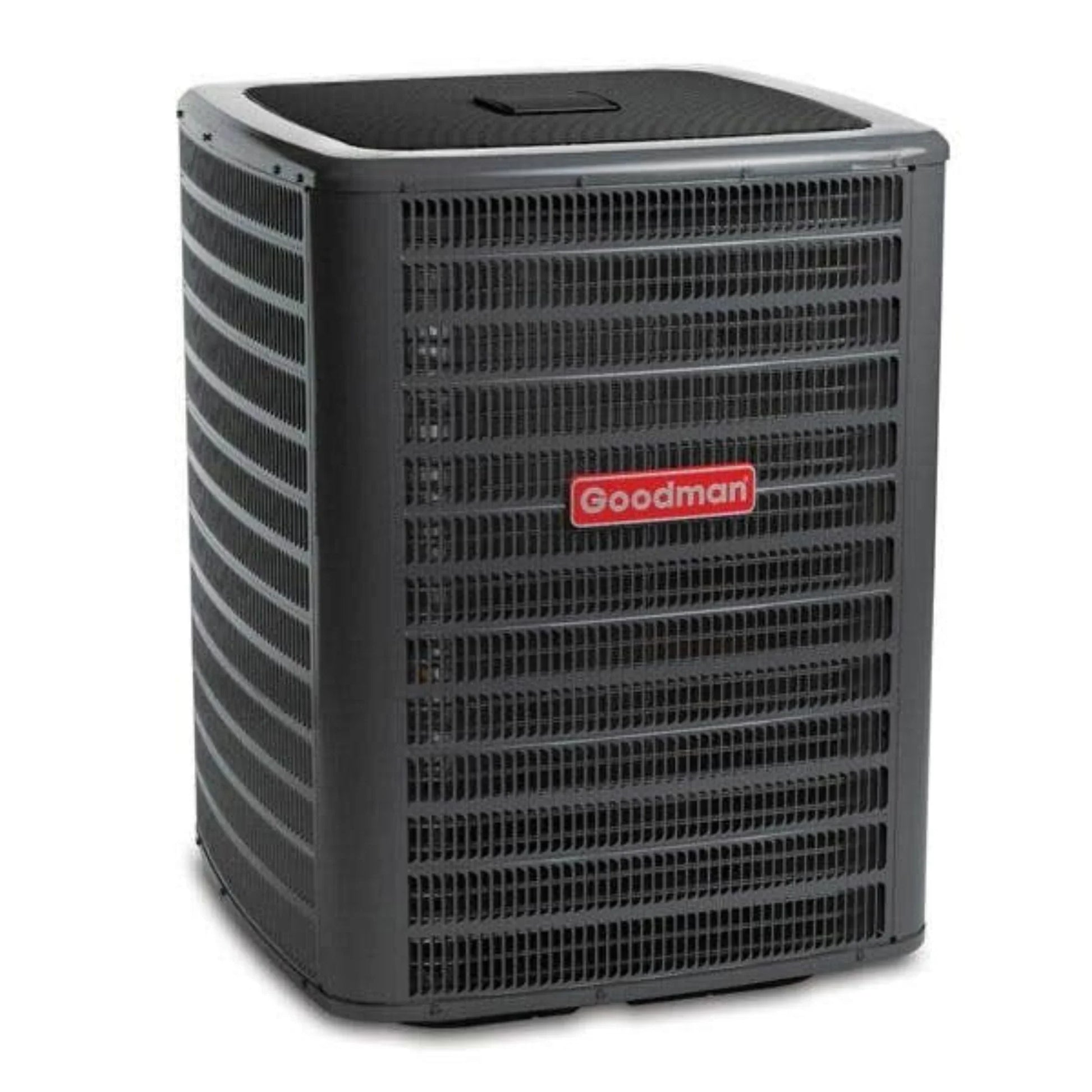

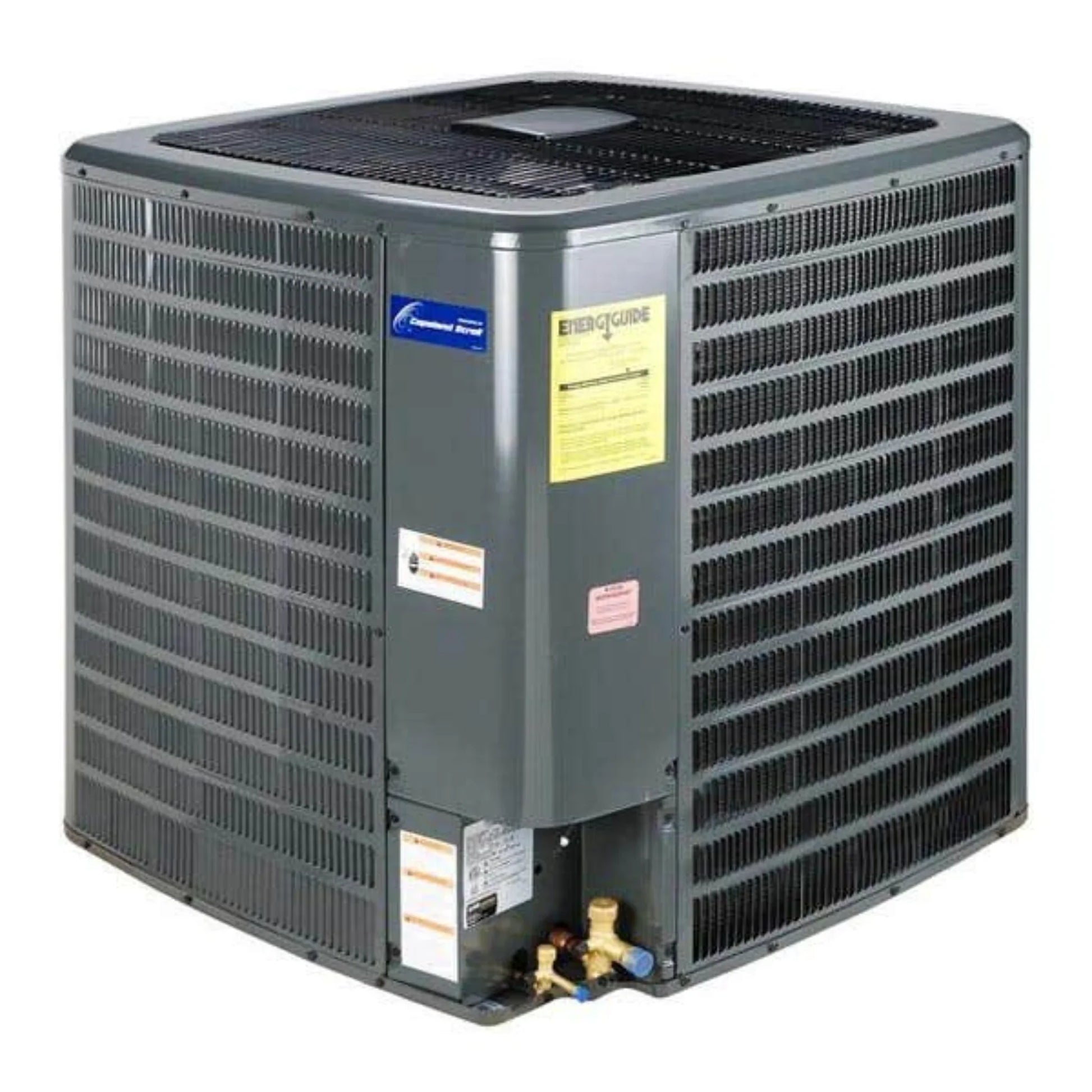

5 Ton 15.2 SEER2 High Efficiency Goodman Air Conditioner Condenser
SKU GLXS5BA6010
Weight 305.000000
Manufacturer Goodman
Replaces GSX160601
Cooling BTU 60,000
Blower Motor Two Speed ECM Motor
Decibel Level (dBA) 76
Horsepower 0.33 HP
Refrigerant R32
SEER2 15.2
Condenser Stages Two Stage
Compressor Type Scroll
Liquid Line 3/8"
Suction Line 7/8"
Electrical 208/230v 1 Phase 60Hz
Max Breaker Size 50 Amps
Min. Breaker Size 32.4 Amps
Tonnage 5 Ton
Connection Sweat
Height 41 1/2"
Width 35 1/2"
Depth 35 1/2"
Manual
What our Experts Think

  • High‑Capacity Cooling: The Goodman AMST60DU1300 Air Conditioner Split System delivers 5 tons (60,000 BTU) of cooling power, making it ideal for large homes, open layouts, and high‑load spaces.

  • Strong Seasonal Efficiency: With 16.2 SEER2, this unit provides solid cooling efficiency, helping lower energy costs compared to lower‑rated systems.

  • Multi‑Positional Design: Flexible multi‑positional installation adapts to upflow, horizontal, or downflow configurations, simplifying setup in attics, basements, or tight mechanical rooms.

  • R32 Refrigerant for Better Performance: Uses R32 refrigerant, which enhances heat transfer efficiency and environmental performance vs older refrigerants.

  • Durable Construction: Built with rugged outdoor components and corrosion‑resistant finishes to withstand harsh weather and long service life.

  • Balanced Value & Performance: Combines high capacity, energy efficiency, and flexible installation, making it a top choice for residential HVAC upgrades and replacements.


Q&A

Q: What cooling capacity does this condenser provide?
A: This Goodman condenser delivers 4 tons (48,000 BTU) of cooling, making it suitable for medium to large homes or commercial spaces when paired with the correct indoor components.

Q: What does SEER2 15.2 mean?
A: SEER2 15.2 indicates improved seasonal energy efficiency under updated testing standards, helping lower cooling costs compared to lower SEER units.

Q: What type of operation and compressor does it use?
A: It uses a single‑stage scroll compressor, offering simple, reliable cooling performance.

Q: What refrigerant is used?
A: This unit uses R32 refrigerant, which is environmentally friendlier and more efficient than many older refrigerants.

Q: What are the installation and electrical requirements?
A: Designed for 208/230 V single‑phase power, pre‑charged for up to 15 ft of line set (indoor coil/air handler sold separately).

Q: What are the physical dimensions?
A: Approximate dimensions are 35.5″ W × 35.5″ D × 36.5″ H.

Q: How loud is the unit during operation?
A: Typical operating sound is around 73‑76 dBA, which is normal for residential outdoor AC condensers.


Maintenance Tips

  • Clean Outdoor Condenser Coil: Remove leaves, dirt, and debris regularly to maintain optimal heat transfer and cooling efficiency.

  • Ensure Proper Clearance: Keep at least 2–3 ft of open space around the condenser and air handler for airflow and safety.

  • Inspect Refrigerant Lines: Check liquid and suction lines for insulation damage, leaks, or wear.

  • Rinse Fins Gently: Use a garden hose to clean condenser fins without bending them, improving airflow and efficiency.

  • Check Electrical Connections: Inspect wiring, disconnects, and capacitors for secure, corrosion-free operation.

  • Monitor Performance & Noise: Normal operation is quiet; unusual sounds or reduced cooling may indicate maintenance is required.

  • Schedule Annual Professional Service: Have a certified HVAC technician inspect the compressor, fan motors, refrigerant charge, and system pressures yearly to maintain 16.2 SEER2 efficiency.
