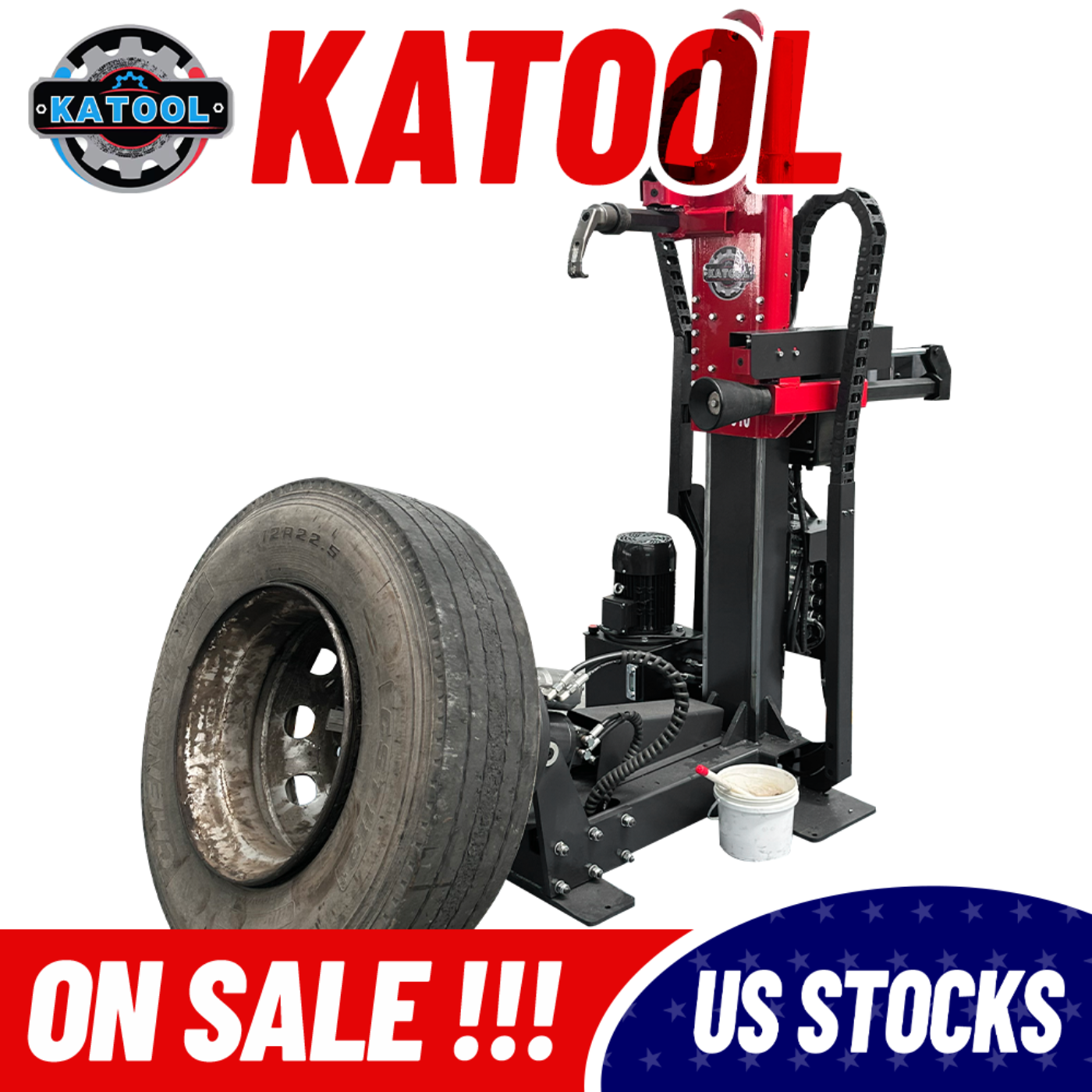

Katool KT-Hydraulic Truck Tire Changer - TV910

Katool KT-Hydraulic Truck Tire Changer - TV910

$4,724.99 USD
$6,299.00 USD $4,724.99 USD
Sale Sold out

Description

Katool KT-Hydraulic Truck Tire Changer - TV910

KT-TV910 Heavy Duty Truck Tire Changer Machine

Features
  • Heavy-duty electro-hydraulic tire changer for Trucks, Busses, tractors, and earth-moving vehicle tires
  • Large clamping capacity to externally clamp wheels up to 42 inches or as small as 14 inches in diameter to maximize service flexibility.
  • Multifunctional control, allows the user to operate in any position safely
  • Powerful, precise, and quick: a beak and disk- it ensures the bead on wheels is particularly strong, even on the most delicate rims
  • Ergonomically positioned foot pedals and helper controls located at the point of use minimize training and opportunities for error.
  • Low voltage electric components ensure user complete safety
Specification
Outer Rim 14'' - 42''
Max Wheel Diameter 55''
Max Wheel Width 31'' / 780mm
Working Pressure ≤130 bar
Power Supply 220V 1PH/60HZ
Hydraulic Motor 3.0 KW (***4.0 HP Motor***)
Max Flow of Oil for Hydraulic Motor 315
Max Tire Weight 3306lbs / 1500KG
Net Weight 1256lbs / 570KG
Shipping Weight 1388lbs / 630KG
Shipping Dimension 51'' x 43'' x 72'' / 1300mm x 1100mm x 1830mm)
Noise Level < 70 DB(A)
What our Experts Think

  • Built for heavy truck tires

  • Designed specifically for large commercial truck, bus, and off‑road tire service

  • Powerful hydraulic operation

  • Smooth, strong clamping and bead breaking for tough tire jobs

  • User‑friendly controls

  • Intuitive layout speeds up service and reduces operator fatigue

  • Durable construction

  • Heavy‑duty steel components stand up to frequent professional use

  • Improves shop efficiency

  • Faster tire changes mean more throughput and less downtime

  • Safer tire handling

  • Stable base and secure grip reduce risk of slippage or damage

  • Versatile compatibility

  • Works with a wide range of truck tire sizes and rim types

Q&A

Q: What tires can this changer handle?
A: Heavy‑duty truck, bus, tractor, and industrial tires.

Q: What wheel sizes does it support?
A: Rim diameters 14″–42″, wheel diameters up to 63″, widths up to 31″.

Q: What is the maximum wheel weight capacity?
A: Up to 3,306 lbs (1,500 kg) per wheel for large commercial service.

Q: What power does it require?
A: Standard 220 V single‑phase, 60 Hz electrical supply.

Q: How is operation controlled?
A: Ergonomic hydraulic controls and foot pedals for safe, efficient operation.

Q: How is bead breaking handled?
A: Hydraulic beak and disk system for strong, precise bead engagement and removal.

Q: Is this machine shop‑ready?
A: Yes — designed for professional tire shops, fleets, and heavy equipment service.

Q: How is it delivered?
A: Shipped by freight to commercial addresses; unloading gear (e.g., forklift) recommended.

Q: Why choose the TV910?
A: Combines high capacity, wide size range, and hydraulic precision for demanding tire changing needs.

Maintenance Tips

  • Clean After Use: Wipe down surfaces and bead breaker area to remove dirt, tire debris, and lubricant buildup

  • Inspect Moving Parts: Check turntable, clamps, and hydraulic arms for wear or damage

  • Lubricate Regularly: Grease pivot points, slide rails, and movable arms for smooth operation

  • Hydraulic System Check: Monitor fluid level and condition; replace hydraulic oil per manufacturer schedule

  • Check Hoses & Fittings: Look for leaks, cracks, and loose connections

  • Tighten Fasteners: Periodically tighten bolts and nuts on base, turntable, and bead breaker

  • Test Safety Devices: Ensure pressure relief valves and safety locks work properly

  • Maintain Air Supply Line: Keep air lines clean and dry; drain moisture from compressor/air tank

  • Store Properly: Keep in a dry, covered space to prevent rust and corrosion

  • Service Log: Record maintenance and repairs to extend equipment life
