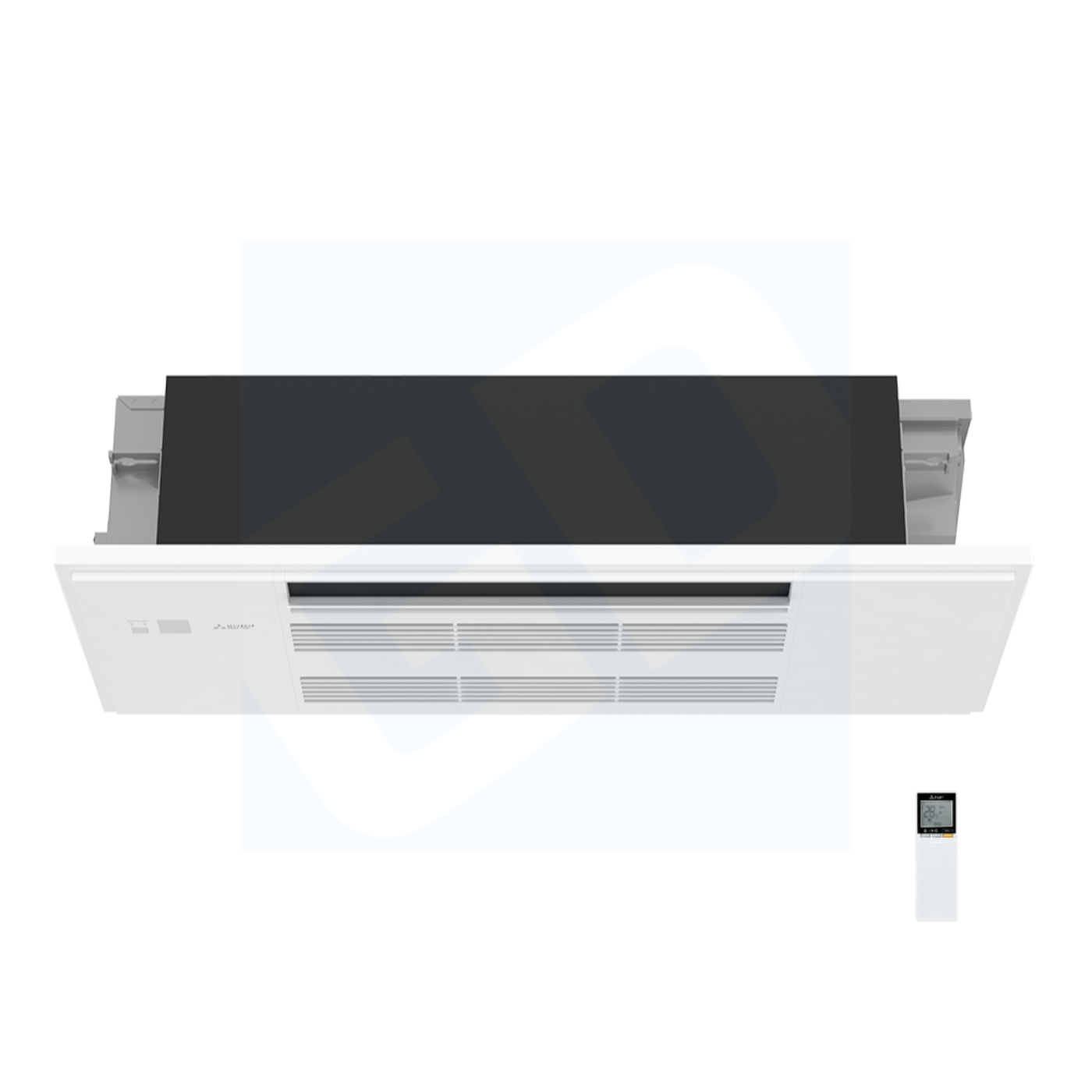

Mitsubishi MLZ-KX06NL 6,000 BTU One-Way Ceiling Cassette Unit (Unit Only)- R454B - MLZKX06NL

Mitsubishi MLZ-KX06NL 6,000 BTU One-Way Ceiling Cassette Unit (Unit Only)- R454B - MLZKX06NL

• Unit Type Ceiling Cassette
• Product Line M-Series KY
• Operating Mode Cooling & Heating
• Number of Zones 1
• Unit Capacity 6,000 BTU
• Line Set Size 1/4" x 3/8"
• Required Install Kit IKIT1438
• WiFi Enabled Yes with Kumo Cloud
• WiFi Built In No

Includes

• Indoor Unit MLZ-KY06NA

• Remote Controller

Performance

• Cooling Capacity 6,000 BTU
• Heating Capacity 7,200 BTU
• Room Cooling/Heating Capacity up to 250 sq ft

What our Experts Think

• Compact Ceiling Cassette Climate Solution: The Mitsubishi MLZ‑KX06NL 6,000 BTU One‑Way Ceiling Cassette Unit is a slim, recessed indoor unit that fits between standard ceiling joists, delivering efficient 6,000 BTU cooling and 7,200 BTU heating for small to medium spaces like bedrooms, offices, or living areas.

• Quiet, Balanced Performance: Designed with adjustable fan speeds and vanes, this unit provides balanced airflow and comfortable reach throughout the room with low noise levels — ideal for living spaces or quiet environments.

• Energy‑Smart Features: Econo Cool mode increases energy efficiency by automatically adjusting airflow based on temperature while maintaining comfort. Hot‑Start technology prevents cold drafts during heating.

• Integrated Condensate Management: Built‑in condensate lift mechanism (≈19.6”) simplifies drainage without requiring an external pump, reducing installation complexity.

• Flexible Controls: Comes with a handheld remote controller and supports optional Wi‑Fi control via Mitsubishi’s Comfort app or wired/wireless thermostats for convenient scheduling and zone management.

• Easy Service & Installation: Bottom‑accessible service panel, fits between 16” ceiling joists, and washable antibacterial filters help make maintenance straightforward.

• Discreet Aesthetics: Low‑profile design integrates cleanly into ceilings, leaving only the grille visible (grille sold separately), preserving interior décor.

• Expert Verdict: A strong choice for ductless heating and cooling where ceiling space is available — combining efficient performance, energy‑saving features, and quiet operation in a compact, ceiling‑mounted package.

Q&A

Q: What type of unit is the MLZ‑KX06NL?
A: It’s a 6,000 BTU one‑way ceiling cassette indoor unit designed for ductless mini‑split HVAC systems (indoor unit only; grille and outdoor unit sold separately).

Q: What cooling and heating capacity does it offer?
A: Provides up to 6,000 BTU/h cooling and around 7,200 BTU/h heating when paired with a compatible Mitsubishi outdoor heat pump system.

Q: What refrigerant type does it use?
A: This model uses R‑454B refrigerant, a lower‑GWP refrigerant compliant with modern efficiency standards.

Q: How does airflow and vane control work?
A: It features adjustable fan speeds and auto vane control (directional airflow up/down and left/right) to optimize comfort and reduce drafts.

Q: What comfort‑enhancing features are included?
A: Includes Econo Cool mode for energy‑efficient airflow regulation, Hot‑Start technology in heating mode to avoid cold drafts, and dehumidification control for improved comfort.

Q: Does it help with condensate management?
A: Yes — the unit has a built‑in condensate lift mechanism (~19.6″ capacity), reducing the need for an auxiliary drain pump.

Q: How is this unit controlled?
A: Controlled via the included handheld remote, and it supports wireless, wired, or Comfort‑app control (Wi‑Fi interface optional).

Q: Is it easy to install and maintain?
A: Yes — the slim, low‑profile design fits between standard 16″ joists and allows service access from below.

Q: What are typical applications for this unit?
A: Ideal for bedrooms, offices, small living areas, or renovation spaces where a ceiling‑mounted solution delivers discreet, even airflow without a wall head

Maintenance Tips

• Clean Filters Every 2–4 Weeks: Remove, rinse, and dry the washable antibacterial air filter to maintain airflow and efficiency.

• Dust Intake & Surrounding Area: Wipe the intake grille and nearby ceiling surfaces with a soft cloth to prevent dust buildup.

• Keep Drain Line Clear: Check condensate drain for clogs to prevent leaks and water damage.

• Maintain Airflow Clearance: Ensure nothing blocks intake or discharge vents to optimize performance.

• Annual Professional Inspection: Have HVAC technicians clean coils, check refrigerant, and inspect overall unit performance.

• Check Refrigerant & Connections: Only trained professionals should handle R‑454B refrigerant lines and connections.

• Use Remote & Modes Efficiently: Adjust fan speed, vane direction, and energy-saving modes like Econo Cool for comfort and efficiency.

• Dehumidification Mode: Use dry mode to reduce humidity and prevent mold buildup.
