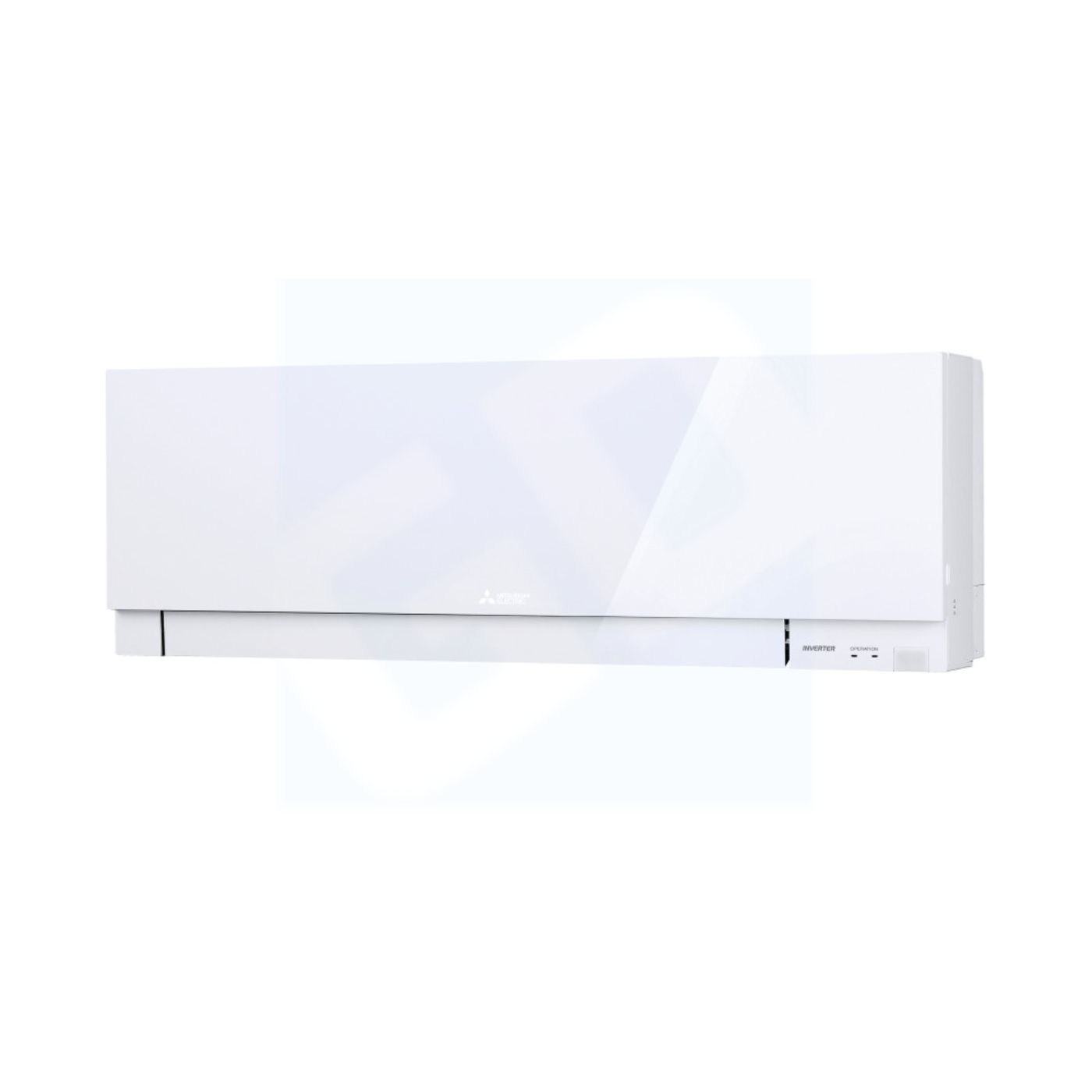

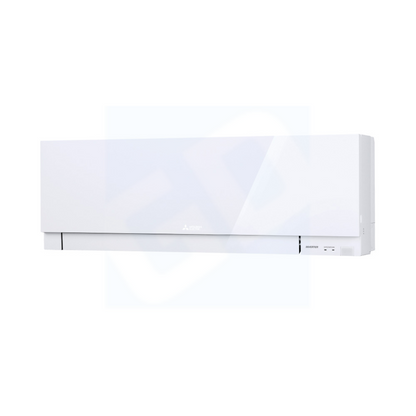

Mitsubishi MSZ-EX09NLW 9,000 BTU Wall Mounted Indoor Unit - R454B - MSZEX09NLW

Mitsubishi MSZ-EX09NLW 9,000 BTU Wall Mounted Indoor Unit - R454B - MSZEX09NLW

$546.99 USD
$728.00 USD $546.99 USD
Sale Sold out

Description

Mitsubishi MSZ-EX09NLW 9,000 BTU Wall Mounted Indoor Unit - R454B - MSZEX09NLW

The MSZ‑EX09NLW indoor unit delivers efficient 9,000 BTU heating and cooling (10,000 BTU heating nominal). Powered by R‑454B refrigerant and DC inverter technology, it ensures quiet, energy-wise comfort with advanced filtration and corrosion-resistant features
Homeowners or contractors adding a stylish, quiet, efficient 9 k BTU indoor zone to a ductless system. With advanced allergen filtration, Econo Cool, and smart control, the MSZ‑EX09NLW upgrades comfort with convenience.

 This system is not compatible with Mitsubishi’s smart outdoor units.System Type: Wall-mounted ductless indoor air handler (requires standalone condenser)
Model: MSZ‑EX09NLW
Capacities: 9,000 BTU Cooling | 10,000 BTU Heating (nominal)
Room Size: Ideal for ~350 sq ft
Operating Modes: Heating & Cooling
ENERGY STAR: Yes
Refrigerant / Factory Charge: R‑454B (pre‑charged)

Features

  • INVERTER/DC Fan Motor: DC inverter and fan motor for precise, quiet, energy-efficient operation

  • Dual Barrier Coating: Reduces dust, smoke, and oil buildup on heat exchanger

  • Advanced Filtration: Hybrid catechin nano‑platinum filter captures and neutralizes allergens

  • Econo Cool Mode: Enhances cooling efficiency by adjusting airflow and set-point

  • Smart Set & Wi‑Fi Ready: Save preferred settings and control via Comfort app, remote, or wired controller

  • Sleek Design & Color Options: Slim profile (7.7 in. depth) available in black (MSZ-EX09NLB), silver (MSZ-EX09NLS), or white (MSZ-EX09NLW)

  • Smart Compatibility Notice: Not compatible with smart outdoor models
Specifications
Cooling Capacity 9,000 BTU/h
Heating Capacity 10,000 BTU/h (nominal)
Airflow (Cooling Dry) 143–391 CFM
Airflow (Heating Dry) 143–448 CFM
Sound (Cooling) 21–42 dB(A)
Sound (Heating) 21–45 dB(A)
Power 208/230 V, 1‑Phase, 60 Hz
MCA 1 A
MOCP 15 A
Dimensions (W × D × H) 34‑13/16″ × 7‑11/16″ × 11‑3/4″
Weight 26 lb
Piping Liquid: ¼″; Gas: ⅜″; Drain: ⅝″ O.



Included

  • Indoor Unit: MSZ‑EX09NLW wall-mounted air handler

  • Wireless Remote Controller

  • Standard Installation Accessories (bracket, lineset, filters)

What our Experts Think

  • Strong HVAC Performance for Small‑Medium Rooms: The Mitsubishi MSZ‑EX09NLW 9,000 BTU Wall‑Mounted Indoor Unit offers efficient cooling (~9,000 BTU) and heating (~10,000 BTU) when paired with a compatible outdoor heat pump — ideal for spaces up to ~350 sq ft.

  • Quiet, Energy‑Efficient Operation: Inverter‑driven DC fan and motor deliver precise temperature control with low noise and reduced energy use, making it comfortable for bedrooms or living areas.

  • Cleaner Indoor Air: Dual Barrier Coating helps reduce dust, smoke and oil buildup on internal components, while advanced filtration fights allergens and improves air quality.

  • Smart Comfort Modes: Econo Cool mode adjusts airflow and temperature for better energy savings without sacrificing comfort.

  • Sleek, Modern Design: Slim wall‑mounted profile in classic white blends into most interiors, and the unit includes a handheld remote with compatibility for optional wired/wireless controllers and smart app control.

  • Flexible Control Options: Works with Mitsubishi Comfort app and third‑party interfaces for remote scheduling, fan speed and mode adjustments.

  • Quiet Comfort: Designed to be whisper‑quiet in operation, helping maintain a peaceful indoor environment.

  • Expert Verdict: A balanced choice for homeowners seeking quiet, efficient, and easy‑to‑control heating and cooling in small to medium spaces, with enhanced filtration and energy‑saving modes that boost comfort and indoor air quality.


Q&A

Q: What type of unit is the MSZ‑EX09NLW?
A: It’s a wall‑mounted ductless mini‑split indoor air handler designed to pair with a compatible Mitsubishi outdoor heat pump for efficient year‑round comfort.

Q: What heating and cooling capacities does it provide?
A: The unit delivers 9,000 BTU/h cooling and up to approximately 12,000 BTU/h heating when paired with a suitable outdoor unit.

Q: What refrigerant does it use?
A: This model uses R454B refrigerant, a more environmentally friendly, low‑GWP option.

Q: What room size is it suitable for?
A: Ideal for spaces such as bedrooms, offices, small living areas, or zones up to ~350 sq ft.

Q: What key comfort features does it include?
A: It features INVERTER/DC fan motor technology for quiet, efficient operation, Dual Barrier Coating to reduce dust/smoke buildup, and Econo Cool Mode to improve cooling efficiency.

Q: How is air quality managed?
A: Advanced filtration helps capture and neutralize allergens and airborne particles for cleaner indoor air.

Q: Can this unit be controlled remotely?
A: Yes — it supports remote control and Comfort App/Wi‑Fi control options when connected with compatible interfaces.

Q: How quiet is the MSZ‑EX09NLW?
A: It operates quietly across multiple fan speeds, with sound pressure levels typically ranging from low to moderate.

Q: What are its electrical requirements?
A: It runs on 208/230 V AC, single‑phase, 60 Hz power and draws minimal current for efficient operation.

Q: What is included with the unit?
A: Typically includes the indoor unit itself and a handheld remote controller, along with basic installation accessories.


Maintenance Tips

  • Clean Filters Often: Remove and wash the washable air filters every 2–4 weeks (or monthly) depending on dust levels to maintain strong airflow and cooling/heating efficiency. Let them fully dry before reinstalling.

  • Dust Grille & Louvers: Wipe the unit’s front panel, grille, and louvers with a soft, dry cloth regularly to prevent dust buildup that can restrict airflow.

  • Keep Airflow Unobstructed: Ensure furniture, curtains, or décor don’t block the intake and discharge vents for optimal performance.

  • Check Condensate Drain: Inspect the condensate drain path occasionally to prevent moisture buildup, clogging, or odors.

  • Annual Professional Service: Schedule yearly HVAC maintenance for internal coil cleaning, refrigerant check, and system performance evaluation.

  • Turn Off Power Before Cleaning: Always shut off power before removing filters or cleaning interior parts for safety.

  • Monitor Performance: If airflow weakens or noise increases, clean filters more often or contact a technician to check internal components.
