Mitsubishi 30,000 BTU 4-Zone Heat Pump Unit- R454B - MXZ-4D30NL

Mitsubishi 30,000 BTU 4-Zone Heat Pump Unit- R454B -  MXZ-4D30NL

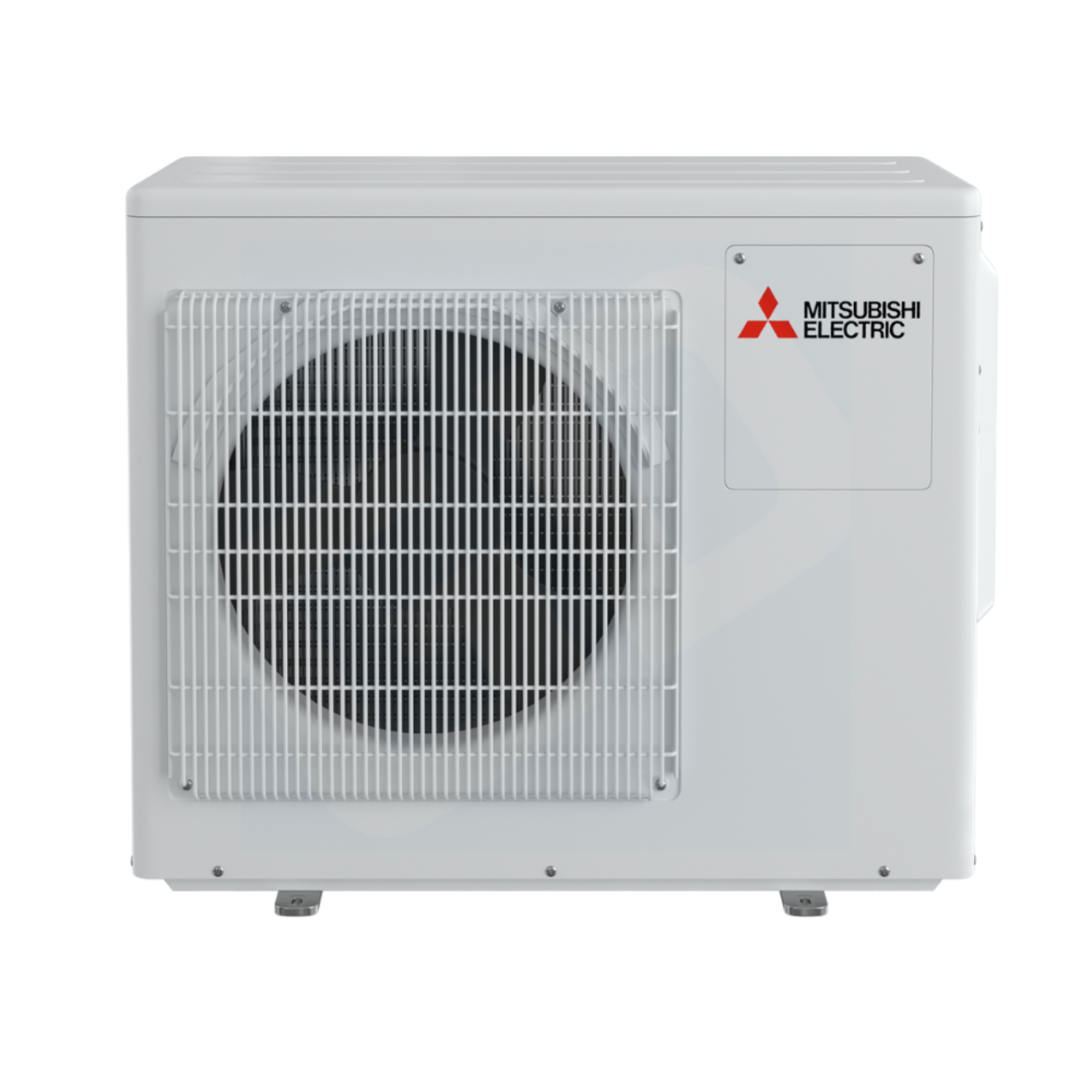

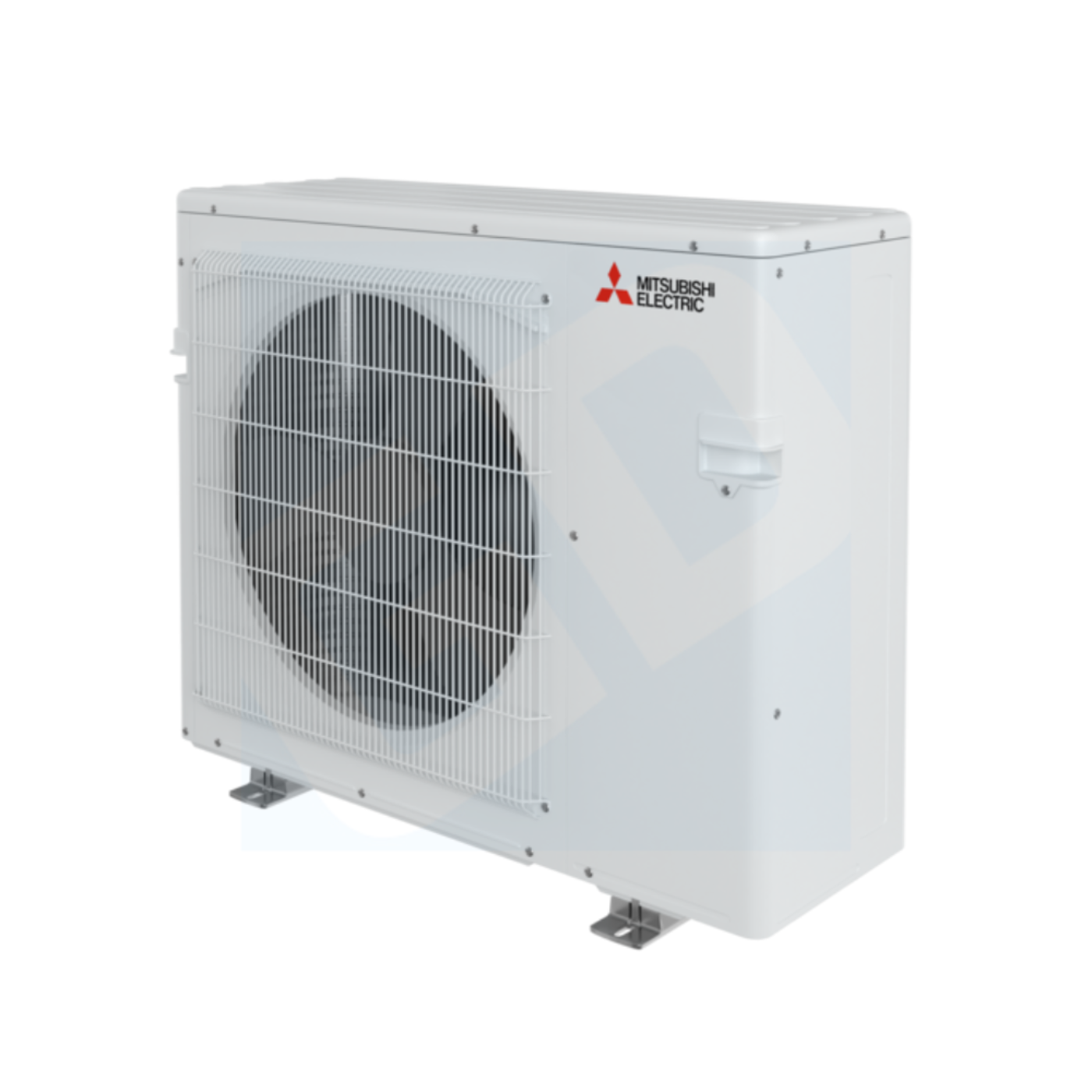

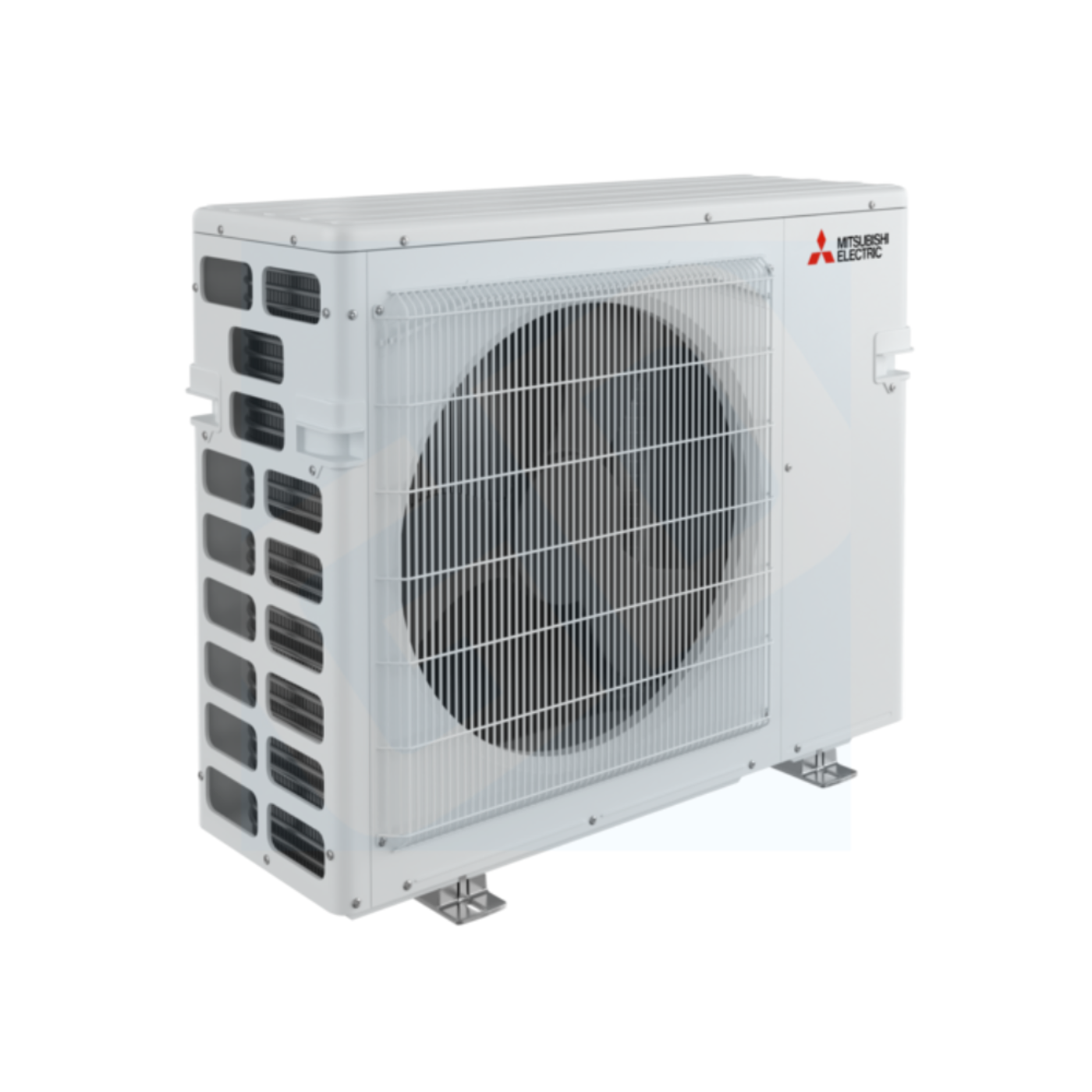

Introducing the Mitsubishi 30,000 BTU Multi-Zone Outdoor Unit MXZ-4D30NL, a powerhouse in the world of Mitsubishi mini splits, designed to deliver exceptional heating and cooling performance across multiple zones. This advanced heat pump outdoor unit is perfect for homeowners seeking a compact, efficient, and durable solution to maintain year-round comfort in up to four rooms, all while benefiting from Mitsubishi’s renowned engineering excellence.

The MXZ-4D30NL features a compact, small chassis with dimensions of 37-13/32" W x 13" D x 31-11/32" H, making it an unobtrusive addition to any property. Its variable speed INVERTER-driven twin rotary compressor ensures precise temperature control and energy efficiency, adapting seamlessly to your cooling and heating demands with an airflow rate of 2,119 CFM (cooling) and 2,228 CFM (heating). Rated for a minimum connected capacity of 12,000 BTU and a maximum of 36,000 BTU, this unit offers flexibility to pair with a variety of indoor units, supporting total piping lengths up to 230 feet and a maximum height difference of 49 feet.

Built for durability, the MXZ-4D30NL includes Blue Fin anti-corrosion treatment on the heat exchanger, providing increased coil protection and a longer lifespan, rated for 2,000 hours of spraying time per ASTM B117 standards. The unit is equipped with a freeze-prevention base pan heater as standard (with an optional defrost heater available), ensuring reliable operation in cold climates with a heating thermal lock-out/restart range of 4°F to 5°F and cooling range of 10°F to 14°F. It operates across a wide temperature range, from 14°F to 115°F for cooling and 5°F to 75°F for heating, delivering prolonged heating over extended durations.

Safety and reliability are paramount with features like compressor overcurrent detection, compressor thermal protection, fan motor overheating/voltage protection, and high-pressure protection. The quiet outdoor unit operation, as low as 53 dB(A) in cooling mode and 58 dB(A) in heating mode, ensures minimal noise disruption, rivaling the sound of a typical conversation. Pre-charged with 5.5 lbs of R454B refrigerant, the MXZ-4D30NL is ready to power your Mitsubishi mini split system efficiently.

With its sleek Munsell 3.0Y 7.8/1.1 finish and a lightweight design (123 lbs unit weight), this multi-zone outdoor unit combines form and function. Whether you’re cooling in summer heat or heating through winter chills, the Mitsubishi 30,000 BTU Multi-Zone Outdoor Unit MXZ-4D30NL offers the perfect blend of performance, efficiency, and quiet operation, making it an outstanding choice among Mitsubishi mini splits for customized home comfort.

What our Experts Think

• High-Capacity Multi-Zone Cooling & Heating: 30,000 BTU efficiently manages four separate zones.

• Flexible Zoning: Independently controls temperature in each room for personalized comfort.

• Energy Efficient: R454B refrigerant ensures optimal performance with reduced energy consumption.

• Quiet Operation: Minimal noise for both heating and cooling modes.

• Durable Design: Built for long-term reliability with low maintenance requirements.

• Advanced Airflow Control: Optimizes comfort across all zones with precise temperature management.

• User-Friendly Interface: Easy to program and operate for consistent comfort.

Q&A

Q: What type of unit is this?
A: A 30,000 BTU 4-zone heat pump unit, compatible with R454B refrigerant for multi-zone climate control.

Q: What spaces is it suitable for?
A: Ideal for residential or commercial buildings requiring four separate indoor zones.

Q: What type of refrigerant does it use?
A: Uses R454B refrigerant, designed for lower environmental impact.

Q: How many indoor units can it support?
A: Supports up to four indoor units for independent temperature control in each zone.

Q: What are its key benefits?
A: Provides energy-efficient heating and cooling, precise zone control, and quiet operation.

Q: How is it installed?
A: Designed for outdoor installation, connected to indoor wall-mounted, ceiling, or floor units.

Maintenance Tips

• Schedule professional HVAC service bi‑annually (spring & fall) for system checks, refrigerant levels, and safety inspections.

• Clean or replace indoor filters monthly to maintain airflow and efficiency.

• Clear debris around outdoor unit (leaves, dirt, snow) to ensure proper airflow and heat exchange.

• Inspect and clean outdoor coil fins gently with a soft brush; avoid bending fins.

• Check drain pans and condensate lines regularly; clear clogs to prevent water damage or overflow.

• Verify refrigerant lines and insulation integrity; refrigerant work must be done by certified technicians.

• Monitor thermostat settings and sensors to ensure accurate zone control and comfort.

• Test system performance in heating and cooling seasons to catch issues early.
