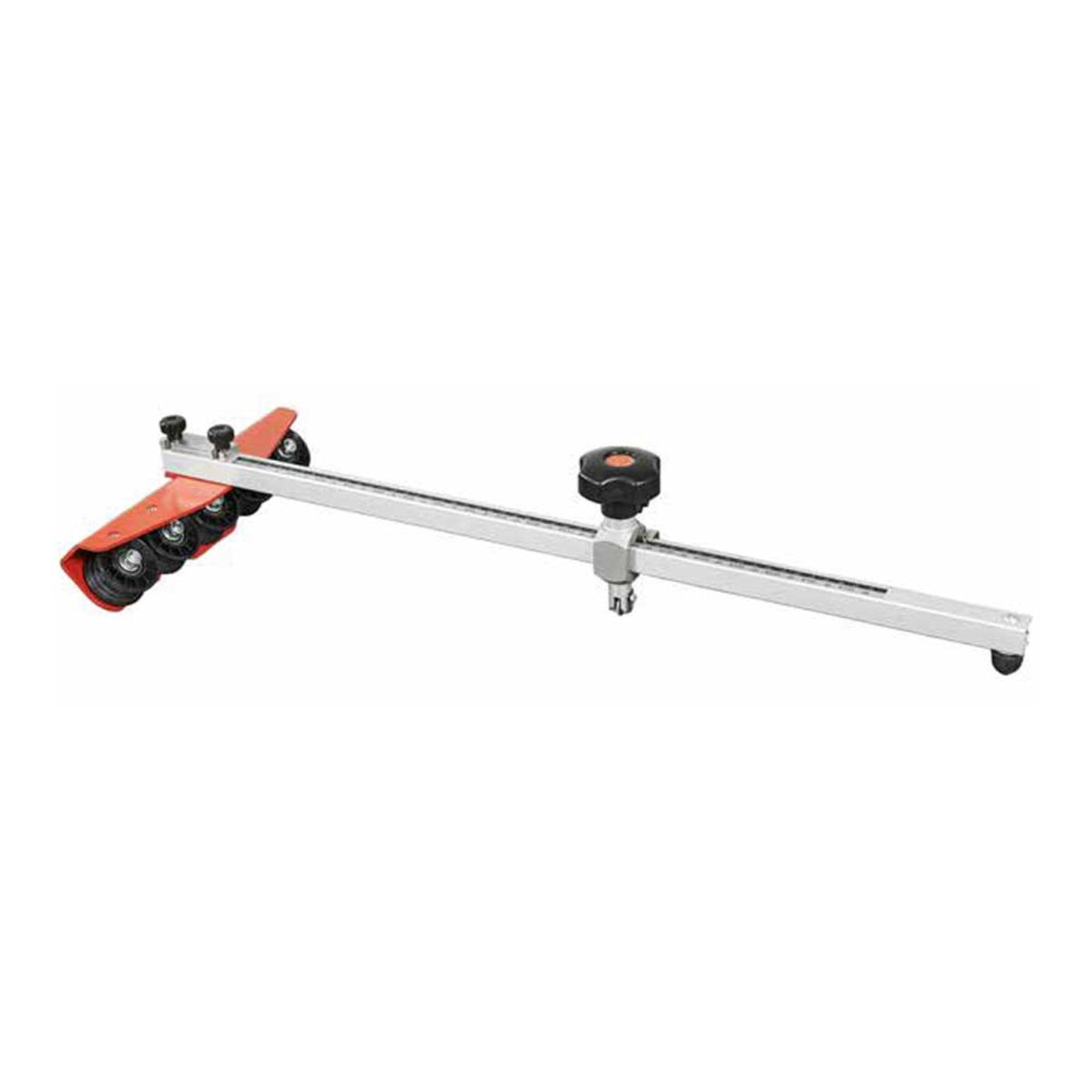

Raimondi T-CUT Large Format Tile Cutter - TCTCUT

Raimondi T-CUT Large Format Tile Cutter - TCTCUT

Features

• Device for score cutting porcelain slabs
• Extremely light 4.6 lb (2.1 kg) and very low dimensions for excellent portability
• Keep the T-CUT running onto edge and slide it sideways along the entire length of the slab while simultaneously pushing down onto scoring knob unit

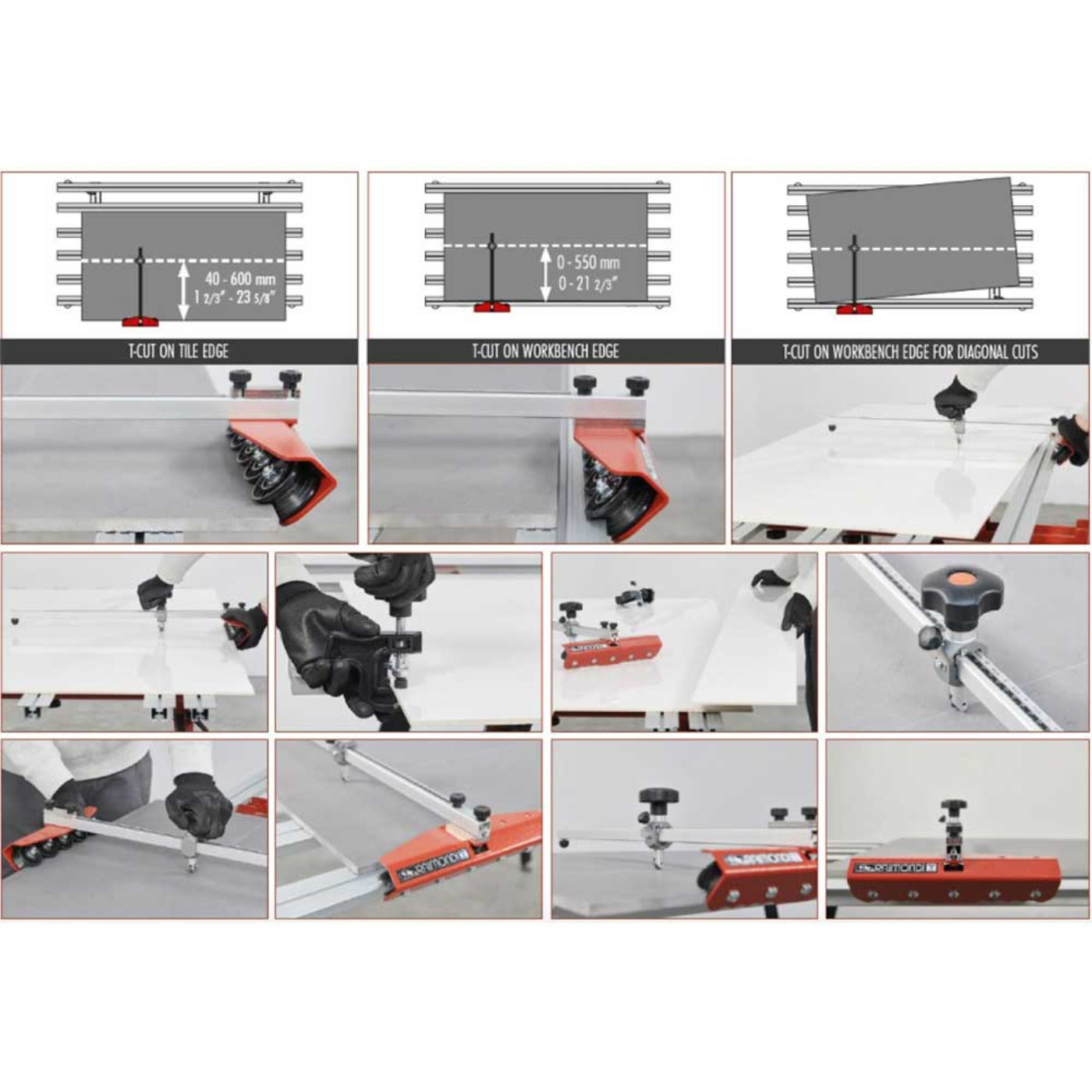

• For parallel cuts by placing the wheels on the edge of the tile
• For diagonal cuts by placing the wheels on the edge of the work bench
• Provides unlimited cutting length on the edge of tile
• Incision wheel Ø 5/8” (16 mm) mounted on a hardened steel pin with two ball bearings
• Metric / Imperial ruler showing the cutting width
• Body is equipped with 5 wheels to allow an accurate incision on the entire length of the tile, especially on entering and exiting (start & end incision)
• Includes: cutting plier for slabs with 1/8" - 1/2" (3 - 12 mm) thickness


What our Experts Think

• Designed for large-format tile precision
  Purpose-built for scoring and cutting porcelain slabs and large tiles, delivering clean, accurate cuts across modern oversized materials.
• Unlimited cutting length capability
  Operates along the tile edge, allowing virtually unlimited cutting length, ideal for long slabs and continuous cuts.
• Compact and highly portable
  Lightweight (~2.1 kg) and compact design makes it easy to transport, store, and use directly on-site without bulky equipment.
• Smooth, accurate scoring system
  Equipped with a 16 mm scoring wheel and ball bearings, ensuring consistent, precise scoring with minimal effort.
• Versatile cutting options
  Supports parallel and diagonal cuts by working along tile edges or workbench edges, giving flexibility for different layouts.
• Wide cutting range for flexibility
  Handles cut widths up to 600 mm (tile edge) and 550 mm (bench edge), covering most large-format installation needs.
• Efficient breaking with included pliers
  Comes with progressive pressure breaking pliers, improving control and reducing tile breakage risk during snapping.
• Stable multi-wheel guidance system
  Five-wheel design maintains stability across the entire cut, especially at entry and exit points for cleaner results.
• Best for professional tile installers
  Ideal for contractors working with large-format porcelain slabs, where portability, precision, and efficiency are critical.

Q&A

Q: What is the Raimondi T-CUT Tile Cutter?
A: A lightweight, professional manual cutter designed for scoring and snapping large-format porcelain tiles and slabs with precision.

Q: What tile sizes can it handle?
A: It offers unlimited cutting length and can cut widths up to 600 mm (23.6"), making it ideal for large-format tiles.

Q: What tile thickness is supported?
A: Suitable for tiles ranging from 3 mm to 12 mm thick, covering most porcelain and ceramic slabs.

Q: How does the cutting system work?
A: The tool runs along the tile edge or workbench edge, using a 16 mm scoring wheel and smooth multi-wheel trolley for accurate, continuous scoring.

Q: Can it perform diagonal cuts?
A: Yes, it supports both parallel and diagonal cuts by adjusting its position on the tile or work surface.

Q: What makes it precise?
A: A 5-wheel guided system and dual-bearing scoring wheel ensure smooth movement and consistent scoring from start to finish.

Q: Is it portable for job sites?
A: Yes, weighing around 2.1 kg (≈4.6 lbs), it’s compact and easy to transport between projects.

Q: What’s included with the cutter?
A: Comes with a breaking plier for controlled snapping and a metric/imperial ruler for accurate measurements.

Q: Who is this tile cutter best for?
A: Ideal for professional tile installers and contractors working with large-format porcelain slabs.

Maintenance Tips

• Clean after each use: Wipe off tile dust and debris from wheels, ruler, and body to maintain smooth scoring accuracy.
• Maintain scoring wheel: Inspect the Ø16 mm cutting wheel regularly and replace if worn to ensure clean, precise cuts.
• Keep bearings smooth: Lightly lubricate wheel bearings to preserve effortless glide and consistent scoring pressure.
• Check alignment & ruler: Ensure the adjustable measuring guide stays straight and calibrated for accurate width cuts.
• Clean pliers after use: Remove grout/tile residue from breaking pliers to maintain proper pressure application.
• Avoid excessive force: Use steady pressure while scoring to prevent premature wear on wheels and components.
• Store properly: Keep the lightweight unit dry and protected to avoid corrosion and damage.
• Inspect wheels & rollers: Ensure all 5 guide wheels are clean and rolling freely for accurate full-length cuts.
